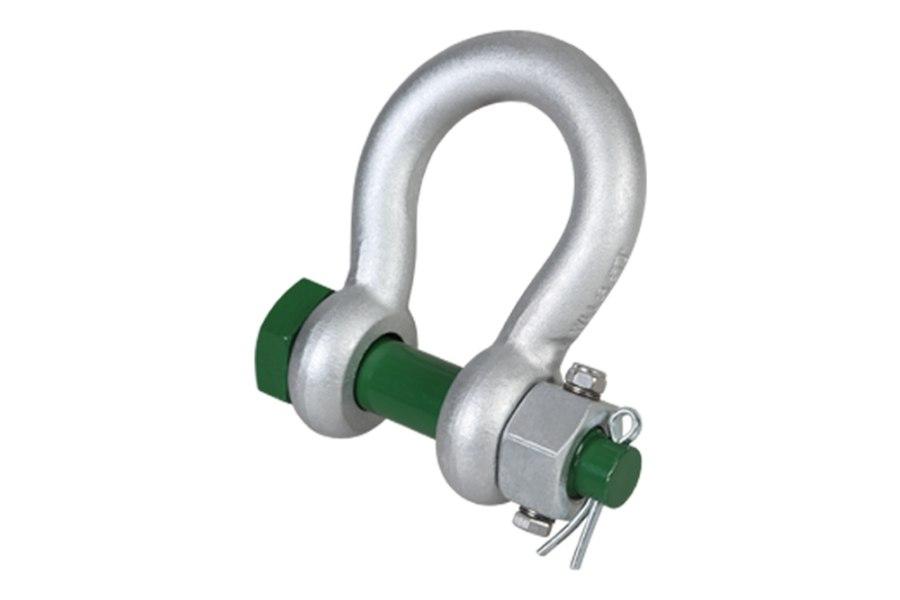

Green Pin Bow Shackle with Safety Bolt and Fixed Nut

The Green Pin Bow Shackle FN is a bow shackle with a safety bolt and a fixed nut. The Green Pin Bow Shackle FN offers a triple safety due to the split pin, safety bolt and fixed nut. The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock washers. When the load is dynamic or can be exposed to extreme vibrations the GreenPin Bow Shackle FN is thus a top choice. Of course, the Green Pin Bow Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The shackle is suitable for both one-leg and multi-leg systems. It is available in a range with a working load limit from 2 up to 85 ton.

• Triple safety (split pin, safety bolt, fixed nut)
• Top choice when the load is dynamic or exposed to extreme vibrations
• Conforms to wide range of certifications (e.g. DNV GL)
• Suitable for both one-leg and multi-leg systems
• Product Code: G-4143
• Material: bow and pin high tensile steel, Grade 6, quenched and tempered
• Safety Factor: MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: -40 Celcius up to +200 Celcius


Available in the following sizes



Item#	Size	WLL
GPGHMB13FN	1/2"	2 Ton
GPGHMB50FN	2"	35 Ton
GPGHMB16FN	5/8"	3.25 Ton
GPGHMB19FN	3/4"	4.75 Ton
GPGHMB22FN	7/8"	6.5 Ton
GPGHMB25FN	1"	8.5 Ton
GPGHMB28FN	1-1/8"	9.5 Ton
GPGHMB32FN	1-1/4"	12 Ton
GPGHMB35FN	1-3/8"	13.5 Ton
GPGHMB38FN	1-1/2"	17 Ton
GPGHMB45FN	1-3/4"	25 Ton
GPGHMB57FN	2-1/4"	42.5 Ton
GPGHMB65FN	2-1/2"	55 Ton
GPGHMB75FN	3"	85 Ton
