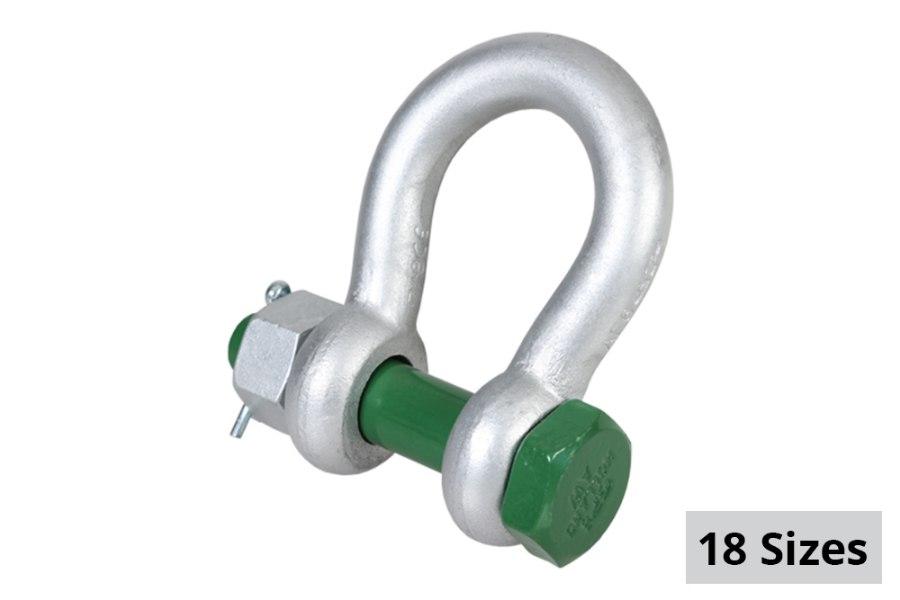

Green Pin Bow Shackle with Safety Bolt

The Green Pin Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin Bow Shackle BN. Of course, the Green Pin Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.

• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Suitable for both one-leg and multi-leg systems
• Conforms to wide range of certifications
• Product Code: G-4163
• Material: bow and pin high tensile steel, Grade 6, quenched and tempered
• Safety Factor: MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: -40°C up to +200°C

  Available in the following sizes



  Item#	Size	WLL
  GPGHMB10	3/8"	1 Ton
  GPGHMB13	1/2"	2 Ton
  GPGHMB50	2"	35 Ton
  GPGHMB16	5/8"	3.25 Ton
  GPGHMB19	3/4"	4.75 Ton
  GPGHMB06	1/4"	.5 Ton
  GPGHMB08	5/16"	.75 Ton
  GPGHMB11	7/16"	1.5 Ton
  GPGHMB28	1-1/8"	9.5 Ton
  GPGHMB22	7/8"	6.5 Ton
  GPGHMB25	1"	8.5 Ton
  GPGHMB32	1-1/4"	12 Ton
  GPGHMB35	1-3/8"	13.5 Ton
  GPGHMB38	1-1/2"	1 1/2"
  GPGHMB45	1-3/4"	25 Ton
  GPGHMB57	2-1/4"	42.5 Ton
  GPGHMB65	2-1/2"	55 Ton
  GPGHMB75	3"	85 Ton
