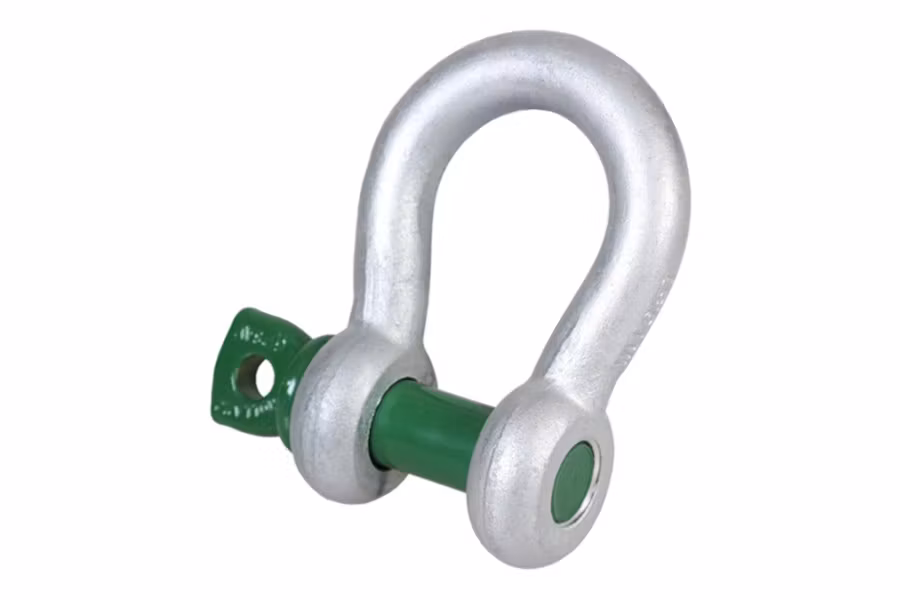

Green Pin Bow Shackle with Screw Collar Pin

The Green Pin Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.

• Screw Pin for Quick Assembly
• Galvanization assures long term durability
• Suitable for both one-leg and multi-leg systems
• Conforms to wide range of certifications
• Material: bow and pin high tensile steel, Grade 6, quenched and tempered
• Safety Factor: MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: 40°C up to +200°C

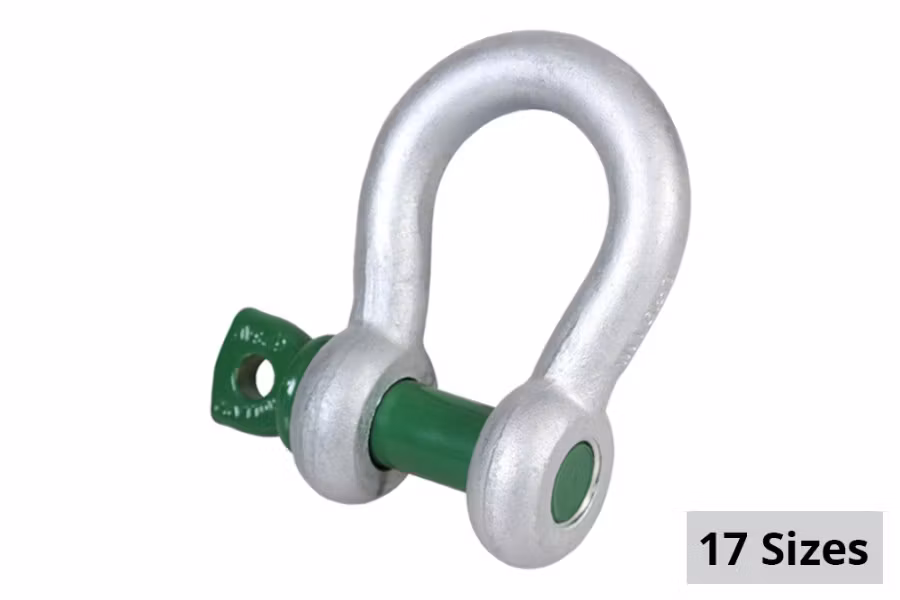

  Available in the following sizes



  Item#	Size	WLL
  GPGHBB10	3/8"	1 Ton
  GPGHBB13	1/2"	2 Ton
  GPGHBB50	2"	35 Ton
  GPGHBB16	5/8"	3.25 Ton
  GPGHBB19	3/4"	4.75 Ton
  GPGHBB05	3/16"	.33 Ton
  GPGHBB06	1/4"	.5 Ton
  PGHBB08	5/16"	.75 Ton
  GPGHBB11	7/16"	1.5 Ton
  GPGHBB28	1-1/8"	9.5 Ton
  GPGHBB22	7/8"	6.5 Ton
  GPGHBB25	1"	8.5 Ton
  GPGHBB32	1-1/4"	12 Ton
  GPGHBB35	1-3/8"	13.5 Ton
  GPGHBB38	1-1/2"	17 Ton
  GPGHBB45	1-3/4"	25 Ton
  GPGHBB65	2-1/2"	55 Ton
