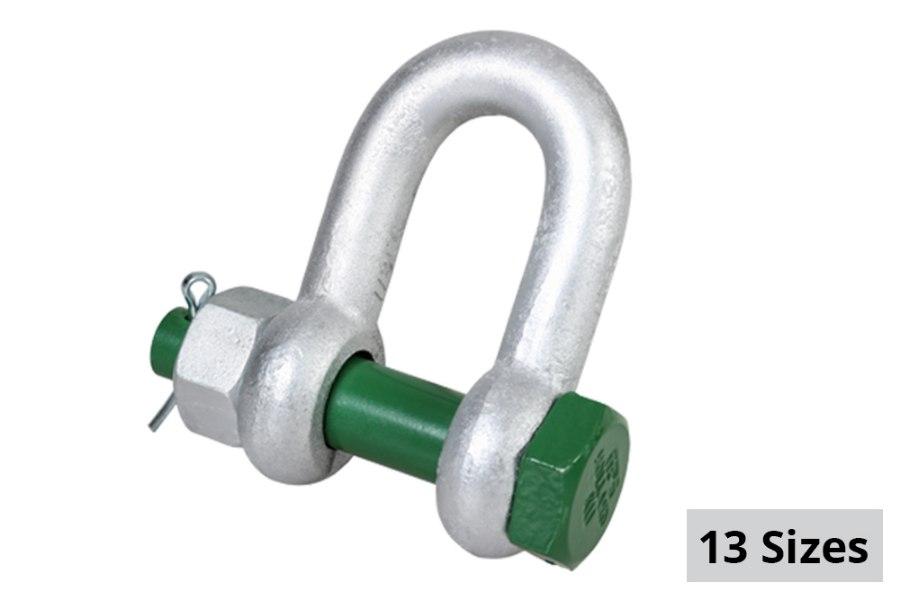

Green Pin Dee Shackle with Safety Bolt

The Green Pin Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin Dee Shackle BN is suitable for one-leg lifting systems only and is available in a range with a working load limit from 2 up to 85 ton.

• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Suitable for one-leg systems only
• Conforms to wide range of certifications (e.g. DNV GL)
• Product Code: G-4153
• Material: bow and pin high tensile steel, Grade 6, quenched and tempered
• Safety Factor: MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: -40C up to +200C

  Available in the following sizes



  Item #	Size	WLL
  GPGDMB13	1/2"	2 Ton
  GPGDMB16	5/8"	3.25 Ton
  GPGDMB19	3/4"	4.75 Ton
  GPGDMB28	1-1/8"	9.5 Ton
  GPGDMB22	7/8"	6.5 Ton
  GPGDMB25	1"	8.5 Ton
  GPGDMB32	1-1/4"	12 TON
  GPGDMB35	1-3/8"	13.5 TON
  GPGDMB38	1-1/2"	17 TON
  GPGDMB45	1-3/4"	25 TON
  GPGDMB50	2"	35 TON
  GPGDMB65	2-1/2"	55 TON
  GPGDMB75	3"	85 TON
