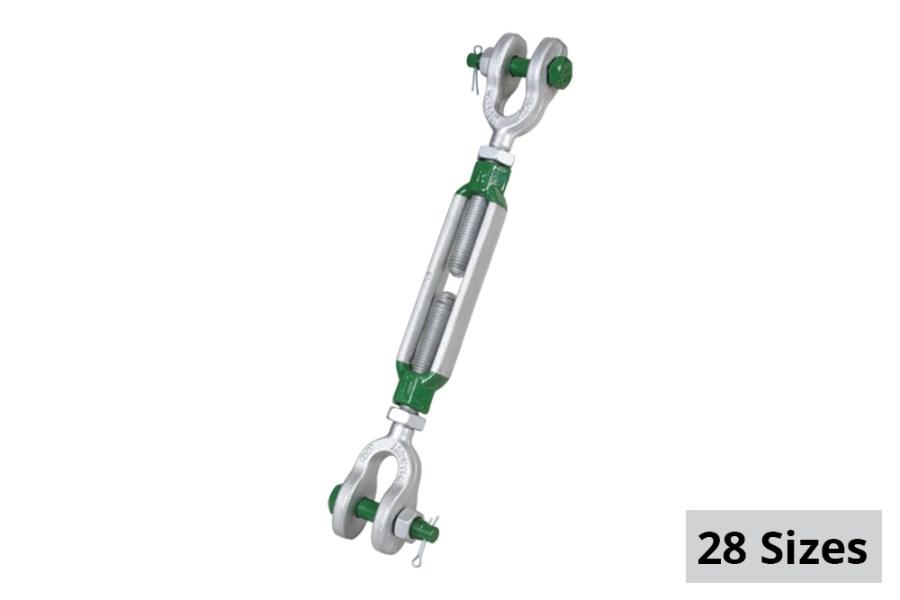

Green Pin Jaw-Jaw Turnbuckle with Safety Bolt

The Green Pin JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt, generally to ASTM F1145-92. One of the unique features of Green Pin Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin JJ Turnbuckle BN is available in a range with a diameter thread of 1/2" (take up of 12") up to 1 3/4" (take up of 18").

• Can be used for both lifting and lashing
• Double safety (cotter pin & safety bolt)
• Reliable Green Pin? quality and support
• Turnbuckle with jaw-jaw end-fitting and safety bolt
• Product Code: G-6323
• Material: drop forged high tensile steel SAE 1035 or 1045
• Safety Factor: MBL equals 5 x WLL
• Finish: hot dipped galvanized
• Standard: generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b

  Available in the following sizes



  Item #	Size	Take Up
  GP-SSGPGG1006	3/8"	6" Take Up
  GP-SSGPGG1206	1/2"	6" Take Up
  GP-SSGPGG1209	1/2"	9" Take Up
  GP-SSGPGG1212	1/2"	12" Take Up
  GP-SSGPGG1606	5/8"	6" Take Up
  GP-SSGPGG1609	5/8"	9" Take Up
  GP-SSGPGG1612	5/8"	12" Take Up
  GP-SSGPMBGG1906	3/4"	6" Take Up
  GP-SSGPMBGG1909	3/4"	9" Take Up
  GP-SSGPMBGG1918	3/4"	18" Take Up
  GP-SSGPMBGG2212	7/8"	12" Take Up
  GP-SSGPMBGG2218	7/8"	18" Take Up
  GP-SSGPMBGG2506	1"	6" Take Up
  GP-SSGPMBGG2512	1"	12" Take Up
  GP-SSGPMBGG2518	1"	18" Take Up
  GP-SSGPMBGG2524	1"	24" Take Up
  GP-SSGPMBGG3212	1-1/4"	12" Take Up
  GP-SSGPMBGG3218	1-1/4"	18" Take Up
  GP-SSGPMBGG3224	1-1/4"	24" Take Up
  GP-SSGPMBGG3812	1-1/2"	12" Take Up
  GP-SSGPMBGG3818	1-1/2"	18" Take Up
  GP-SSGPMBGG3824	1-1/2"	24" Take Up
  GP-SSGPMBGG4518	1-3/4"	18" Take Up
  GP-SSGPMBGG4524	1-3/4"	24" Take Up
  GP-SSGPMBGG5024	2"	24" Take Up
  GP-SSGPMBGG6424	2 -1/2"	24" Take Up
