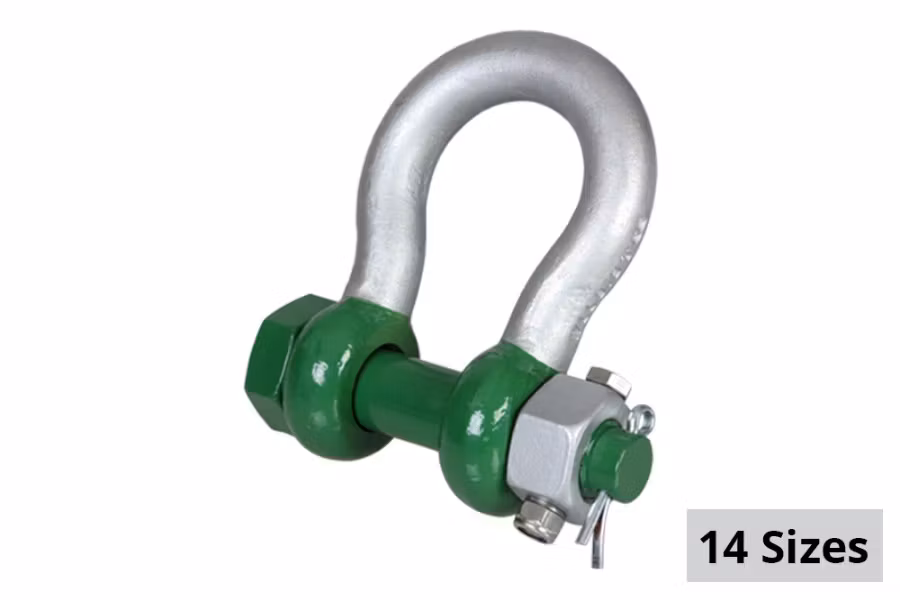

Green Pin Polar Bow Shackle with Safety Bolt and Fixed Nut

The Green Pin Polar Bow Shackle FN is a bow shackle with a safety bolt and fixed nut that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions; down to -60C (-76F). The shackle is the perfect choice when the load is dynamic or exposed to extreme vibrations because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut of the Green Pin Polar Bow Shackle FN is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock washers. Long-term durability is assured due to the galvanization of the Green Pin Polar Bow Shackle FN. The shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin Polar Bow Shackle FN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 85 ton.

• Perfect for use in low-temperature situations (down to -60 C / -76 F)
• Triple safety (split pin, safety bolt, fixed nut)
• Top choice when the load is dynamic or exposed to extreme vibrations
• Suitable for both one-leg and multi-leg systems
• Product Code: G-5143
• Material: bow and pin alloy steel, Grade 8, quenched and tempered
• Safety Factor: MBL equals 7 x WLL, for shackles with WLL 55 and 85 tons the MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: -60C up to +200C
• Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A

Available in the following sizes

Item #	Size	WLL
GP-POGHMB28FN	1-1/8"	9.5 Ton
GP-POGHMB57FN	2-1/4"	42.5 Ton
GP-POGHMB32FN	1-1/4"	12 Ton
GP-POGHMB35FN	1-3/8"	13.5 Ton
GP-POGHMB13FN	1/2"	2 Ton
GP-POGHMB65FN	2-1/2"	55 Ton
GP-POGHMB38FN	1-1/2"	17 Ton
GP-POGHMB16FN	5/8"	3.25 Ton
GP-POGHMB45FN	1-3/4"	25 Ton
GP-POGHMB19FN	3/4"	4.75 Ton
GP-POGHMB22FN	7/8"	6.5 Ton
GP-POGHMB25FN	1"	8.5 Ton
GP-POGHMB50FN	2"	35 Ton
GP-POGHMB75FN	3"	85 Ton
