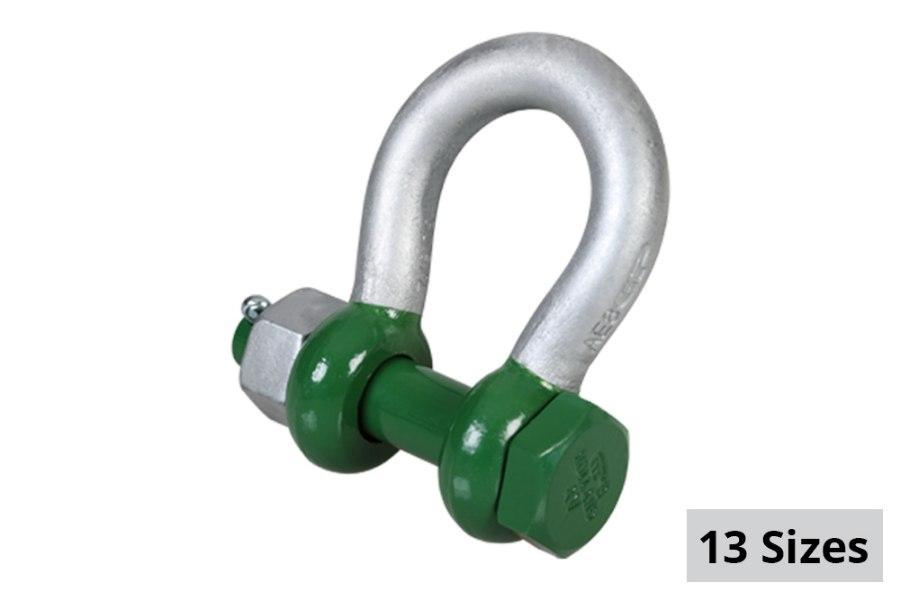

Green Pin Polar Bow Shackle with Safety Bolt

The Green Pin Polar Bow Shackle BN is a bow shackle with a safety bolt that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions; down to -60C (-76F). The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin Polar Bow Shackle BN. Of course, the Green Pin Polar Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin Polar Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.

• Perfect for use in low-temperature situations (down to -60C / -76F)
• Safety bolt: perfect for when rotation of the pin is a risk
• Conforms to wide range of certifications (e.g. DNV)
• Suitable for both one-leg and multi-leg systems
• Product Code: G-5163
• Material: bow and pin alloy steel, Grade 8, quenched and tempered
• Safety Factor: MBL equals 7 x WLL, for shackles with WLL 55 and 85 tons the MBL equals 6 x WLL
• Finish: hot dipped galvanized
• Temp Range: -60C up to +200C
• Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A

  Available in the following sizes



  Item #	Size	WLL
  GP-POGHMB13	1/2"	2 Ton
  GP-POGHMB50	2"	35 Ton
  GP-POGHMB16	5/8"	3.25 Ton
  GP-POGHMB19	3/4"	4.75 Ton
  GP-POGHMB28	1-1/8"	9.5 Ton
  GP-POGHMB22	7/8"	6.5 Ton
  GP-POGHMB25	1"	8.5 Ton
  GP-POGHMB32	1-1/4"	12 Ton
  GP-POGHMB35	1-3/8"	13.5 Ton
  GP-POGHMB38	1-1/2"	17 Ton
  GP-POGHMB45	1-3/4"	25 Ton
  GP-POGHMB65	2-1/2"	55 Ton
  GP-POGHMB75	3"	85 Ton
