Green Pin Super Bow Shackle with Safety Bolt

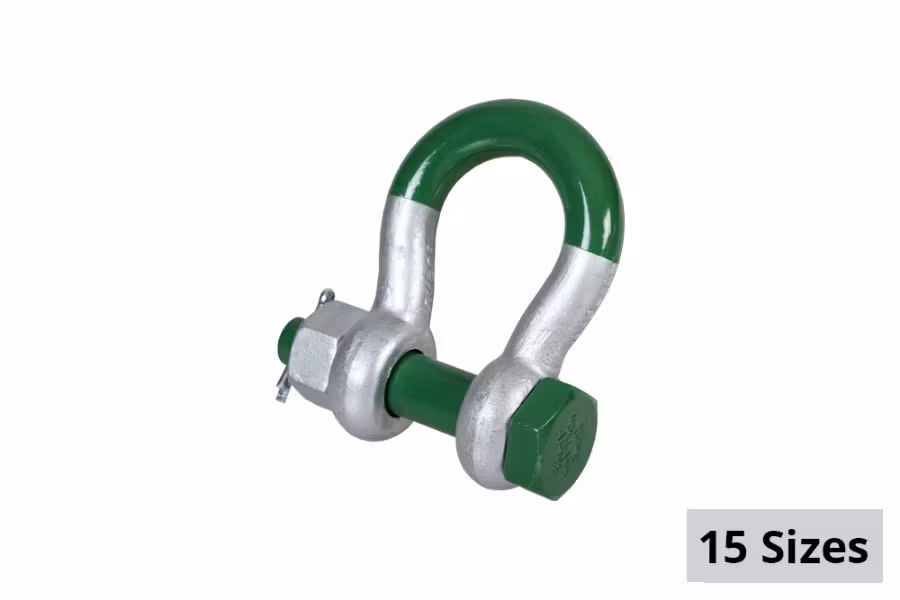

The Green Pin Super Bow Shackle BN is a grade 8 bow shackle with a safety bolt. Handling of the Green Pin Super Bow Shackle BN is easier due to the smaller size and weight (with an equal working load limit when compared to non-Super products). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread. The Green Pin Super Bow Shackle BN is available in a range with a working load limit from 3.3 up to 175t (note: sizes 150t and 175t have a round headed bolt).

• Easier handling due to smaller size and weight (with equal WLL)
• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Conforms to wide range of certifications (e.g. DNV GL)
• Product Code: G-5263
• Material: bow and pin alloy steel, Grade 8, quenched and tempered
• Safety Factor: MBL equals 5 x WLL
• Finish: hot dipped galvanized (175 ton shackle is painted)
• Temp Range: -20 Celcius up to +200 Celcius
• Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B
• Note: Shackles with WLL 150 t and 175 t have a round headed bolt

  Available in the following sizes



  Item #	Size	WLL
  GP-SUGHMB28	1-1/8"	15 Ton
  GP-HDSUHM0175	4-1/8"	175 Ton
  GP-SUGHMB32	1-1/4"	18 Ton
  GP-SUGHMB35	1-3/8"	21 Ton
  GP-SUGHMB38	1-1/2"	30 Ton
  GP-SUGHMB13	1/2"	3.3 Ton
  GP-SUGHMB70	2-1/2"	85 Ton
  GP-SUGHMB16	5/8"	5 Ton
  GP-SUGHMB45	1-3/4"	40 Ton
  GP-HDSUHM0150	3-3/4"	150 Ton
  GP-SUGHMB22	7/8"	9.5 Ton
  GP-SUGHMB25	1"	12.5 Ton
  GP-SUGHMB57	2"	55 Ton
  GP-SUGHMB83	3"	120 Ton
