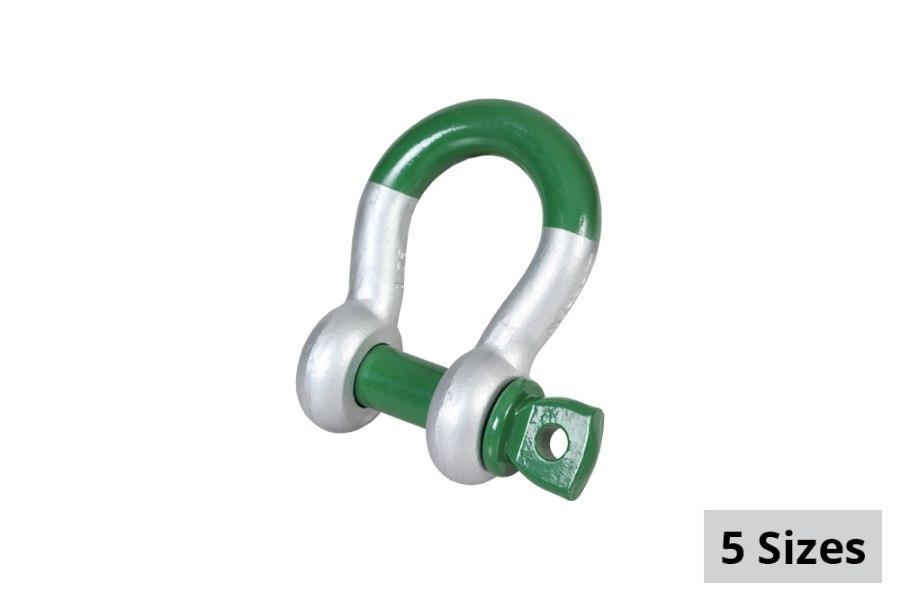

Green Pin Super Bow Shackle with Screw Pin

The Green Pin Super Bow Shackle SC is a grade 8 bow shackle with screw pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Handling of the Green Pin Super Bow Shackle SC is easier due to its smaller size and weight (with an equal working load limit when compared to non-Super products). Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized because the chamber in the shackle eye hides the screw thread. The Green Pin Super Bow Shackle SC is available in a range with a working load limit from 3.3 up to 12.5t.

• Easier handling due to smaller size and weight (with equal WLL)
• Screw pin for quick (dis)assembly
• Galvanization assures long-term durability
• Reliable Green Pin quality and support
• Product Code: G-5261
• Material: bow and pin alloy steel, Grade 8, quenched and tempered
• Safety Factor: MBL equals 5 x WLL
• Finish: hot dipped galvanized
• Temp Range: -20 Celcius up to +200 Celcius
• Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B

  Available in the following sizes



  Item#	Size	WLL
  GP-SUGHBB13	1/2"	3.3 TON
  GP-SUGHBB16	5/8"	5 TON
  GP-SUGHBB19	3/4"	7 TON
  GP-SUGHBB22	7/8"	9.5 TON
  GP-SUGHBB25	1"	12.5 TON
