Gunnebo GrabiQ Swivel Latch Hook LKN

Leave a Review

Shop all Gunnebo products

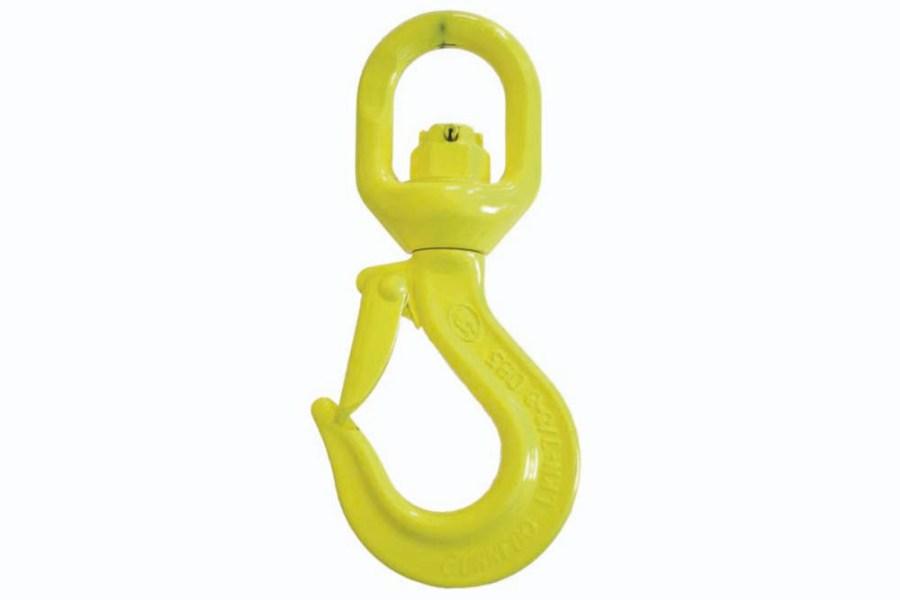

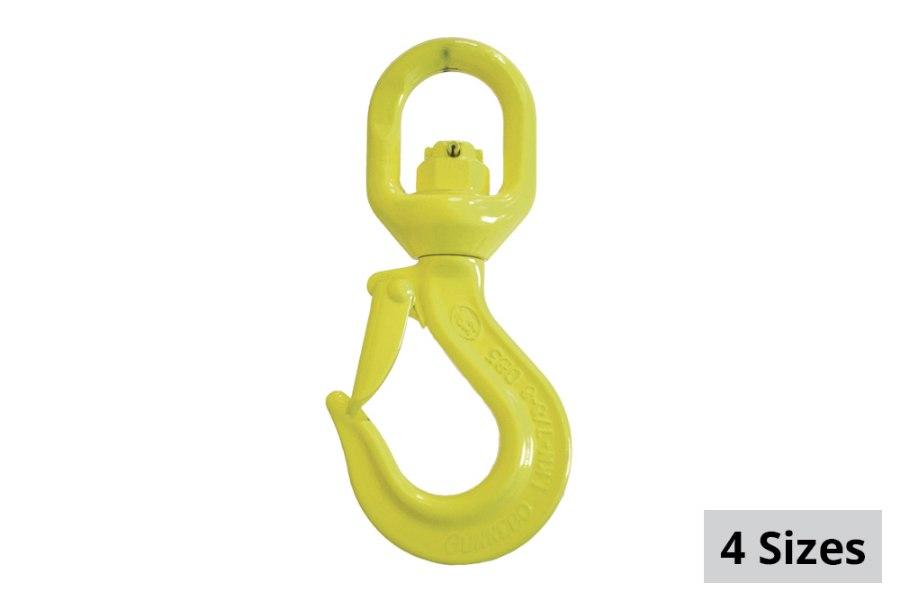

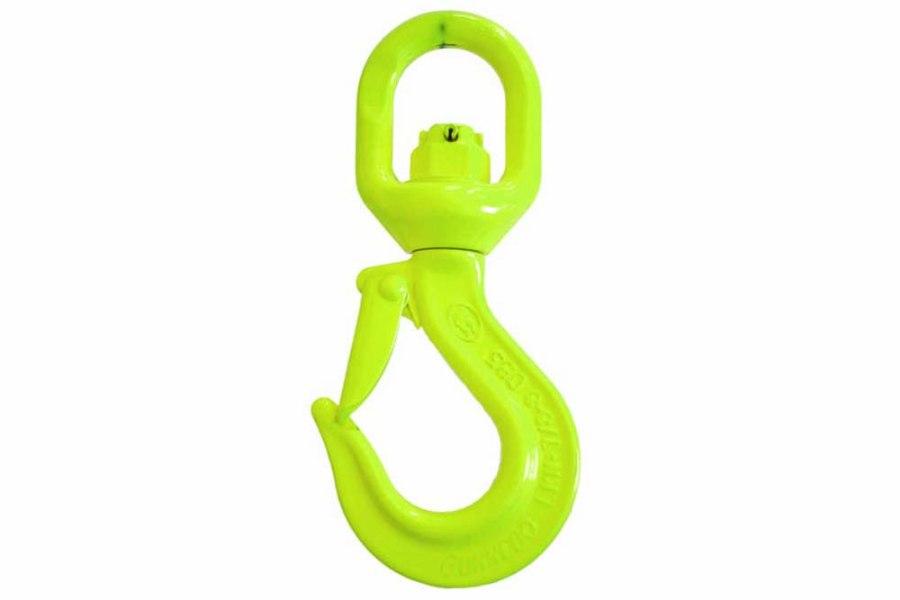

Picture of Gunnebo GrabiQ Swivel Latch Hook LKN

Choose SIZE *: 5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

SKU: GI-SWIVELHK-LKN

Price: $174.99–$429.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Imperial

Item #	GI-Z101345	GI-Z101346	GI-Z101347	GI-Z101348
Code	LKN-7/8-10	LKN-10-10	LKN-13-10	LKN-16-10
WLL lb*	5,700	8,800	15,000	22,600
For chain dim.	9/32, 5/16	3/8	1/2	5/8

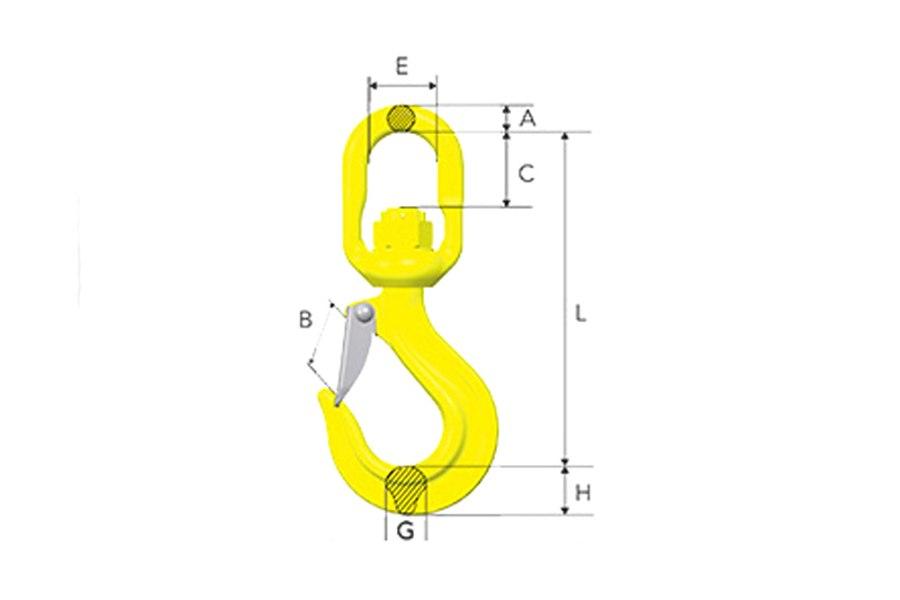

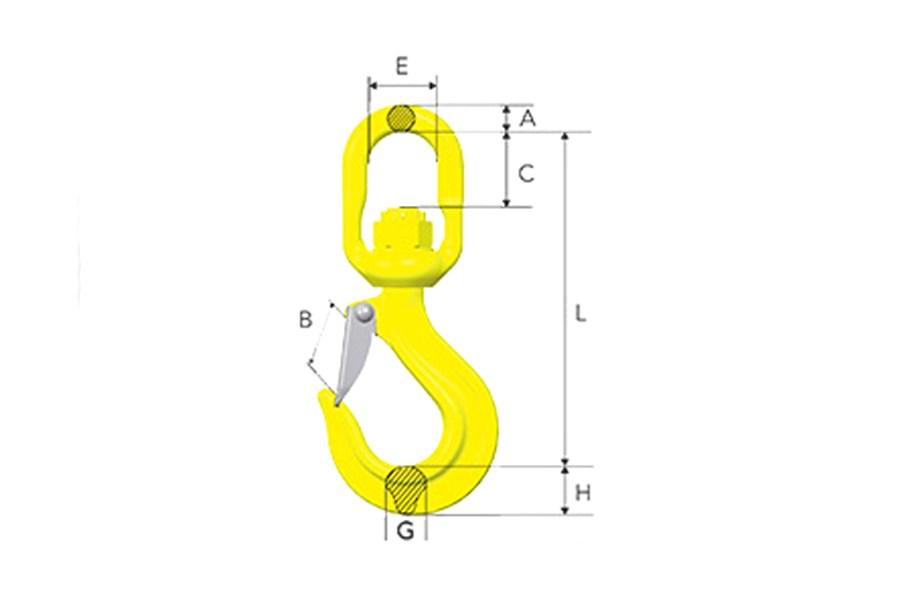

L	6.10	7.56	9.37	11.61
B	1.10	1.38	1.57	2.09
C	1.10	1.46	1.85	2.56
E	1.50	1.73	1.89	2.40
A	0.47	0.59	0.75	0.98
G	0.71	0.91	1.10	1.34
H	0.94	1.22	1.50	1.69
Weight lb	1.76	3.31	6.83	11.7
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z101345	GI-Z101346	GI-Z101347	GI-Z101348
Code	LKN-7/8-10	LKN-10-10	LKN-13-10	LKN-16-10
WLL tonnes*	2.6	4.0	6.8	10.3
For chain dim.	7, 8	10	13	16
L	155	192	238	295
B	28	35	40	53
C	28	37	47	65
E	38	44	48	61
A	12	15	19	25
G	18	23	28	34
H	24	31	38	43
Weight kg	24	1.5	3.1	5.3
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Size
GI-Z101345	Z101345	5/16" - 5,700 WLL
GI-Z101347	Z101347	1/2" - 15,000 WLL
GI-Z101348	Z101348	5/8" - 22,600 WLL
GI-Z101346	Z101346	3/8" - 8,800 WLL
