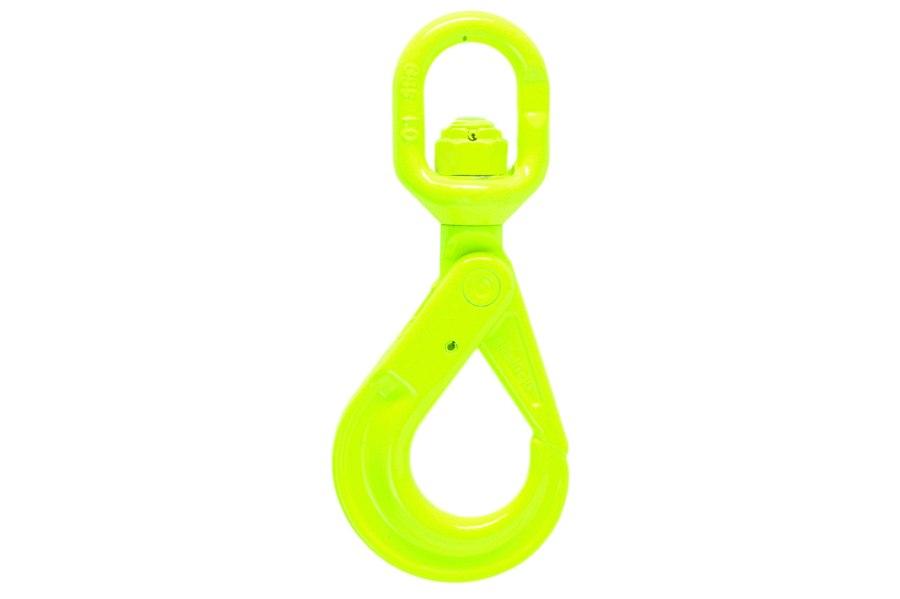

Gunnebo GrabiQ Swivel Safety Hook BKL

Item #	GI-Z101114	GI-Z101104	GI-Z101028	GI-Z101036	GI-Z101044	GI-Z101093
Code	BKL-6-10	BKL-7/8-10	BKL-10-10	BKL-13-10	BKL-16-10	BKL-18/20-10
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300
L	5.87	7.20	8.58	11.10	13.43	14.49
B	1.14	1.46	1.77	2.17	2.44	2.68
C	0.91	1.06	1.46	1.93	2.56	2.76
E	1.30	1.50	1.73	1.89	2.40	2.83
A	0.43	0.47	0.59	0.75	0.98	1.22
G	0.59	0.67	0.83	1.18	1.46	1.73
H	0.83	1.02	1.22	1.57	1.97	2.44
Weight lb	1.54	2.65	4.41	8.82	15.87	25.13

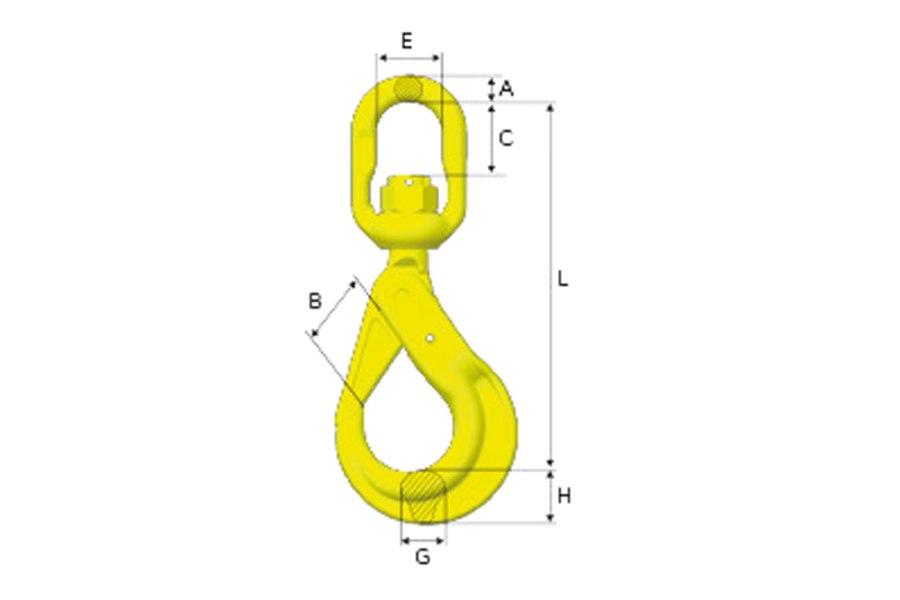

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Code

BKL-6-10

BKL-7/8-10

BKL-10-10

BKL-13-10

BKL-16-10

BKL-18/20-10

WLL lb*

3,306

5,700

8,800

15,000

22,600

35,300

L

5.87

7.20

8.58

11.10

13.43

14.49

B

1.14

1.46

1.77

2.17

2.44

2.68

C

0.91

1.06

1.46

1.93

2.56

2.76

E

1.30

1.50

1.73

1.89

2.40

2.83

A

0.43

0.47

0.59

0.75

0.98

1.22

G

0.59

0.67

0.83

1.18

1.46

1.73

H

0.83

1.02

1.22

1.57

1.97

2.44

Weight lb

1.54

2.65

4.41

8.82

15.87

25.13

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1.
All dimensions in inches.
