Gunnebo GrabiQ Swivel Safety Hook with Griplatch LKBK

Being able to adjust while knowing your load is safe is often a handy thing when working with overhead lifting. Luckily the Gunnebo GrabiQ Swivel Safety Hook with Griplatch LKBK comes with both a swivel and a grip latch. You’re able to adjust it up to 360 degrees even after attaching the load, ensuring that every job can go off without a hitch. Plus, this fatigue-tested hook can handle up to 22,600 lbs WLL, check the drop-down menu for more information.

The Gunnebo GrabiQ Swivel Safety Hook LKBK is grade 100, making it perfect for overhead lifting while also being 25 percent stronger than grade 80. It’s also forged with a heat number identification so that you can trace it back to the factory, batch and year it was manufactured in.

Making it even more durable is the self-locking griplatch with a recessed trigger. The self-locking nature of the latch makes it less likely to get damaged over time. With the recessed trigger, your trigger isn’t as likely to get broken by side impacts or being dragged along the ground. Finally, the griplatch provides a sturdier hold on your load.

• 4 sizes 5/16"-5/8"
• WLL: 5,700 lbs-22,600 lbs
• Safety factor 4:1
• Grade 100 approved for overhead lifting
• Heat number identification for traceability
• Approved by BG/DGUV
• Made of high-quality steel
• Recessed trigger
• Latch rotation stop
• Grip latch

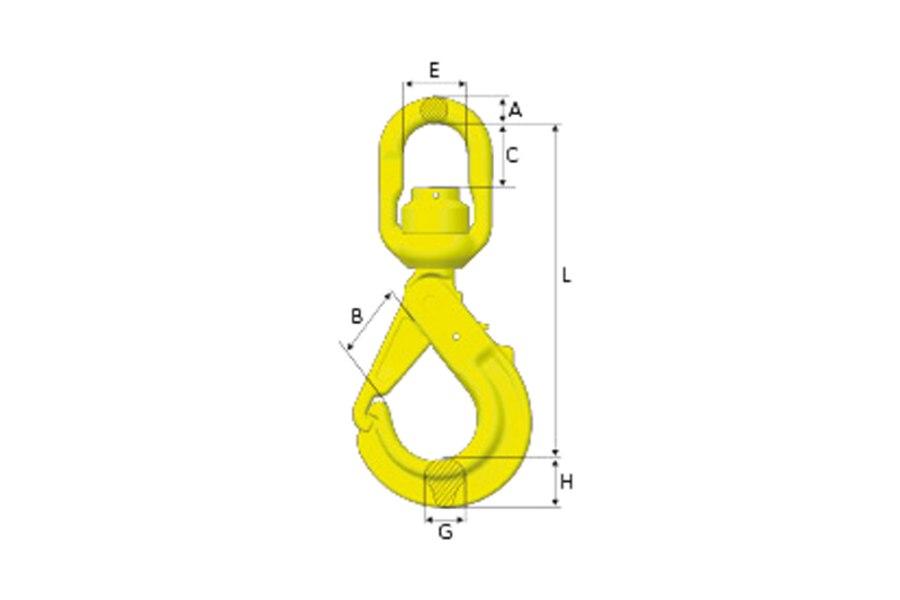

Imperial

Item #	GI-Z100980	GI-Z100962	GI-Z100997	GI-Z100999
Code	LKBK-7/8-10	LKBK-10-10	LKBK-13-10	LKBK-16-10
WLL lb*	5,700	8,800	15,000	22,600
L	6.93	8.39	10.28	12.72
B	1.46	1.85	2.09	2.68
C	1.06	1.38	1.69	2.40
E	1.50	1.73	1.89	2.40
A	0.47	0.59	0.75	0.98
G	0.79	0.87	1.14	1.18
H	0.87	1.14	1.50	1.77
Weight lb	2.43	4.19	7.94	13.67
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-Z100980	GI-Z100962	GI-Z100997	GI-Z100999
Code	LKBK-7/8-10	LKBK-10-10	LKBK-13-10	LKBK-16-10
WLL tonnes*	2.6	4.0	6.8	10.3
L	176	213	261	323
B	37	47	53	68
C	27	35	43	61
E	38	44	48	61
A	12	15	19	25
G	20	22	29	30
H	22	29	38	45
Weight kg	1.1	1.9	3.6	6.2
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.
