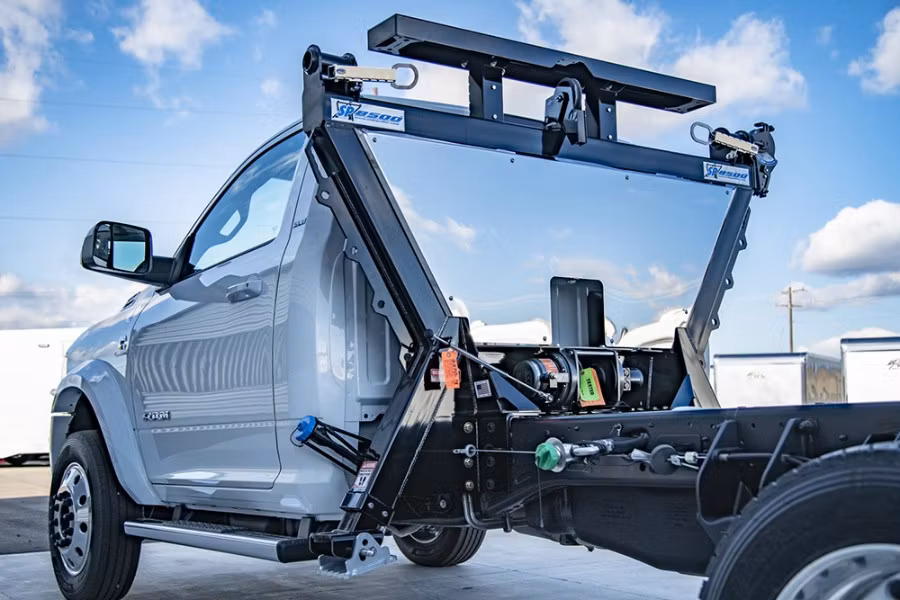

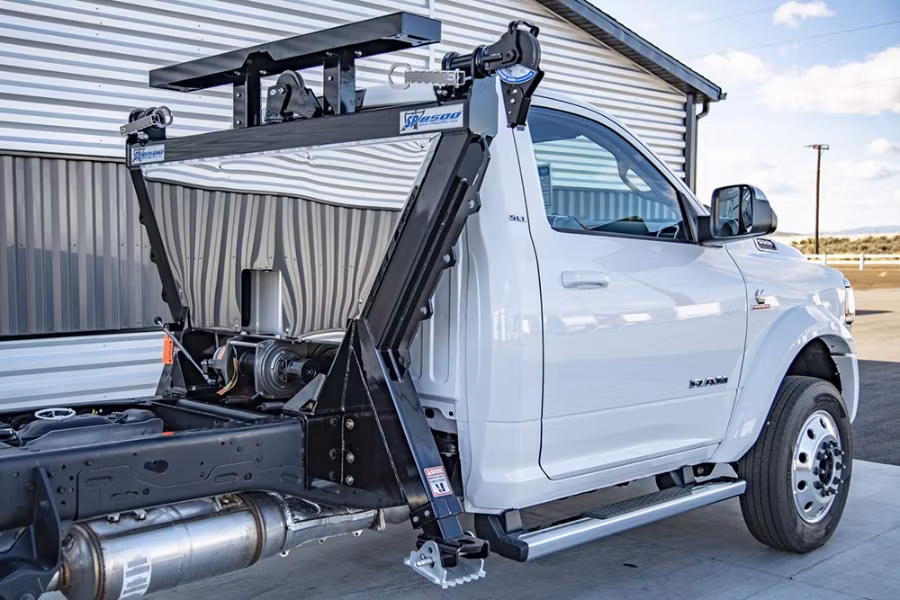

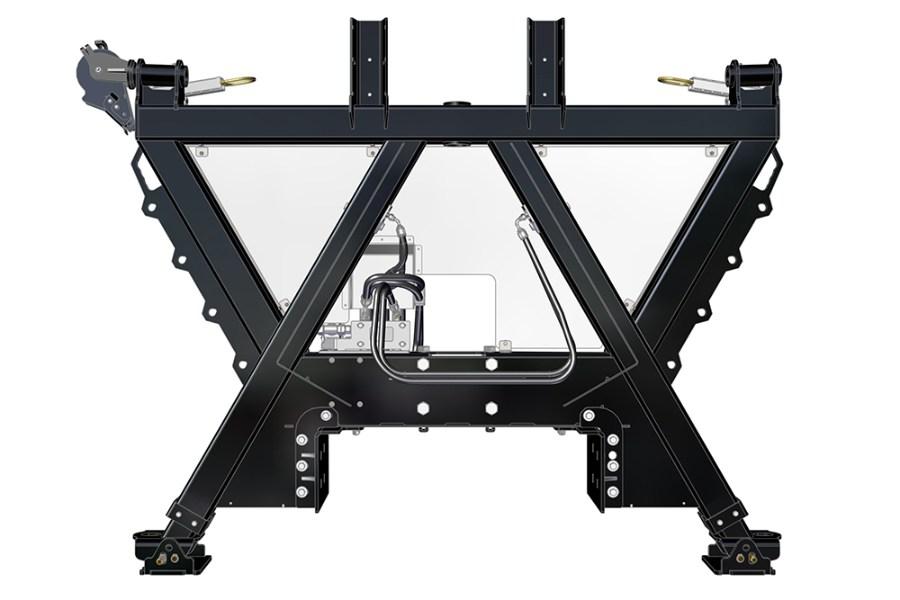

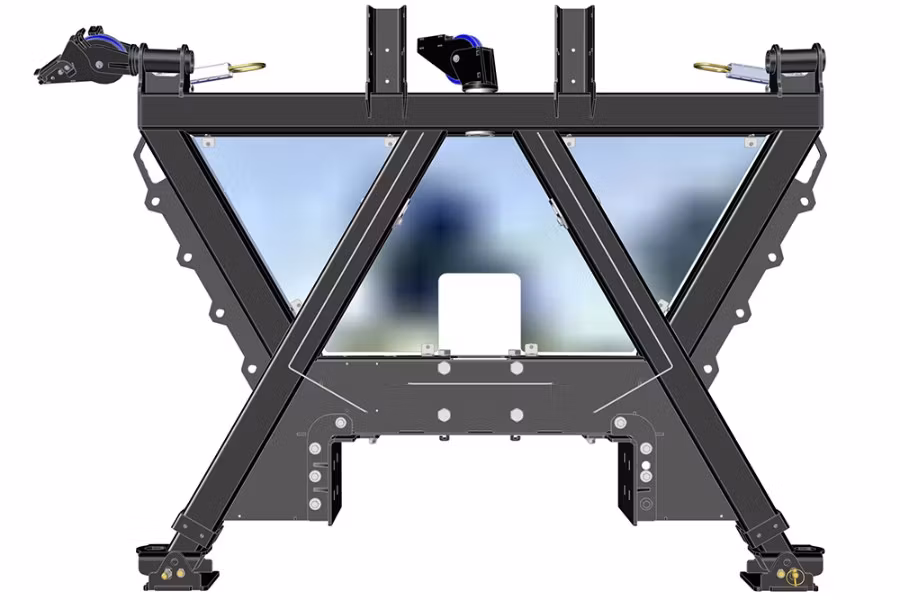

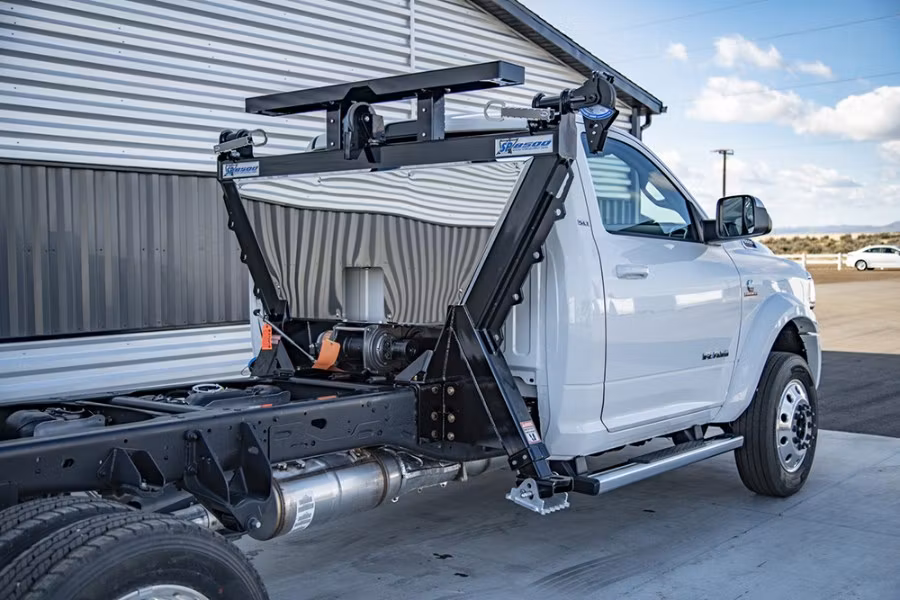

In the Ditch SP8500 Side Puller

The Number 1 Selling Brand of SidePullers in the World just added a new model. The all new SP8500 Side Puller was designed exclusively for the Dodge 4500/5500 2wd & 4wd Chassis, the International CV Series 2WD Chassis, as well as the Chevrolet 4500HD/5500HD 2WD Chassis. The SP8500 SidePuller is designed to work with chassis frame heights from 29"-33-3/4" tall making the SP8500 a perfect fit for the light medium duty market. The SP8500 fills that need for 4x2 & some 4x4 Chassis under 23,500 GVWR. When it comes to strength of design, the SP8500 is best in class in every aspect. No other Side puller will out pull, out work, or outperform the SP-Series line of Side Pullers by In The Ditch.

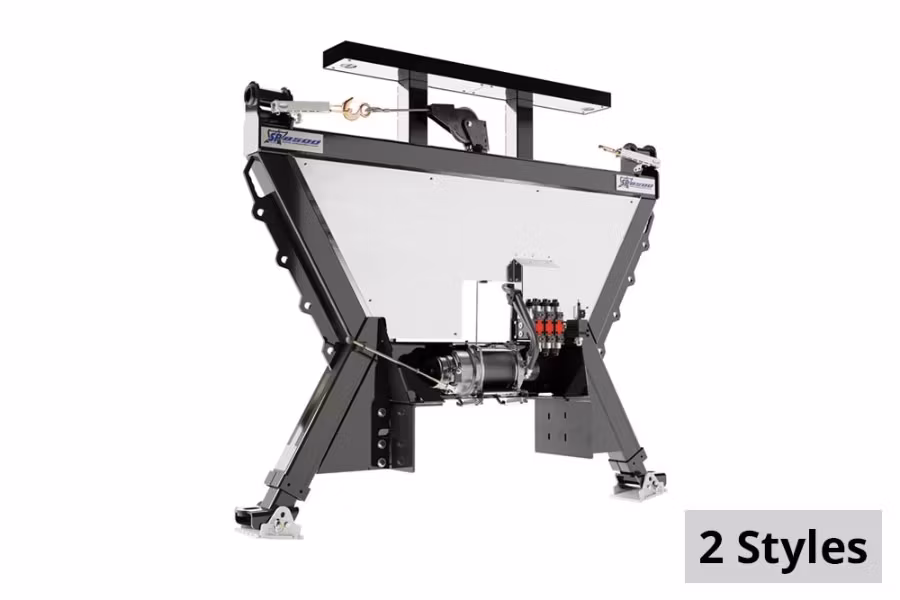

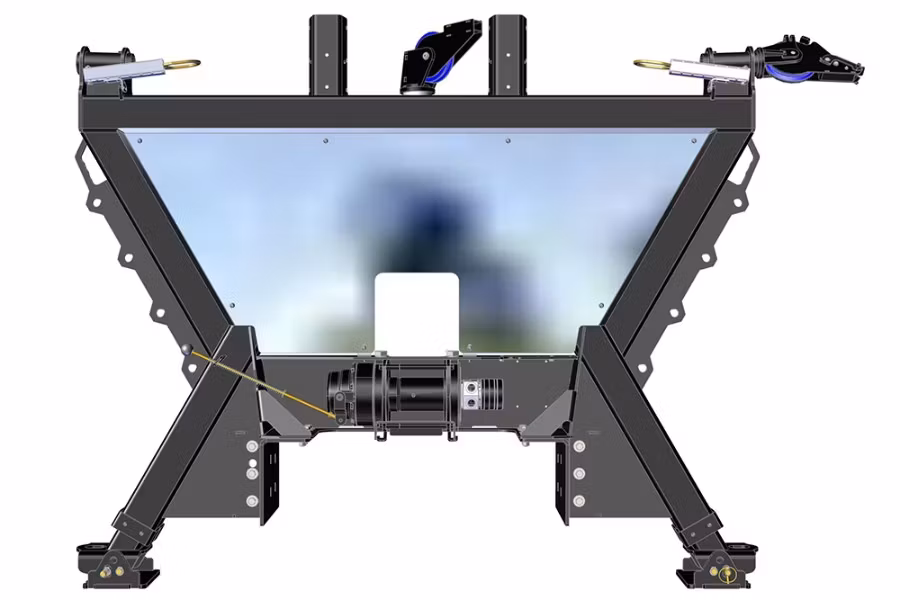

The Patented SP8500 (NON-Integrated) is designed for those who want a more customized installation. We provide you the SP8500 with everything except our Valve Body and Hydraulic Hoses, giving you the option of providing your own custom Hydraulic Controls. Typically, this application is for those who order their Car Carrier or Wrecker with Factory Installed Side Puller Controls.

• Optional Vehicle Specific Mounting Plates make installation much easier
• 3 new adjustable height light pylons, designed for the SP8500 . You can have a lightbar mounting height that is proportionate with the truck improving looks and aerodynamics of your truck

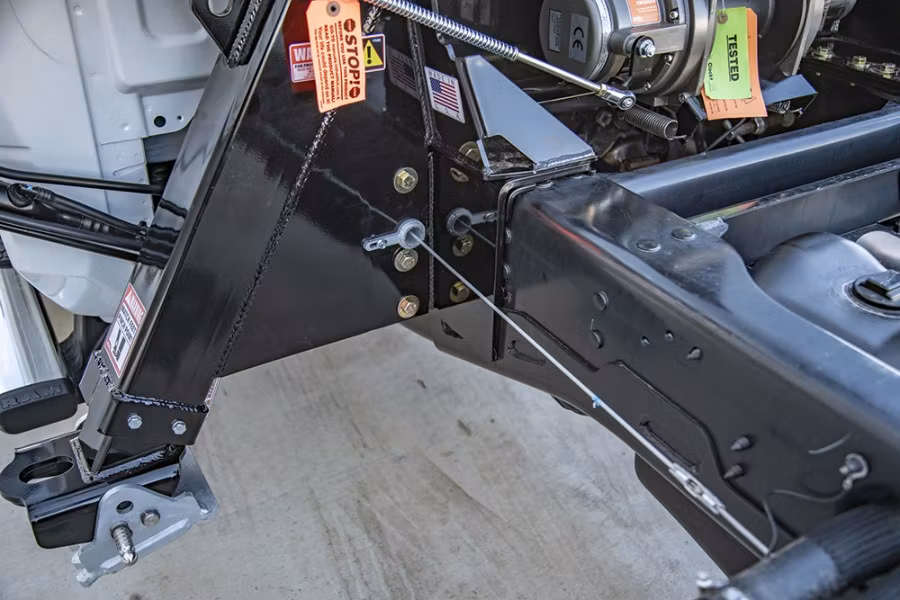

• New Stabilizer Leg gives more ground clearance when the leg is retracted while still maintaining full extension for those difficult recoveries
• Galvanized Stabilizer Foot Easily Converts from pavement Pad to Ground Penetrating Grouser
• Stainless Steel Pins prevent rust and make maintenance easier
• Winch Free Spool with Easy Reach Handle

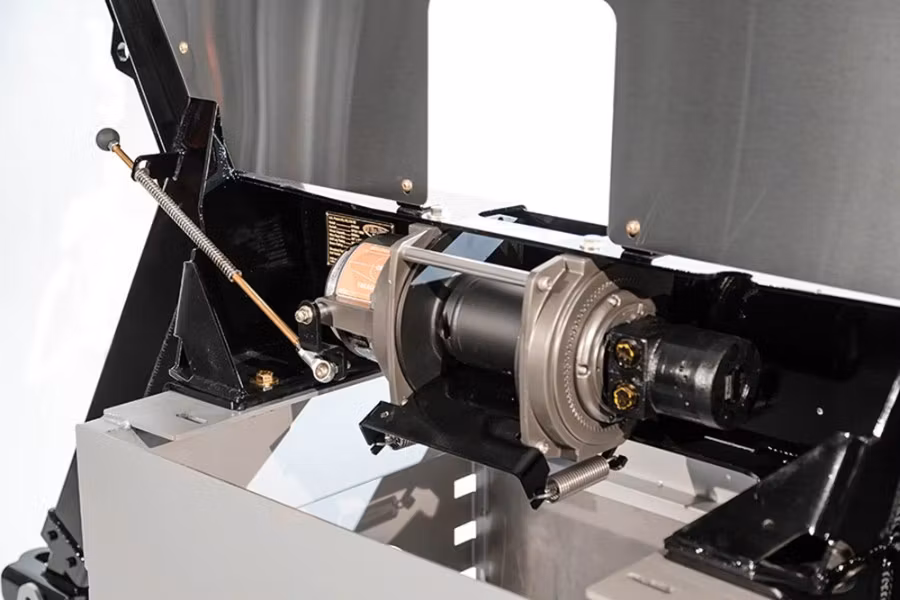

• Warn 9000 lb Planetary Winch with Tensioner and 100ft of 3/8 wire rope

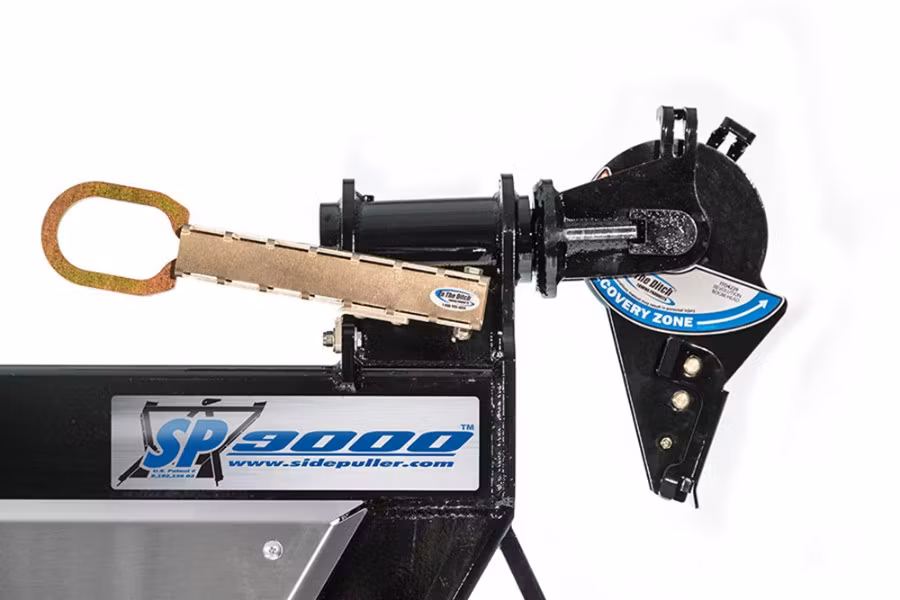

• Exclusive Removable Boom Head allows incredible recovery options
• Ability to Pull from Center of the unit or off the side
• 10 Anchor Points to anchor your Snatch Blocks for that perfect line angle
• Powder Coated the ITD Endurance Black Finish
• Stainless Steel Accent Panel with Built in LED Winch Light

SP8500 Ratings

• Boom: 9,000 lbs
• Stabilizer Leg (Each): 8,500 lbs
• Winch: 9,000 lbs
• Wire Rope: 3/8" x 100' Steel Core
• Weight: 950 lbs
• Patent Number: 8192135B2

Chassis Recommendation

• Chassis GVRW (Class 5, Class 6): 15,000-23,500 lbs
• Recommended Minimum Additional Cab-Axle Spacing (Carriers): 12"
• Recommended Minimum Additional Cab-Axle Spacing (Wreckers): 17"
• Minimum-Maximum Frame Height: 29"-33 3/4"
• Minimum-Maximum Frame Width - Adjustable Mounting Base Width: 33 3/4"-34 3/4"

ITD-4880 Standard Features (without Integrated Controls)

• 9,000 lb. WARN High Speed Planetary Winch
• 3/8" x 100' Steel Core Rope
• Winch Free Spool Handle (Easy Reach / Easy Pull)
• Winch Tensioner Plate
• (8) Eight Tie Back Points
• Endurance Powder Coat Black Finish
• Prepped for User to Supply Hydraulic Valve / Control System
• Stainless Steel Rear Panel
• Hydraulic Stabilizer Legs with Lock Valve Safety Features
• Self-Leveling Pavement Pads on Stabilizer Legs
• Fold Down Ground Penetrating Grousers on Stabilizer Legs
• Adjustable LightBar Mount
• Wire Routing System allows easy Wiring from Light Bar to Chassis
• Adjustable, Mounting System with Mounting Hardware
• Center Recovery Boom Head
• Outer Recovery Boom Head

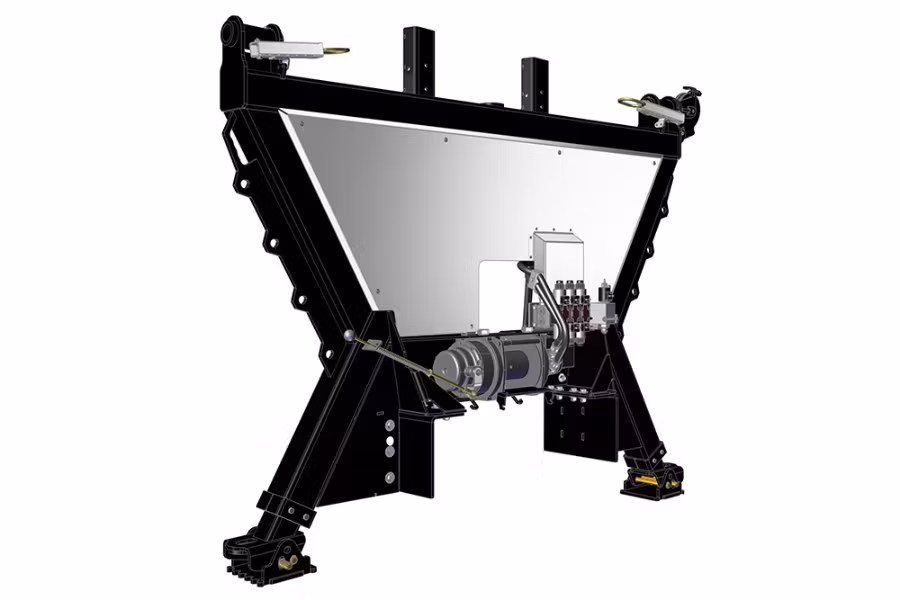

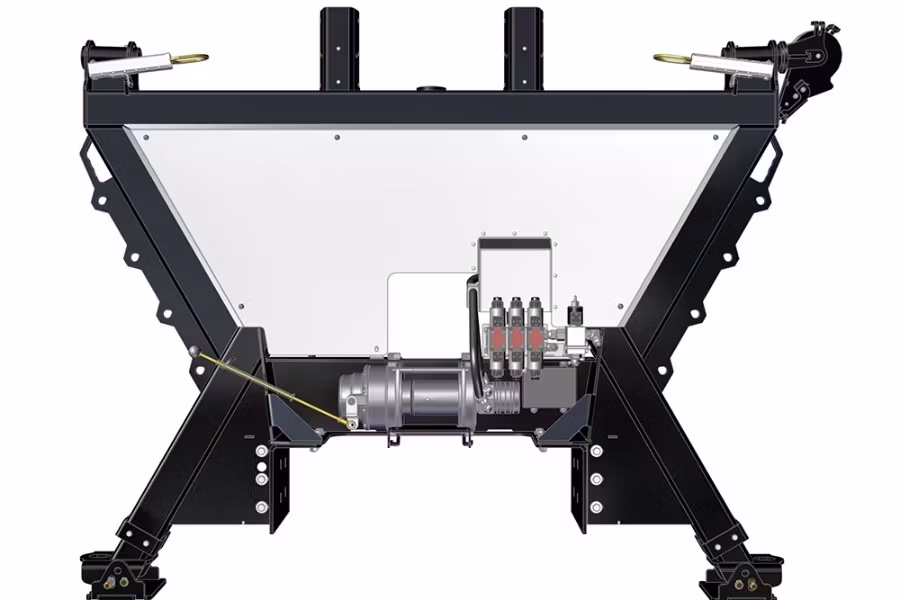

ITD-4890 Standard Features(with Integrated Controls)

• 9,000 lb. WARN High Speed Severe Duty Planetary Winch
• 3/8" x 100' Steel Core Rope
• Winch Free Spool Handle (Easy Reach / Easy Pull)
• Winch Tensioner Plate
• (8) Eight Tie Back Points
• Endurance Powder Coat Black Finish
• Stainless Steel Rear Panel
• Wireless Remote Control for all Functions with Manual Over-rides
• Completely Plumbed and Ready for Installation
• Hydraulic Stabilizer Legs with Lock Valve Safety Features
• Self-Leveling Pavement Pads on Stabilizer Legs
• Fold Down Ground Penetrating Grousers on Stabilizer Legs
• Adjustable LightBar Mount
• Wire Routing System allows easy Wiring from Light Bar to Chassis
• Adjustable, Mounting System with Mounting Hardware
• Center Recovery Boom Head
• Outer Recovery Boom Head

Vehicle Specific Mounting Plate Kits

• The SP8500 comes without Mounting Plates so you will need to select the style you want. Each Mounting Plate kits includes (2) Mounting Plates and all the Hardware you need to install your SP8500 . Or choose to stock one of each and cover 90% of Light/Medium Duty Market! Click on any below for specifications
• ITD-4882: SP8500 Dodge Mounting Plate Kit
• ITD-4903: SP8500 Universal Mounting Plate Kit (No Predrilled Holes)
• ITD-4092: SP8500 Chevy HD & International CV Mounting Plate Kit
• ITD-4907: SP8500 Ford F450 & F550 Mounting Plate Kit (Availabe July 2020)

Optional Light Pylon

• ITD-4879: SP8500 Series 54" Pylon
• ITD-4876: SP8500 Series 60" Pylon
• ITD-4900: SP8500 Series 70" Pylon
