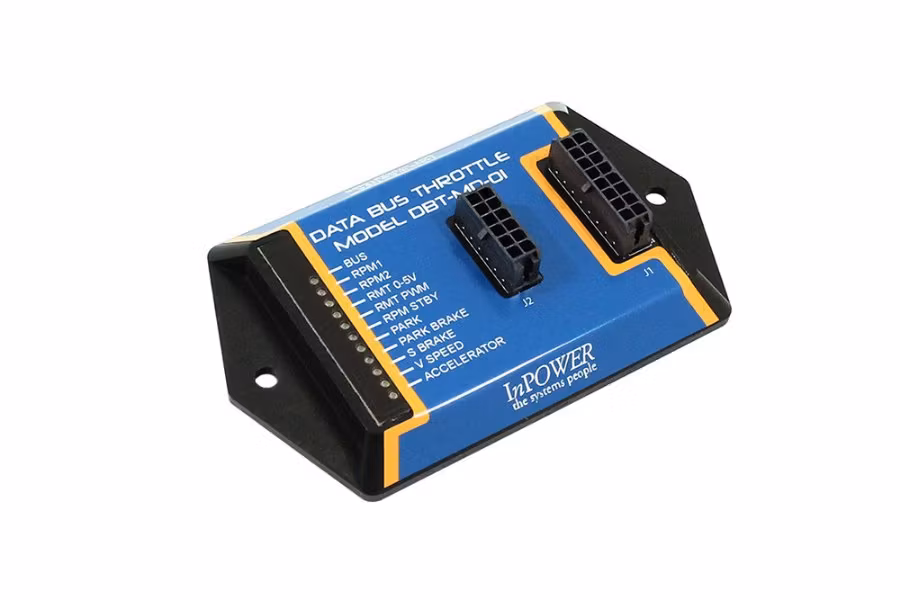

InPower Mediuam Duty Ford Throttle Control

InPower s Medium Duty application Data Bus Throttle (MDF20) does more than just provide high idle and PTO when and how you need it. It can also output any engine signal you need. Each module has three adjustable RPM settings and two remote RPM controls, as well as six chassis outputs for any signal, such as Park, Reverse or Engine Run. The DBT-MDF20 provides breakout of PTO Signals for the user, and utilizes Ford SEIC functions and communicates across CAN. It can be wired to monitor auxiliary battery voltage, to a 0 to 5V sensor, or a 2nd (remote) accelerator pedal.

• Three Adjustable RPMs
• Two Remote RPM controls
• Utilizes FORD SEIC Functions
• Supports Ford, GM, and Cummins Engine
• Six Engine Signal Outputs
• CANcommunication
• Diagnostic LEDs
• Affordable and Reliable
• +12 volts: Sourced from SEIC connector
• RPM1: 1500 Factory Preset
• RPM2: 1200 Factory Preset
• Ground: Connects to Solid Battery Ground
• Speed Adjust Input: Adjusts preset RPM to desired value between 900 and 3000 RPM - (SEIC Max), (Chassis and Engine Dependent)
• Dimensions: 4.4 L x 2.62 W x 0.8 H inches
