Miller Heavy Duty 8.5" Fairlead Roller

In stock

Price: $210.99

SKU: 12-0900892

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

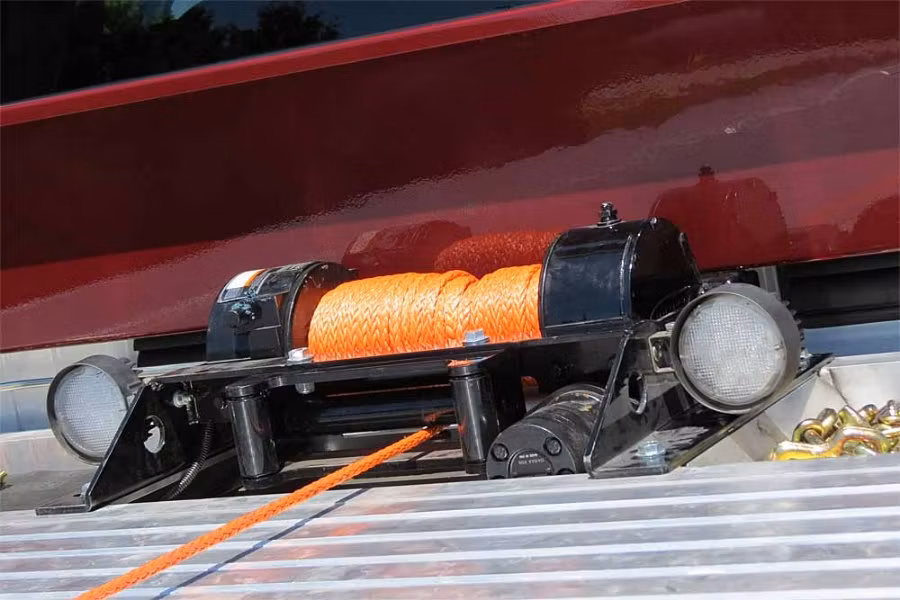

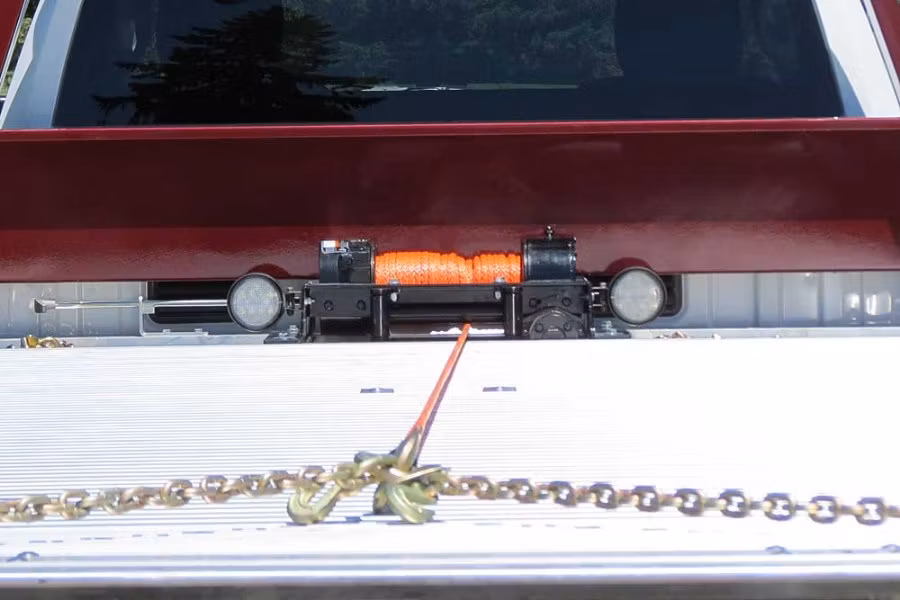

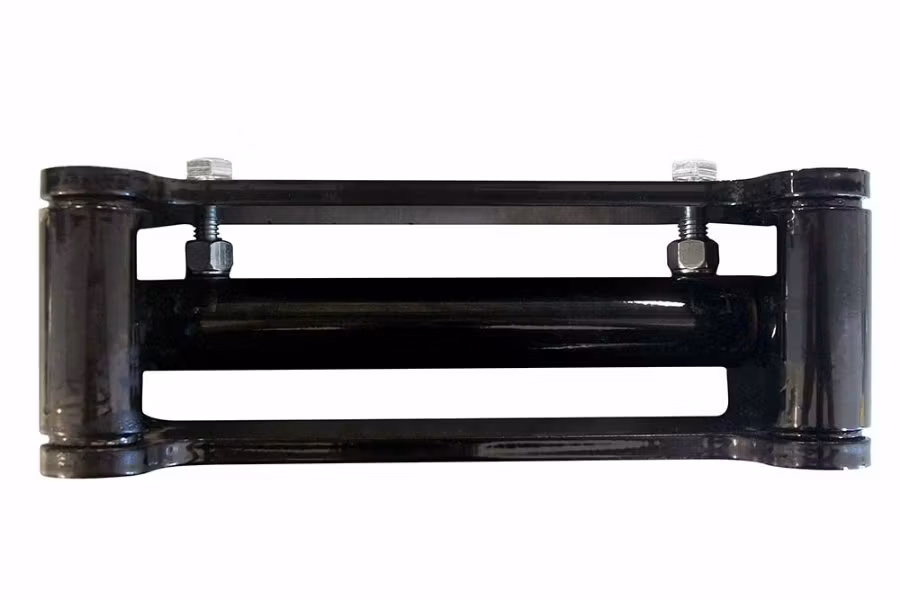

This 8.5" Heavy Duty Roller Fairlead from Miller Industries is for Century, Challenger, Champion and Vulcan Carrier Beds with a Ramsey Worm Style Winch. This fairlead fits 10 Series, 15 Series, 20 Series, 12 Series LCGs and 16 Series LCGs. This roller fairlead is designed to reduce cable wear, especially on sharp angle pulls. To view specific models of carrier this fairlead will fit see Features below. To view part schematics click on the Brochures tab.

Dimensions: 11 1/2" x 4 1/2" x 4"
Bolt to bolt measurement: 8"
Miller Industries Heavy Duty Roller Fairlead
Used on Century, Champion and Vulcan Carrier Beds with Ramsey Worm Style Winch

Fits:
Century 10 Series Steel & Aluminum Carrier (2001 - 2004)
Century 10 Series Steel & Aluminum Carrier (2005 - Current)
Century LCG 12 Series Steel & Aluminum Carrier (2009 - Current)
Century 15 Series Steel & Aluminum Carrier (2002 - 2005)
Century 15 Series Steel & Aluminum Carrier (2005 - Current)
Century LCG 16 Series Steel & Aluminum Carrier (2009 - 2014)
Century LCG Generation II 16 Series Steel & Aluminum Carrier (2014 - Current)
Century 20 Series Steel & Aluminum Carrier (2006 - Current)
Challenger Car Carrier (Prior to 2002)
Champion Steel & Aluminum Carriers (Prior to 2001)
Champion Steel & Aluminum 19'-21' Carriers (2005 - Current)
Vulcan 10 Series Steel & Aluminum Carrier (2005 - Current)
Vulcan 10 Series Extreme Angle Steel Carrier (2001 - 2005)
Vulcan 10 Series Extreme Angle Steel Carrier (2005 - Current)

Related Schematics

Brochure

Literature that describes this product:
