Phoenix Toolbox Dress Plate

In stock

Price:

SKU:

Length *: Please select

Qty:

View Cart

Truck Freight Required

Description

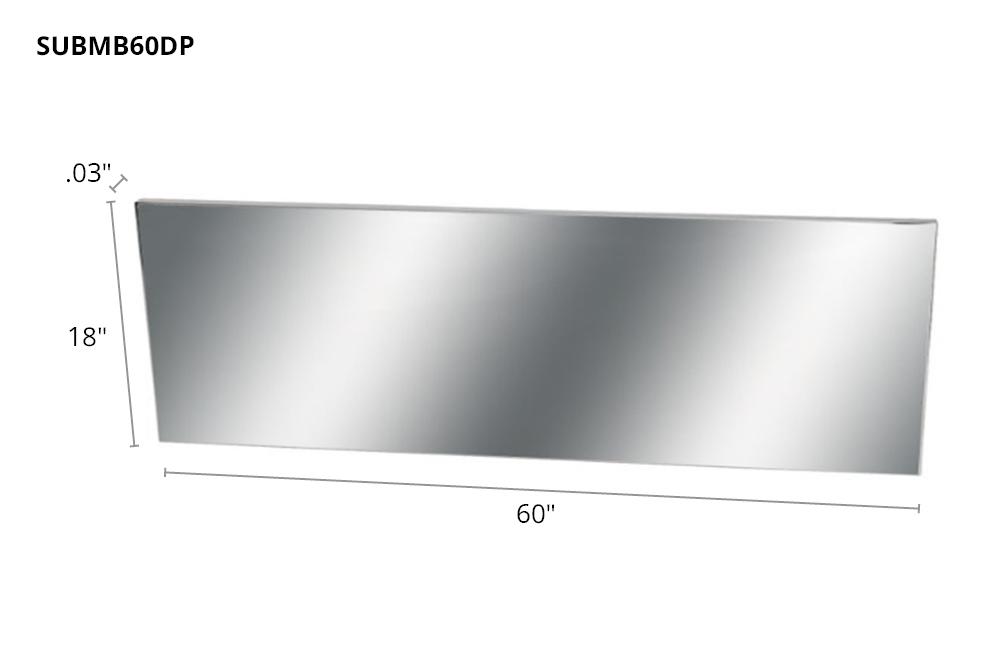

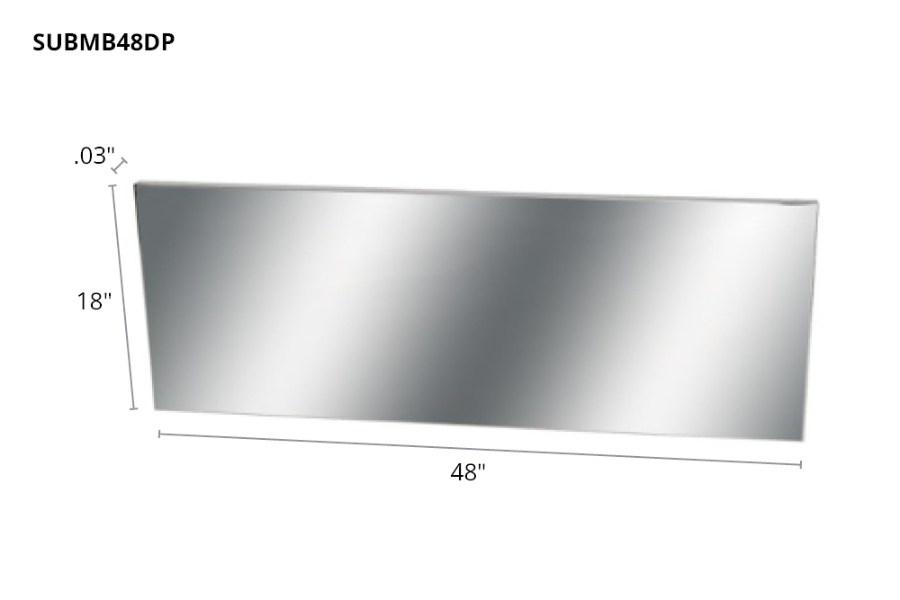

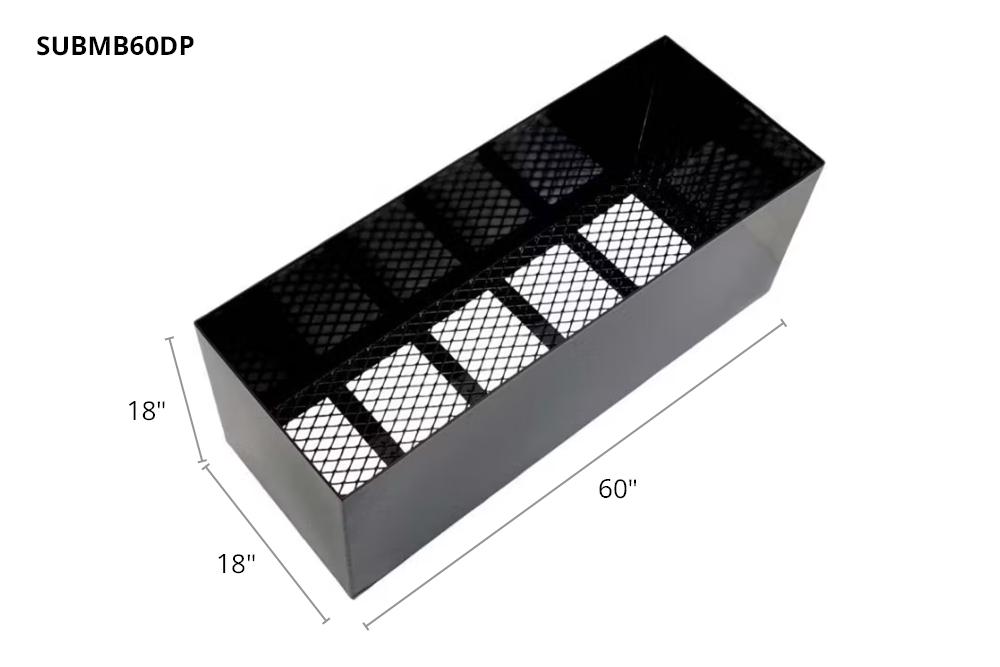

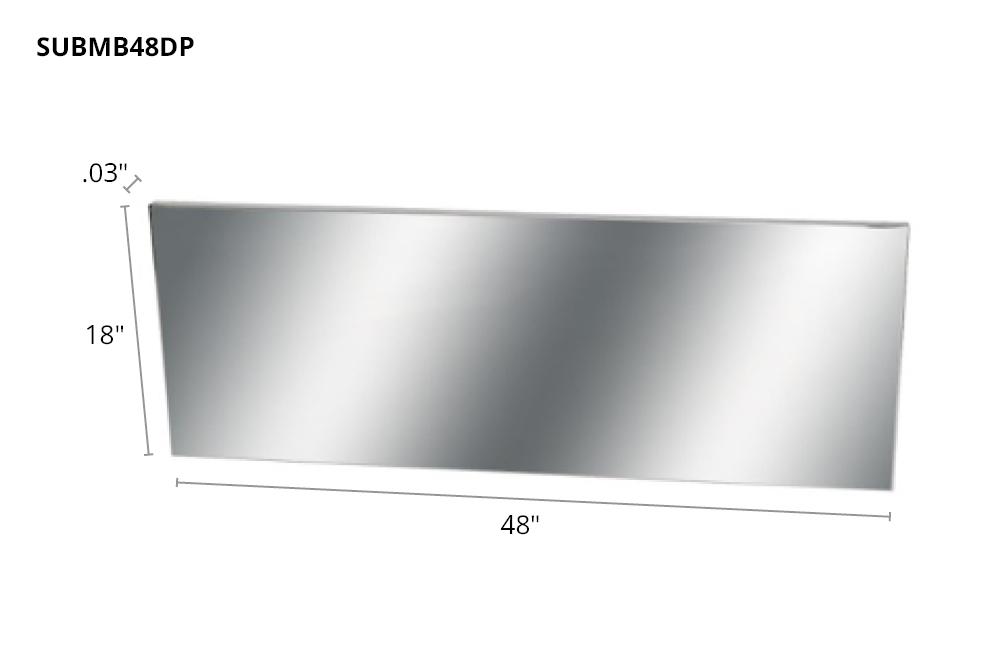

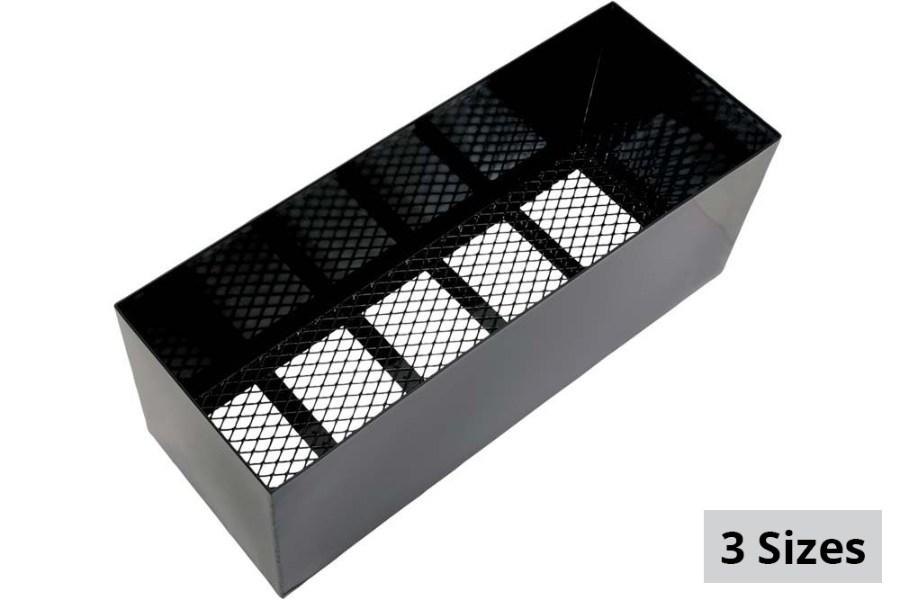

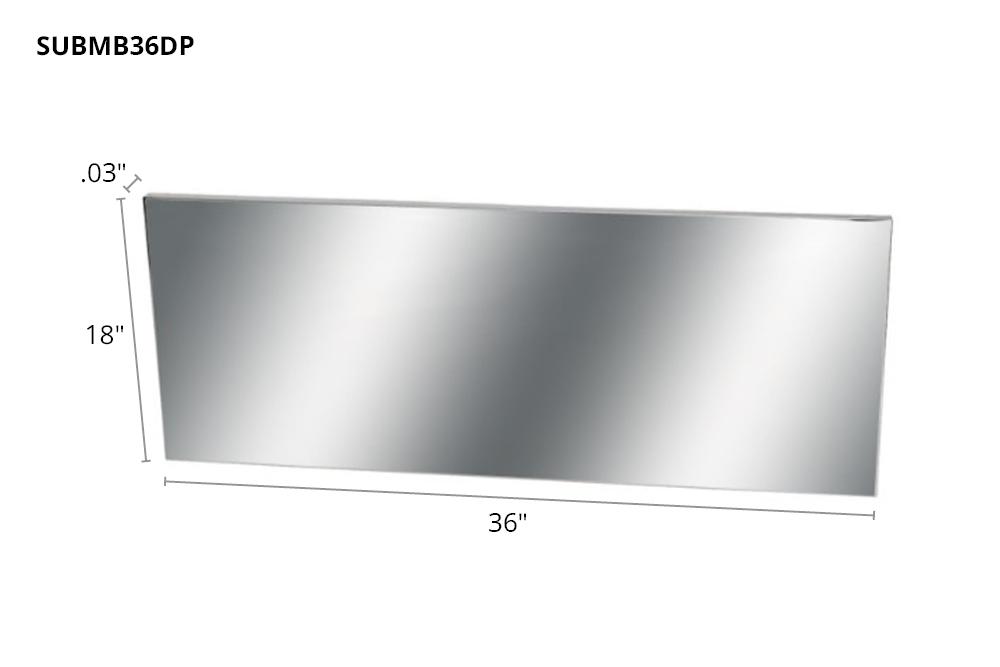

Bottom mesh basket dress plate for Phoenix USA toolboxes. This is a dress plate only. Does not include the toolbox as depicted in the picture.

Toolboxes are 18"H X 18"D
Dress plate only
Doesn't include toolbox
