RAM Mounts 1" Ball Mount With 2/2.5" Round Bases and Locking Knob

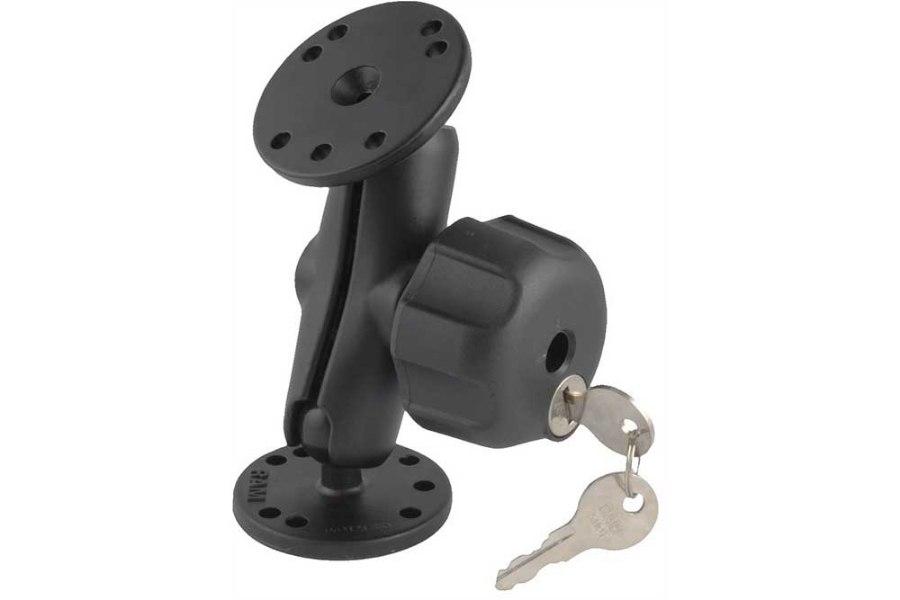

The RAM-B-101LU consists of a double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern and locking knob. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM s patented design dampens shock and vibration, helping to extend the life of your device.

• Secure: Spring-loaded cradles provide solid support and quick release
• Accessible: Easily access all ports on your device
• Versatile: Cradles include support cups that attach to back plate to fit various tablets
• Convenient: Mount bases attach to seat, dash or windshield

  Components

• RAM-B-202U
• RAM-B-201LU
• RAM-B-202U

  Hardware Included

• (2) Keys

  Product Dimensions

• Overall Height: 5"

  Socket-to-Socket Length

• 3"

  Hole Pattern

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter

  Plate Size

• 2.5" Diameter

  Ball/Socket Size

• B Size (1")

  Weight Capacity

• 2 lbs

  Materials

• Marine-grade aluminum

  Weight

• .78 lbs
