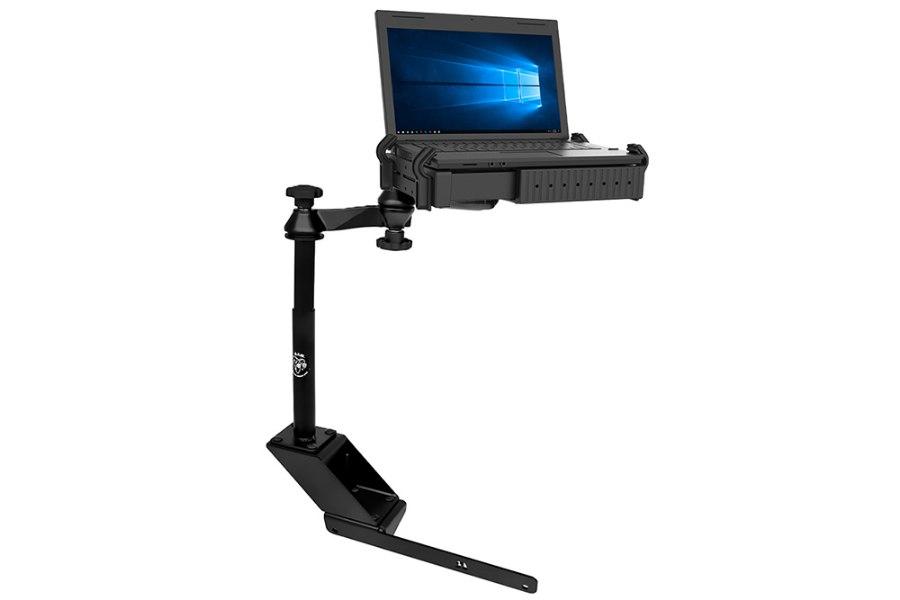

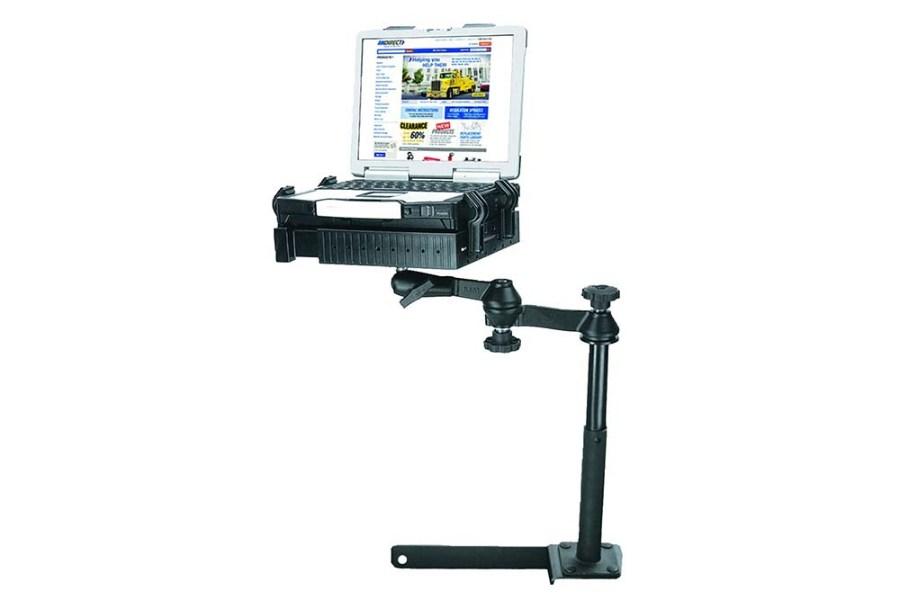

RAM Mounts No-Drill Laptop Mount for 2008-2011 Dodge Ram

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

• Custom laptop vehicle mount designed specifically for 2008-2011 RAM 1500-5500 trucks

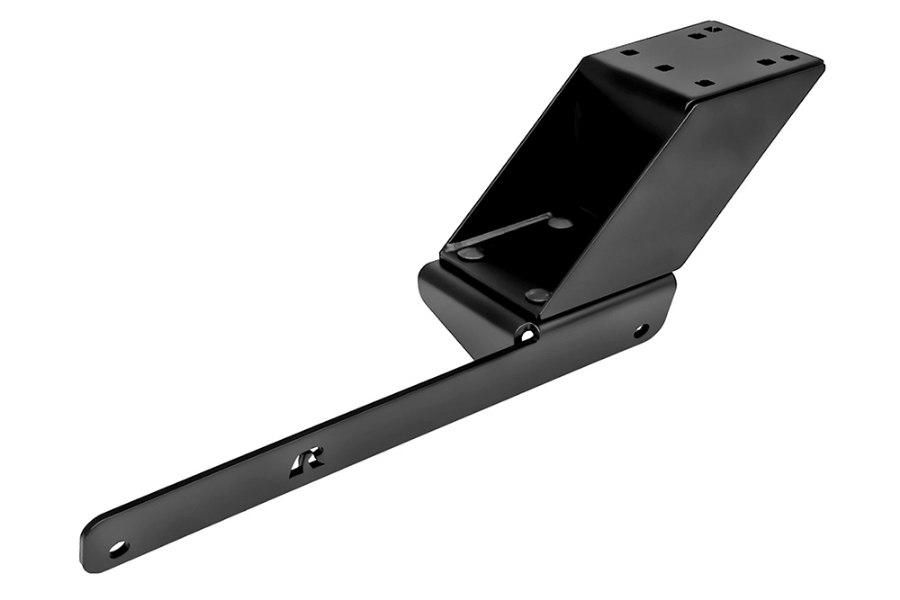

• RAM? No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

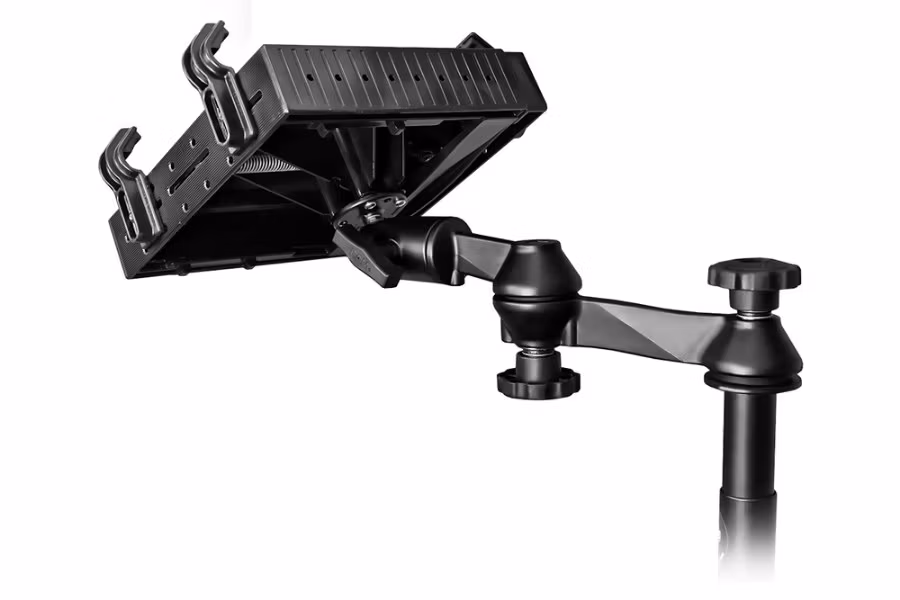

• Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

  Components

• RAM-VB-178
• RAM-VP-SW1-89
• RAM-234-3

  Hardware Included

• Assembly Hardware
• (2) M8-1.25 x 60mm Hex Bolts
• (2) 3/4" Stand-Offs
• (2) 5/16" Flat Washers

  Tray Dimensions

• Width Range: 10" - 16"
• Side Arm Clamp Height: .5" - 1.75"
• Tray Depth: 10"
• Tray Thickness: 2.125"

  Hole Pattern

• Seat Bolt Distance: 13.25" center to center

  Ball/Socket Size

• C Size (1.5")

  Materials

• Powder coated steel
• Marine grade-aluminum
• High strength composite

  Weight

• 15 lbs
