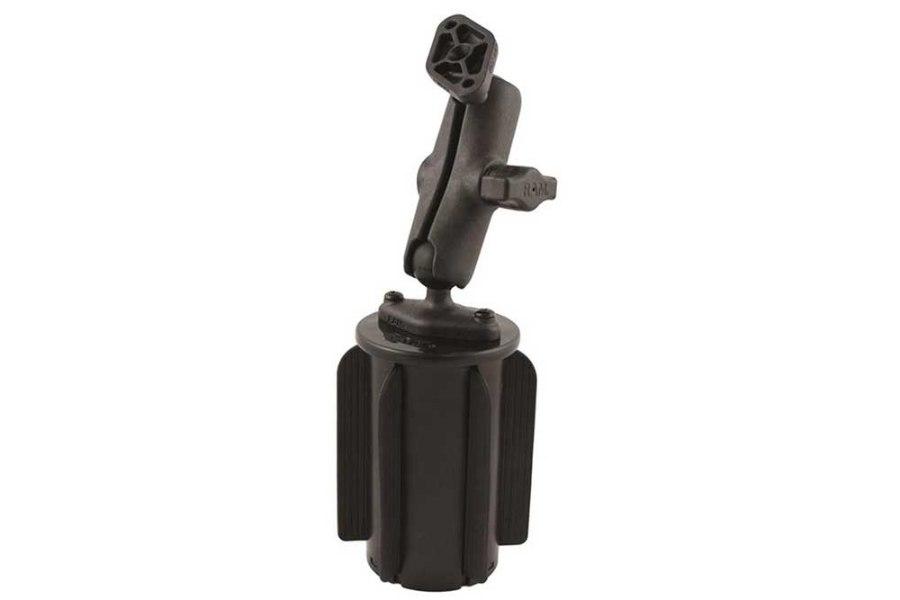

RAM Mounts RAM-A-CAN II Universal Cup Holder Base with Double Ball Mount

The RAP-299-3-B-102U consists of a double socket arm, two diamond bases and RAM-A-CAN II cup holder base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN II cup holder base serves as a mounting point for the diamond base.

Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".

Components

RAP-299-3U

RAP-B-102U

Hardware Included

Assembly Hardware

Product Dimensions

Overall Height: 9.75"

Wedge Dimensions

Fits cup holders between 2.57" - 3.5" inside diameter

Socket-to-Socket Length

3"

Hole Pattern

2-Hole AMPS: 1.912"

Plate Size

2.43" x 1.31"

Ball/Socket Size

B Size (1")

Weight Capacity

2 lbs

Materials

High strength composite

Weight

1.54 lbs
