RAM Mounts Suction Cup Tablet Mount

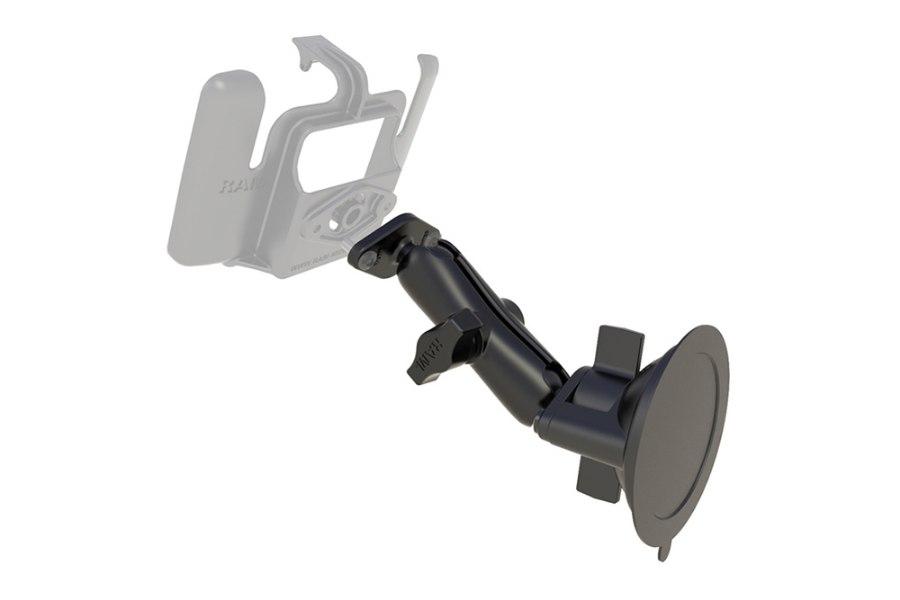

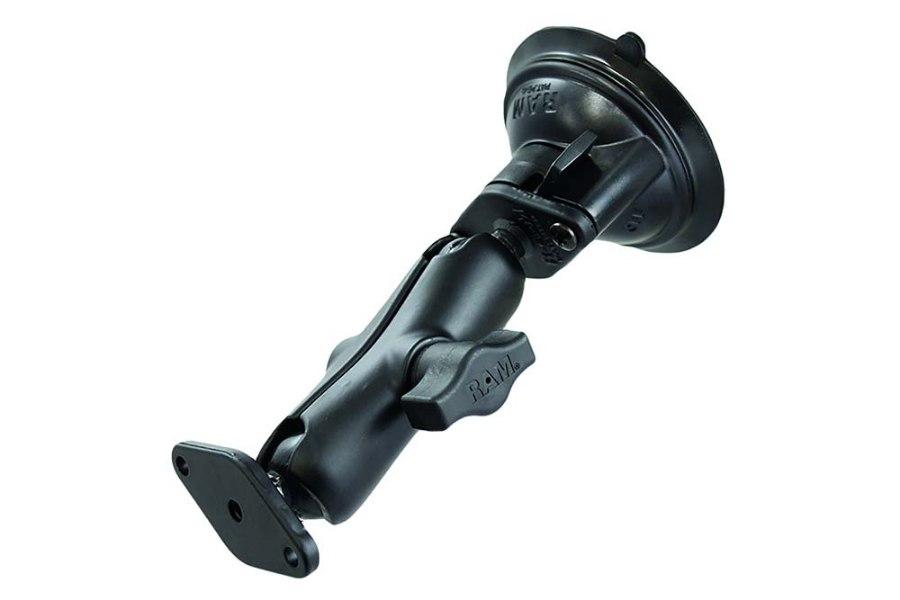

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles.

• RAM? Twist-Lock suction cup base is ideal for vehicle windshields and other nonporous surfaces
• Includes B size medium length RAM? double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

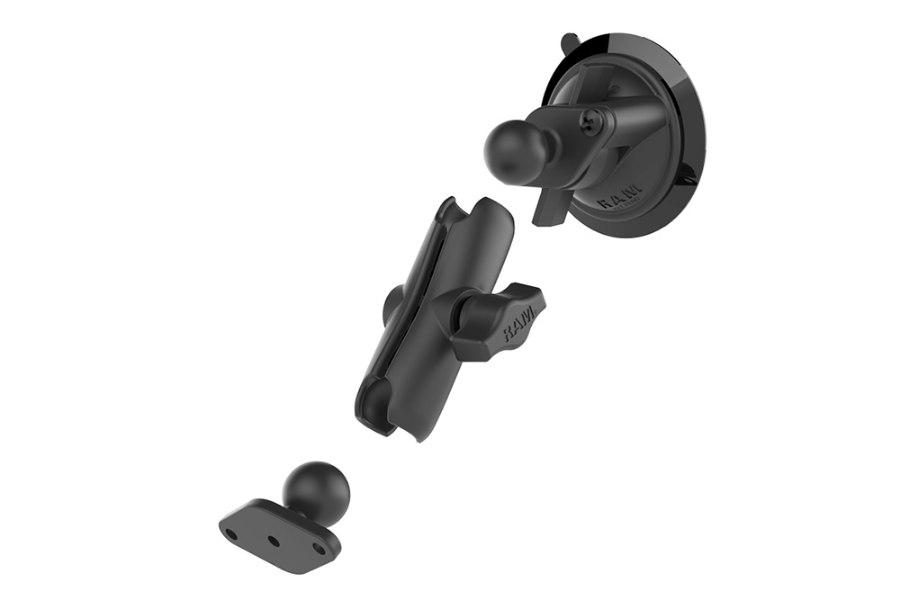

  Components

• RAM-B-224-1U
• RAM-B-201U
• RAM-B-238U

  Hardware Included

• Assembly Hardware

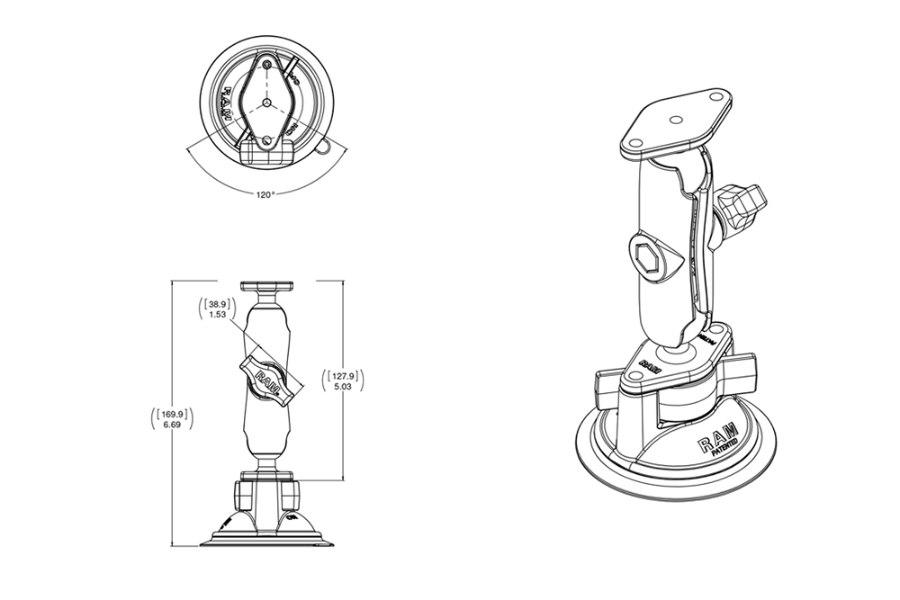

  Product Dimensions

• Overall Height: 6.69"

  Suction Size

• 3.3" Diameter

  Socket-to-Socket Length

• 3"

  Hole Pattern

• 2-Hole AMPS: 1.912"

  Plate Size

• 2.43" x 1.31"

  Ball/Socket Size

• B Size (1")

  Weight Capacity

• 2 lbs

  Materials

• Marine-grade aluminum
• High strength composite

  Weight

• .6 lbs
