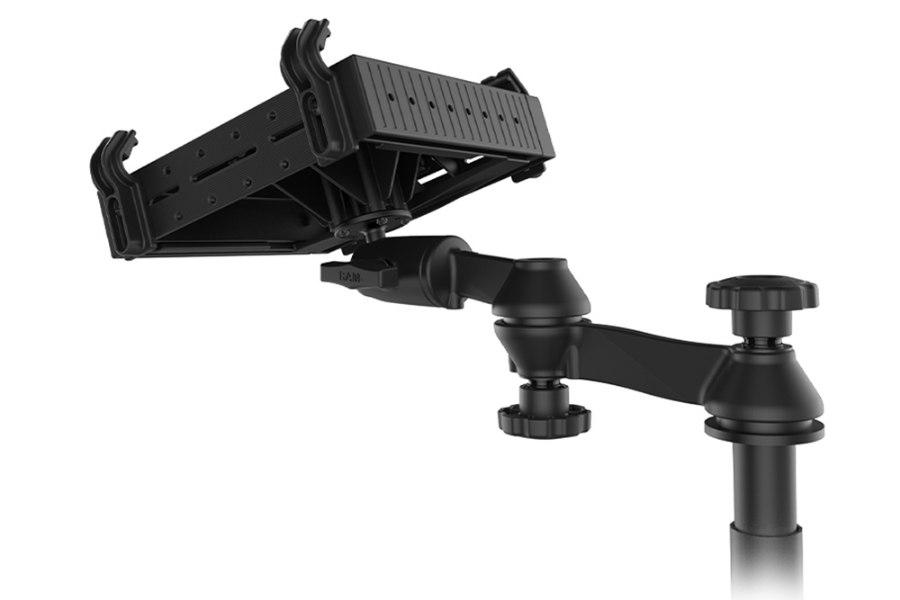

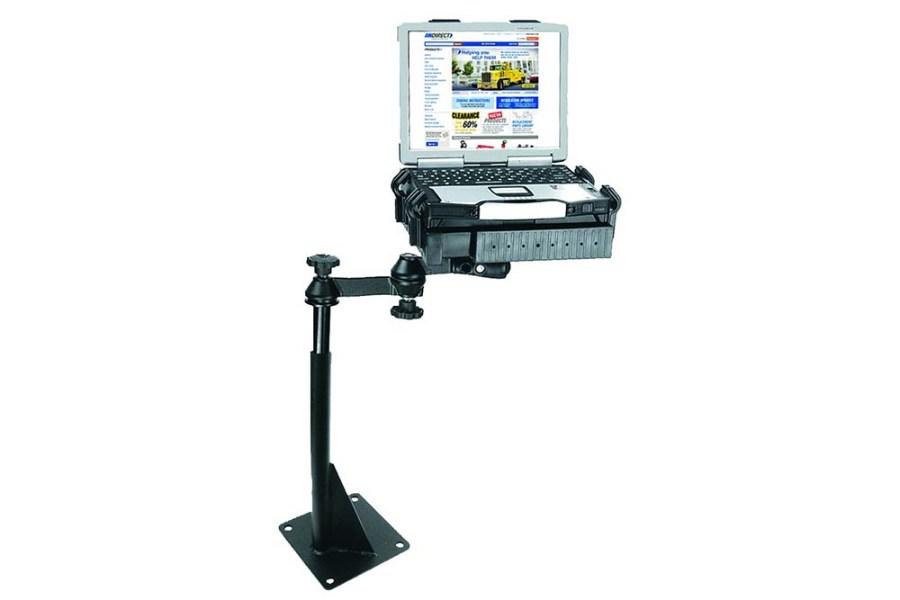

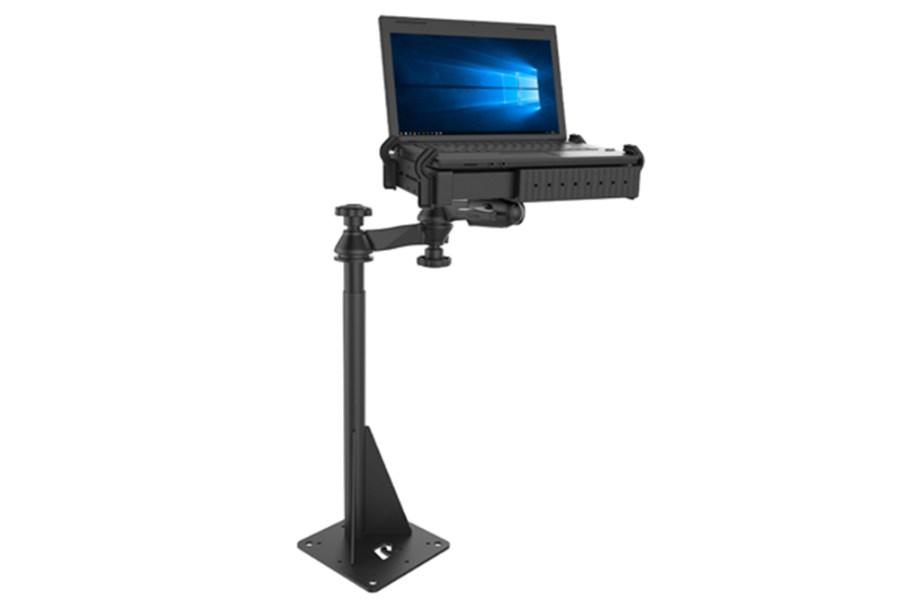

RAM Mounts Universal Drill-Down Vehicle Laptop Mount

This universal drill-down laptop kit installs quickly and easily into most vehicles by using self tapping screws, or by drilling and then bolting down the mount base to the vehicle*. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray.

Universal for All Vehicles

• Universal for All Vehicles

  Components

• RAM-VBD-122
• RAM-VP-SW1-8
• RAM-234-3

  Hardware Included

• Assembly Hardware

  Product Dimensions

• Minimum Height: 25.05"
• Maxium Height: 32.05"

  Tray Dimensions

• Width Range: 10" - 16"
• Side Arm Clamp Height: .5" - 1.75"
• Tray Depth: 10"
• Tray Thickness: 2.125"

  Hole Pattern

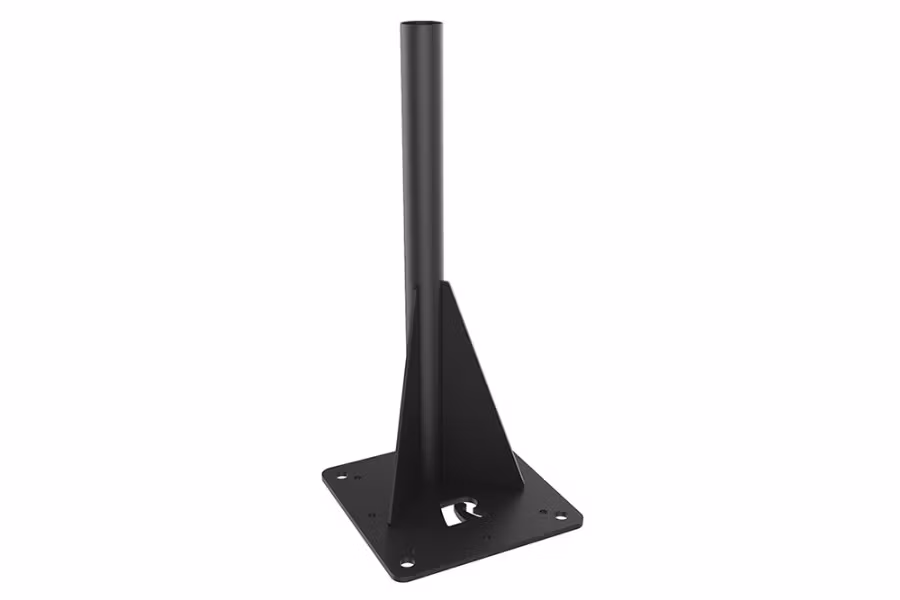

• Base: See Drawing

  Plate Size

• 8" x 8"

  Ball/Socket Size

• C Size (1.5")

  Materials

• Powder coated steel
• Marine grade-aluminum
• High strength composite

  Weight

• 17 lbs
