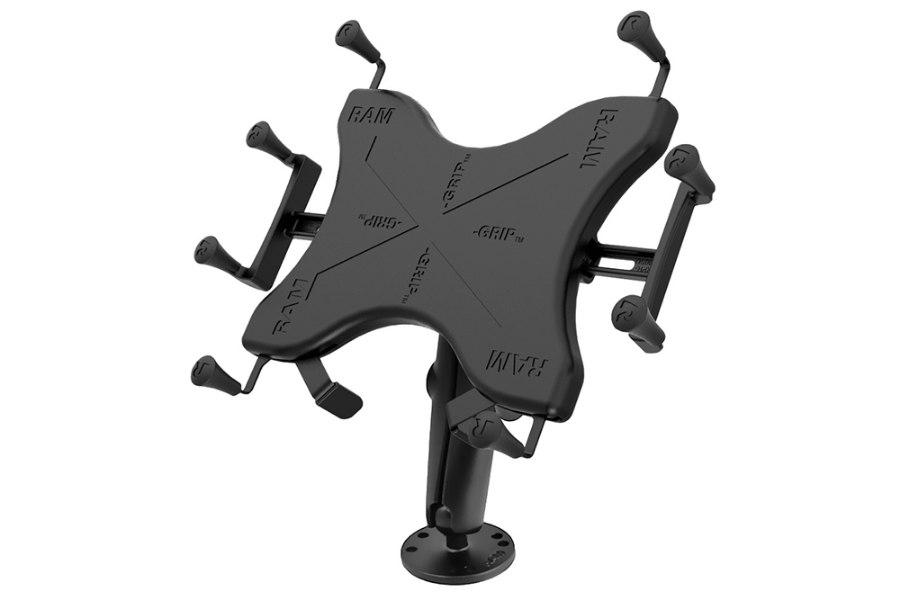

RAM Mounts X-Grip Drill-Down Double Ball Mount for 10" Tablets

The RAM-B-101-C-UN9U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, LONG double socket arm and universal RAM? X-Grip? clamping cradle for 10" tablets. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM? X-Grip? clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM? X-Grip? clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the RAM? X-Grip?.

• Complete flat surface, drill-down mounting solution for the RAM? X-Grip? 10" tablet holder
• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

  Components

• RAM-B-101U-C
• RAM-HOL-UN9U

  Hardware Included

• Assembly Hardware

  Holder Dimensions

• Max Height: 10.25" (using optional supports)
• Width Range: 6.25" - 8.1"
• Max Depth: .875"

  Socket-to-Socket Length

• 5.31"

  Hole Pattern

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter

  Ball/Socket Size

• B Size (1")

  Weight Capacity

• 2 lbs

  Materials

• Marine-grade aluminum
• High strength composite

  Weight

• 1.85 lbs
