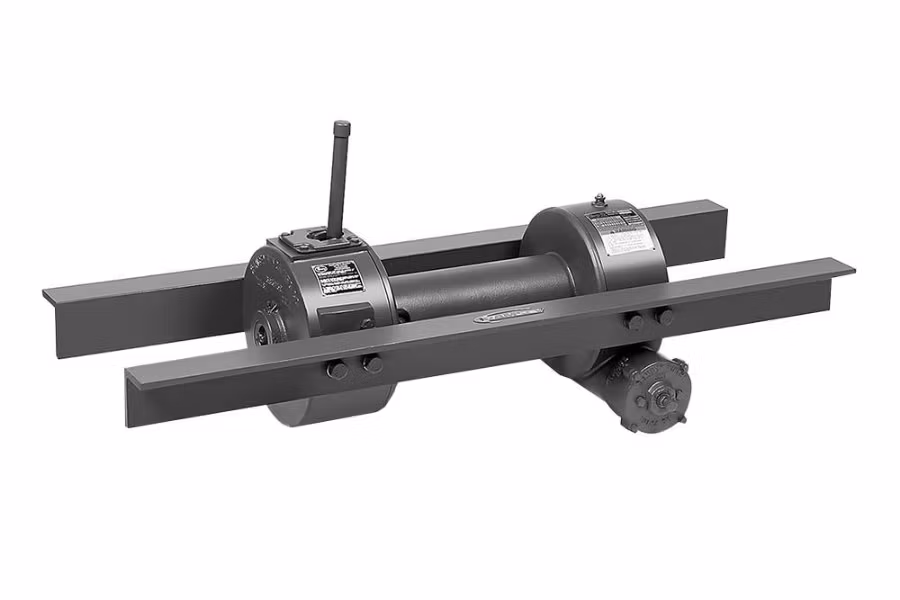

The H-800 is a 20,000 lbs. hydraulic worm gear winch "without" a direct mount
hydraulic motor. 15" wide drum accepts up to 240' of 5/8" cable.
The replacement winch motor for this hydraulic winch is part number
104-1066-006 .
- Ramsey Part Number: 124415
- Model: H-800R
- Line Pull: 20,000 lbs
- Clutch: Dow-Lok
- Mounting Configuration: Front Underwind Left Side/Rear Underwind Right Side
- Gear Ratio: 40:1
- Motor Included: No
- Angles Included: Yes
- Drum Length: 14.75"+-/16"
- Adjustable/Automatic Brake: Yes
- Heavy Duty
- Standard drum holds 240' of Cable
- Includes Brake
- Recommended Cable: 5/8"
- Meets SAE-J706
- Made in the USA
Applications
- General Industrial
- Mining & Construction
- Railroad
- Specialty Vehicle
- Towing & Recovery
- Towing & Recovery (Heavy Wrecker)
- Towing & Recovery (Medium Wrecker)
- Trailer
Winch Mount Configuration
Model H-800 Specifications
- Rated Line Pull: 20,000 lbs / 9,072 Kg (1st Layer of Cable)
- 1st Layer Line Speed: 18'/min / 5.5m/min
- Gear Ratio: 40:1
- Weight w/o Cable: 330 lbs / 150 Kg
- Brake: Yes - brake is self-locking (Includes auxiliary brake)
- Cable: None
- Drum Size (L x F x B): 15" x 12.13" x 5.69" / 381mm x 308.1mm x 144.5mm
- Cable Capacity: 240' / 73.2m
- Recommend Cable Size: 5/8" / 15.9mm
- Hydraulic Pressure Required: 2,200 PSI (152 Bar)
- Hydraulic Flow Required: 30.0 GPM (114 LPM)
- Motor Size: 14.9 Cu. In. (244 cc)
- Additional Motor Options: Must Call
- Clutch Type: Blocked, DOW-LOK?
- Clutch Control: Air, Manual
