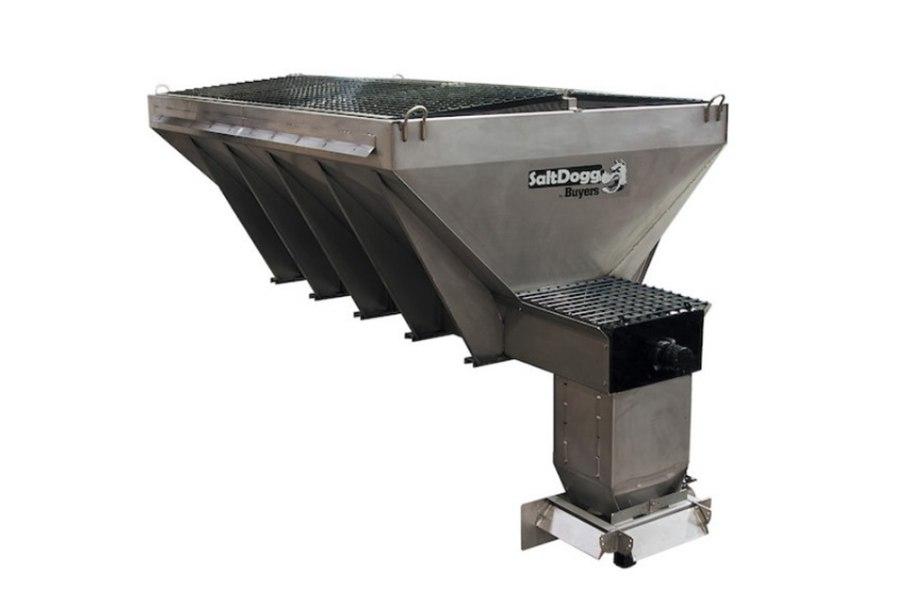

SaltDogg 14Ft Municipal Hydraulic Auger Spreader

Buyers Products SaltDogg 6-14 Cubic Yard Hydraulic Auger Spreader gives contractors and municipalities a high-volume spreader with a heavy duty auger. The spreader uses a truck's existing central hydraulic system. The 108 in., 120 in., 132 in., 144 in., or 168 in. hoppers are designed for dump bodies and flatbeds with a minimum 33,000 lb GVW (gross vehicle weight) chassis.

The hopper and fully welded frame are made from high quality 304 stainless steel for long lasting corrosion protection. Six heavy duty hinged top screens help break up clumps of material during bulk loading.

The 7 in. carbon steel auger features a multi-pitch design with 1/2 in. hard-faced flighting. It's directly driven by a 60 cubic inch displacement hydraulic motor. A 19 cubic inch hydraulic motor with in-line planetary gearbox is available as an option. An 18 in. poly spinner powered by a direct mount hydraulic motor spreads material 2 to 30 ft. The adjustable spinner chute and baffles allow you to adjust the spinner height and spread pattern to your application. The chute and spinner assembly flips up for convenient bulk unload, easy servicing, and access to towing.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below.

• SD-14514F573121: Capacity 10.00 yd, Gearbox Ratio Direct, Hopper Length 168", 14FT x 57IN
• SD-14514F633121: Capacity 11.70 yd, Gearbox Ratio Direct, Hopper Length 168", 14FT x 63IN
• SD-14514F633121: Capacity 13.50 yd, Gearbox Ratio Direct, Hopper Length 168", 14FT x 69IN
• Designed for dump bodies and flatbeds with a minimum 33,000 lb GVW (gross vehicle weight)
• Available with 108 in., 120 in.,132 in., 144 in., or 168 in. hoppers with a capacity from 6 to 14 cubic yards
• Hydraulic power with two independent motors for auger and spinner operation
• Spreads bulk salt
• Hydraulic spreader controls sold separately with variety of options available
• 18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute
• Heavy duty 7 in. carbon steel auger with 1/2 in. flighting
• Adjustable chute and baffles let you tailor height and spread pattern
• High quality, 304 stainless steel construction for optimum corrosion resistance
• Includes six 3/8 in. heavy duty hinged-top screens with a 4 in. peak
• Made in the USA
