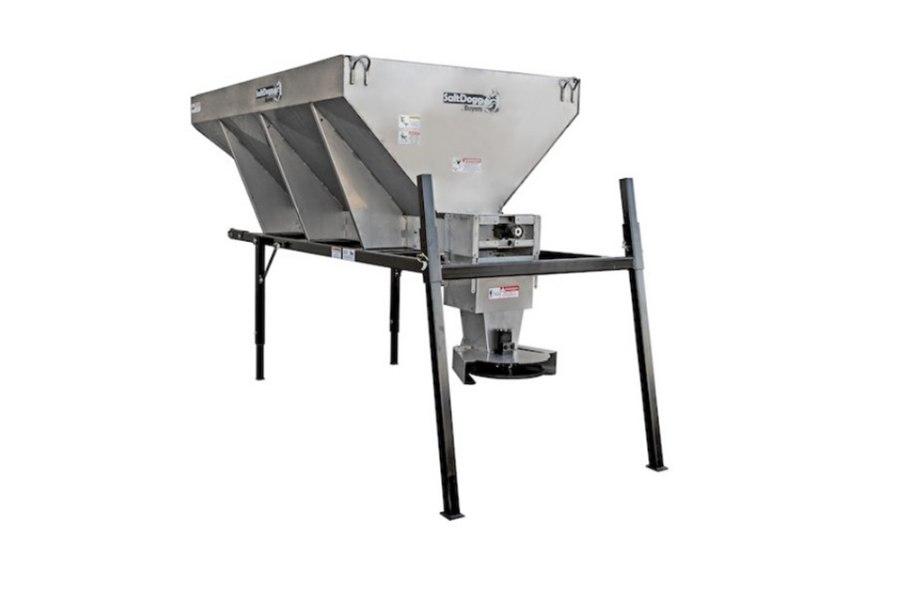

SaltDogg 8Ft Hydraulic Conveyor Chain Spreader

Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader that is powered by a central hydraulic system (not included). The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix.

The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control.

The conveyor chain is driven by a hydraulic motor with a 20:1 worm gear box. The spinner is powered by a direct mount hydraulic motor. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.

Designed for dump bodies and flatbeds with a 15,000 to 19,500 lb GVW (gross vehicle weight)

Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 3.5 to 5 cubic yards

Hydraulic powered drive with two motors for conveyor and spinner operation

Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix

Hydraulic spreader controls sold separately with variety of options available

18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute

Versatile 14-1/2 in. chain conveyor drive

Two chute baffles allow you to adjust the spread pattern to your use

High quality, 304 stainless steel construction for optimum corrosion resistance

Stainless steel inverted V reduces stress on the drive line and improves flow

Four hinged top screens with 1/4 in. bars included

Made in the USA

Capacity: 3.50 yd

Chute: Adjustable Height

Chute Primary Material: 304 Stainless Steel

Controller Type: Not Included

Feed Mechanism: Conveyor Chain

Feed Mechanism2: 14 1/2 in. Pintle Chain with 1/4in. Bars

Gearbox Ratio: 20;1

Hopper Material: 304 Stainless Steel

Number of Motors: 2

Overall Length: 116.0"

Overall Width (at top): 70.00"

Spinner Diameter: 18.00"

Spinner Material: Polyurethane

Spreading Width Range: 2 To 40'

Top Screen: Yes

Trough Material: 304 Stainless Steel

Vibrator Included?: No

Works with Bagged #1 Rock Salt: Yes

Works with Bulk Salt: Yes

Works with Bulk Sand: Yes

Works with Salt / Sand Mix: Yes

Drive Type: Hydraulic

Hopper Length (in.) : 96.00"

Hopper Width (in.): 70.00"

Overall Height (in.): 46.00"
