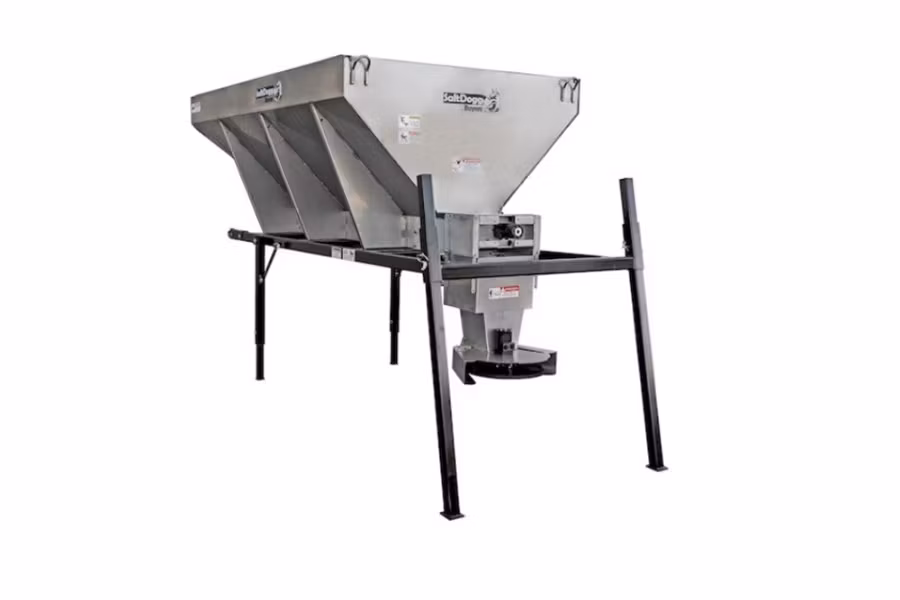

SaltDogg 9Ft Hydraulic Conveyor Chain Spreader

Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader that is powered by a central hydraulic system (not included). The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix.

The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control.

The conveyor chain is driven by a hydraulic motor with a 20:1 worm gear box. The spinner is powered by a direct mount hydraulic motor. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.

• SD-14709F462211: Capacity 4.00 yd, Gearbox Ratio 20:1, Hopper Length 108", 9FT x 46IN
• SD-14709F522211: Capacity 5.00 yd, Gearbox Ratio 20:1, Hopper Length 108", 9FT x 52IN
• Designed for dump bodies and flatbeds with a 15,000 to 19,500 lb GVW (gross vehicle weight)
• Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 3.5 to 5 cubic yards
• Hydraulic powered drive with two motors for conveyor and spinner operation
• Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix
• Hydraulic spreader controls sold separately with variety of options available
• 18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute
• Versatile 14-1/2 in. chain conveyor drive
• Two chute baffles allow you to adjust the spread pattern to your use
• High quality, 304 stainless steel construction for optimum corrosion resistance
• Stainless steel inverted V reduces stress on the drive line and improves flow
• Four hinged top screens with 1/4 in. bars included
• Made in the USA
