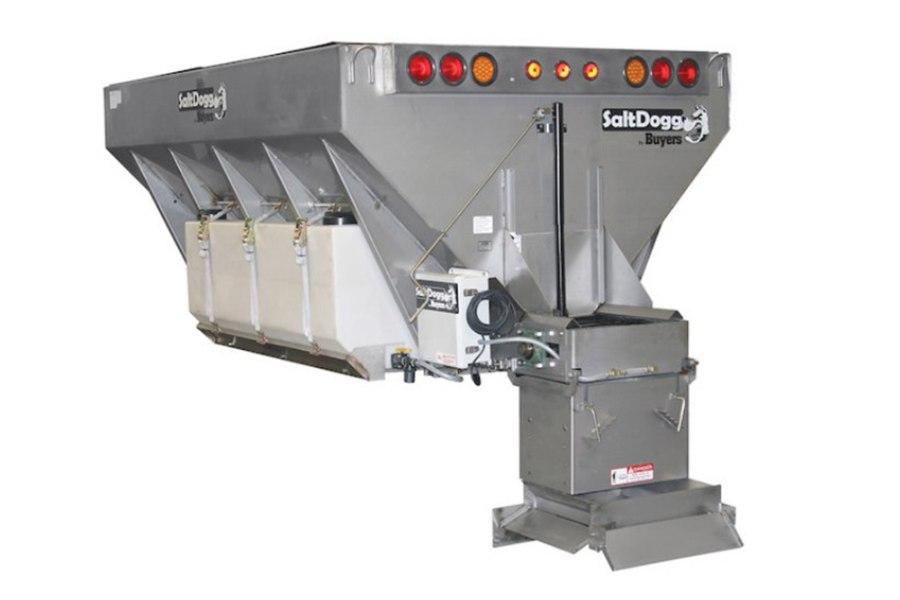

SaltDogg 9Ft Municipal Hydraulic Conveyor Chain Spreader

$22,358.99
SKU: SD-14509F576111
View Cart
Truck Freight Required
A special handling fee of $635.00 will be added to this product
Description
Buyers Products SaltDogg Municipal Hydraulic Conveyor Chain Spreader gives municipalities and large contractors a high-volume, heavy duty spreader ready for use with a truck's existing central hydraulic system. The 108 in., 120 in., 144 in., or 168 in. hoppers are designed for 96 in. wide dump bodies and flatbeds with a minimum 26,000 lb GVW (gross vehicle weight) chassis. The hopper and fully welded frame are made from high quality 304 stainless steel for long lasting corrosion protection. Six heavy duty hinged-top screens with 2-1/2 in. openings help break up clumps of material during bulk loading.

A high-flow 24-1/2 in. wide steel pintle chain conveyor provides a high speed material flow. The stainless steel inverted V reduces stress on the drive line to reduce wear and improve flow. A screw jack adjustable feed gate offers additional material flow control.

The conveyor is driven by a hydraulic motor with your choice of a 25:1 or 50:1 worm gear box, or a 6:1 spur gear box. The heavy duty driveline is built with a 2 in. drive shaft and a 1-1/2 in. spring loaded idler shaft with bearings and 8-tooth sprockets.

The spreader is equipped with a 20 in. poly spinner or an optional stainless steel spinner. It can spread material 2 to 40 ft. The baffles and spinner chute height are adjustable to suit your application. The chute and spinner assembly flips up or detaches completely for convenient bulk unloading, easy servicing, and access to towing.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below.

  • Capacity: 6.50 yd
  • Chute: Adjustable Height
  • Chute Primary Material: 304 Stainless Steel
  • Controller Type: Not Included
  • Feed Mechanism: Conveyor Chain
  • Feed Mechanism2: 24 in. Pintle Chain with 3/8 in. Bars
  • Gearbox Ratio: 6:1
  • Hopper Material: 304 Stainless Steel
  • Number of Motors: 2
  • Overall Length: 132.00"
  • Overall Width (at top): 82.00"
  • Spinner Diameter: 20.00"
  • Spinner Material: Polyurethane
  • Spreading Width Range: 2 To 40'
  • Top Screen: Yes
  • Vibrator Included?: No
  • Works with Bagged #1 Rock Salt: Yes
  • Works with Bulk Salt: Yes
  • Works with Bulk Sand: Yes
  • Works with Salt / Sand Mix: Yes
  • Drive Type: Hydraulic
  • Hopper Length (in.): 108.00"
  • Hopper Width (in.): 82.00"
  • Overall Height (in.): 57.00"
  • Designed for dump bodies and flatbeds with a minimum 26,000 lb GVW (gross vehicle weight)
  • Available with 9', 10', 11', 12' and 14' hoppers with a capacity from 6.5 to 14 cubic yards
  • Hydraulic power with two independent motors for conveyor and spinner operation. Your choice of three gearbox ratios
  • Spreads bulk salt, bulk sand, and 50/50 salt/sand mix
  • Hydraulic spreader controls sold separately with variety of options available
  • 20 in. poly spinner broadcasts up to 40 ft, using with a height adjustable chute
  • Versatile 24 in. wide chain conveyor drive
  • Stainless steel, adjustable inverted V reduces stress on the drive line and improves flow
  • High quality, 304 stainless steel construction for optimum corrosion resistance
  • Heavy duty 3/8 in. hinged top screens with 2-1/2 in. openings
  • Spreader is shown with optional light bar (8891167) , and pre-wet system (LS4) which are sold separately
  • Made in the USA
