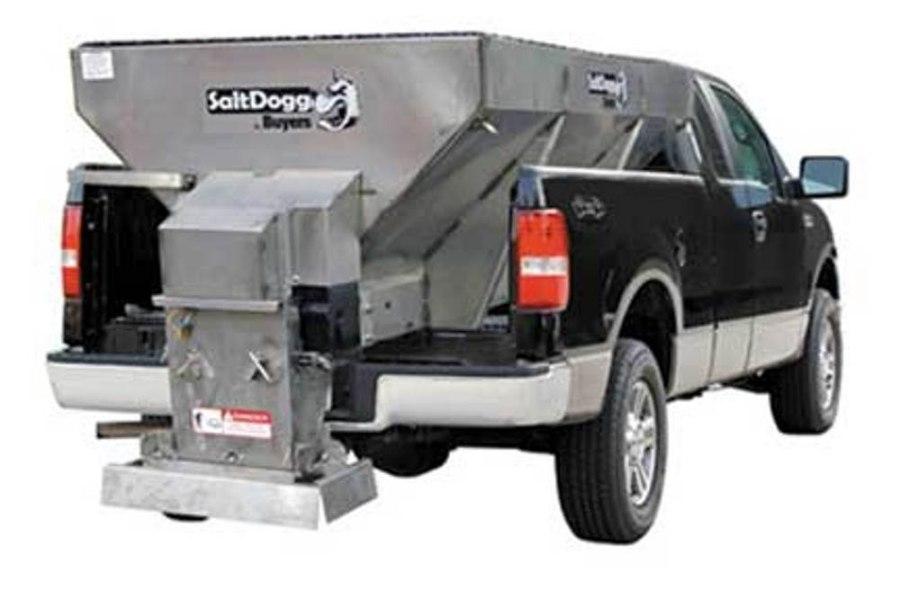

96" Electric Stainless Steel Slide-In Spreader, Dimensions; 113 x 47 x 33,
Capacity; 2.0 cu. yds., Weight; 750 lbs, Conveyor Feed Mechanism,
11.5" Polymer Spinner, Spread Width; 2-30 feet, Adjustable Chute, Recommended
Use; 3/4 or 1-Ton Trucks
- Stainless steel adjustable chute hopper spreader features dual, ultra-quiet 12V
direct-drive electric motors, providing independent control of drag chain and
spinner
- The rugged design allows for use with salt, sand and other materials
- The complete assembly mounts easily on 3/4-ton and 1-ton pickup, dump and
platform trucks
- MATERIAL HOPPER - High-quality grade 304 stainless steel components, including:
Hopper, Hopper Supports, Hopper Floor, Gussets, Spinner Chute Assembly,
Deflectors and Engine Hood
- Electrically welded ends and sides sloped at 45 degrees are constructed with
channel formed top edges
- Vertical supports add extra strength to the unit
- The single lift point on the cross support beam is located at the unit's
center of gravity to allow for easy loading and unloading
- CONVEYOR - The conveyor is made of 12" wide all-steel pintle chain with
3/16"x 3/4"cross bars
- Chain strength is 11,000 lbs.per strand;22,000 lbs. total weight
- Drive sprockets are 6-tooth cast iron, on a 1-1/8" diameter shaft
- Donveyor chain has an adjustment range of 3-1/2"
- Drive shaft has heavy-duty, sealed, self-aligning ball bearings with
grease fittings
- The idler drum has heavy-duty 1" diameter ball bearings
- CONVEYOR GEAR CASE - Gear is constructed of aluminum bronze, worm gear is
hardened steel and ground
- Housing is made of durable cast iron
- Gear ratio is 20:1 with 1" input shaft and 1-1/8"output shaft on tapered
roller bearings
- SPINNER CHUTE ASSEMBLY - Feature high-quality grade 304 stainless steel
Spinner Chute Assembly, Deflectors and Hood
- A polymer disc with four fins is connected to a 3/4"diameter shaft secured
on two pillow block bearings
- The spreading material is guided from the conveyor to the spinner plate
through an enclosed chute with internal and external deflectors
- Adjustable deflectors allow for complete directional spread control and
full or compact spread
- Total spread radius ranges from 2' to 25'
- The extra wide rear deflector protects the rear and under carriage of the
vehicle
- FEEDGATE - Lever operated with a friction lock for accurate adjustment
