SaltDogg Slide-In Gas Stailess Steel Hopper Spreader Extended Chute

Price: $6,775.99–$7,715.99

SKU: SD-1400SIXSPREADER

Capacity *

Qty:

View Cart

Truck Freight Required

Description

Buyers Products SaltDogg Cubic Yard Gas Hopper Spreader gives contractors and businesses a gas-powered spreader ready for commercial applications using bulk salt, bulk sand, or a 50/50 salt/sand Its. The spreader combines the power of a gas engine with modern spreader conveniences. mix.

SD-1400350SS 2.5 cu yd 120" Chute
SD-1400100SS 2.0 cu yd 96" Chute
SD-140025SS 1.5 cu yd 72" Chute
Hopper spreaders are completely self-contained, ultra-durable spreader units designed for ice and snow control
The rugged design allows for use with salt, sand and other materials

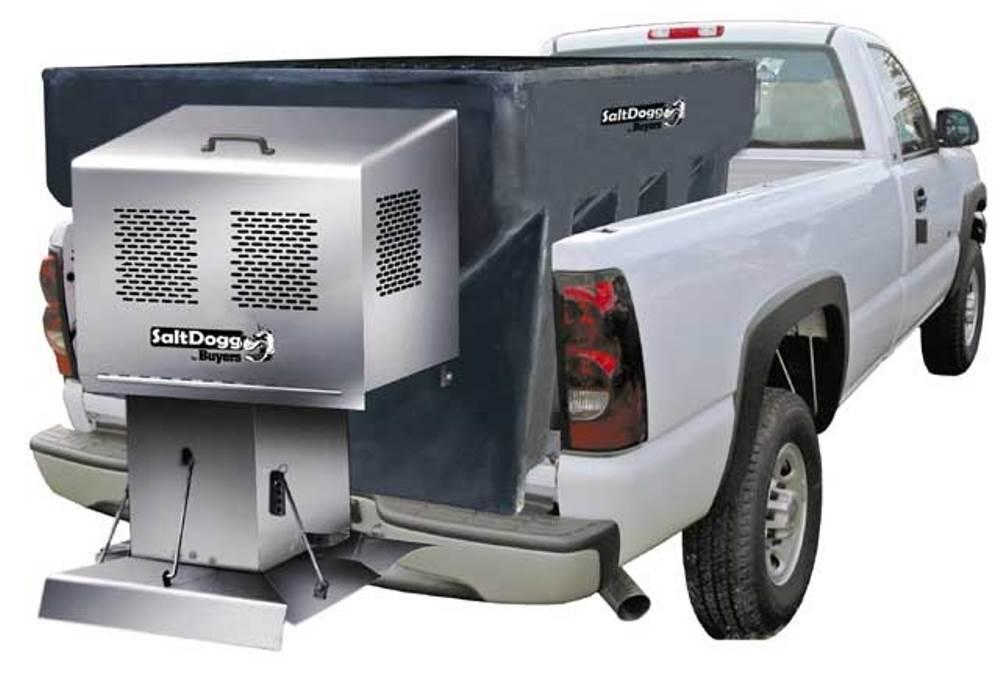

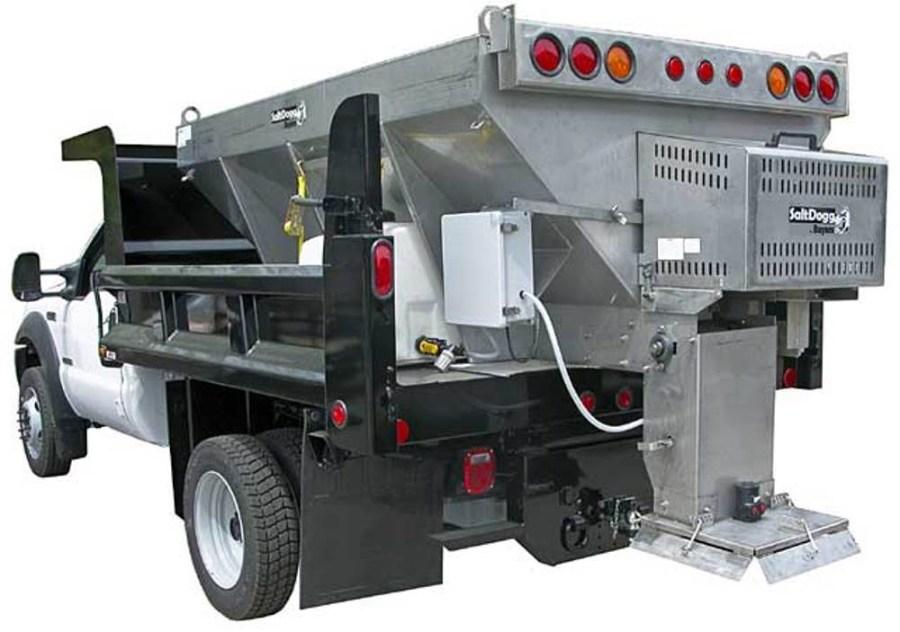

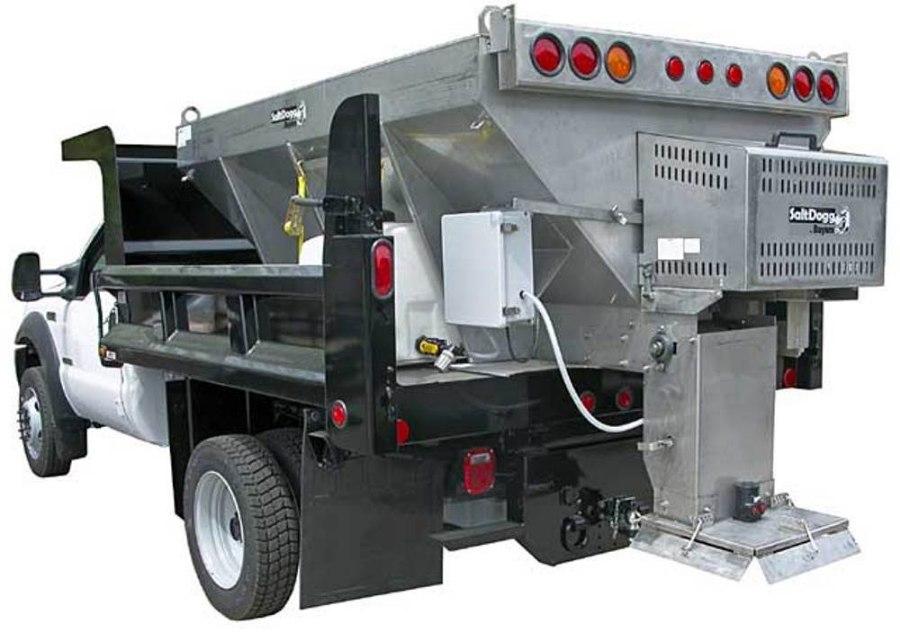

The complete assembly mounts easily on pickup, dump and platform trucks
CARBON STEEL MATERIAL HOPPER - Electrically welded 12-gauge ends and steel sides sloped at 45? are constructed with channel formed top edges
12-gauge vertical supports add extra strength to the unit
The single lift point on the cross support beam is located at the unit's center of gravity to allow for easy loading and unloading
The floor is constructed of 10-gauge steel
SD-1400100 Extended Chute - 96" Spreaders - Body Side Length, 8'; Overall Length, 113"; Width, 47"; Height, 32 -1/2"
Recommended Use, 3/4 or 1-Ton Trucks
CONVEYOR - The conveyor is made of 12"wide all-steel pintle chain with 3/16"x 3/4"cross bars
Chain strength is 11,000 lbs.per strand;22,000 lbs. total weight
Drive sprockets are 6-tooth cast iron, on a 1-1/8" diameter shaft
Conveyor chain has an adjustment range of 3-1/2"
Drive shaft has heavy-duty, sealed, self-aligning ball bearings with grease fittings
Idler drum has heavy-duty 1" diameter ball bearings
CONVEYOR GEAR CASE - Gear is constructed of aluminum bronze, worm gear is hardened steel and ground
Housing is made of durable cast iron
Gear ratio is 20:1 with 1" input shaft and 1-1/8"output shaft on tapered roller bearings
SPINNER CHUTE ASSEMBLY - A polymer disc with four fins is connected to a 3/4"diameter shaft secured on two pillow block bearings
The spreading material is guided from the conveyor to the spinner plate through an enclosed 12-gauge chute with internal and external deflectors
Adjustable deflectors allow for complete directional spread control and full or compact spread
Total spread radius ranges from 2'to 25'
The extra wide rear deflector protects the rear and under carriage of the vehicle
FEEDGATE - Lever operated with a friction lock for accurate adjustment
ENGINE - Heavy-duty 10.5 horsepower industrial/commercial Briggs & Stratton gasoline engine
Engine comes equipped with alternator and 12 volt electric starter with in-cab start/stop and electric throttle control (standard)
Entire engine is completely protected by the convenient hinged hood
ELECTRIC THROTTLE CONTROL - Throttle control unit allows for full-range of throttle settings,including idle and full choke,via the in-cab hopper control box
Use of electric throttle control eliminates cable freezing, binding and breaking
CLUTCH - 12 volt DC electric clutch has a three-position in-cab switch, for greater control and material economy

Also allows for low speed operation and spot spreading

Available in the following sizes

Item #	Capacity	Construction
SD-1400250SS	1.5 cu.yds.	Stainless Steel
SD-1400100SS	2.0 cu.yds.	Stainless Steel
SD-1400100	2.0 cu.yds.	Carbon Steel
SD-1400350SS	2.5 cu.yds.	Stainless Steel
