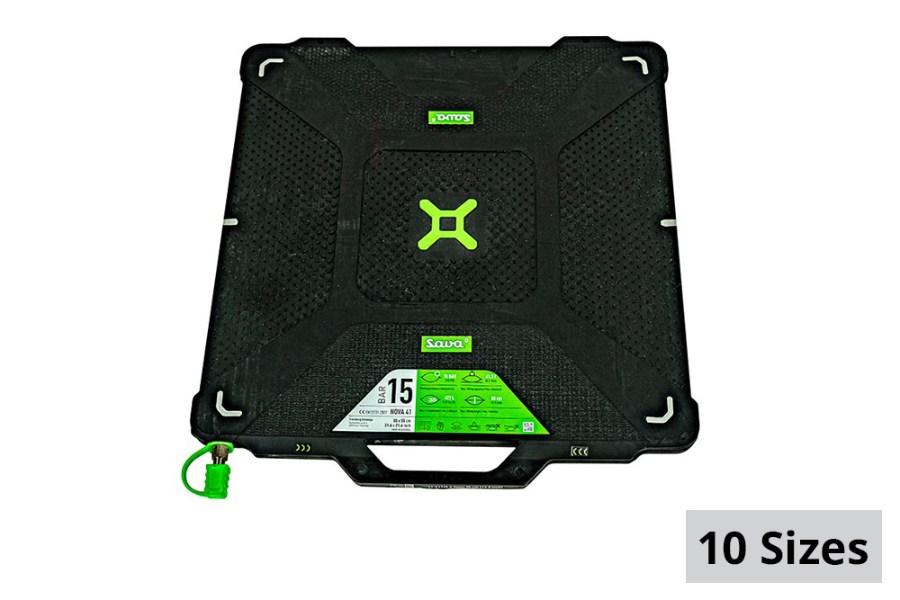

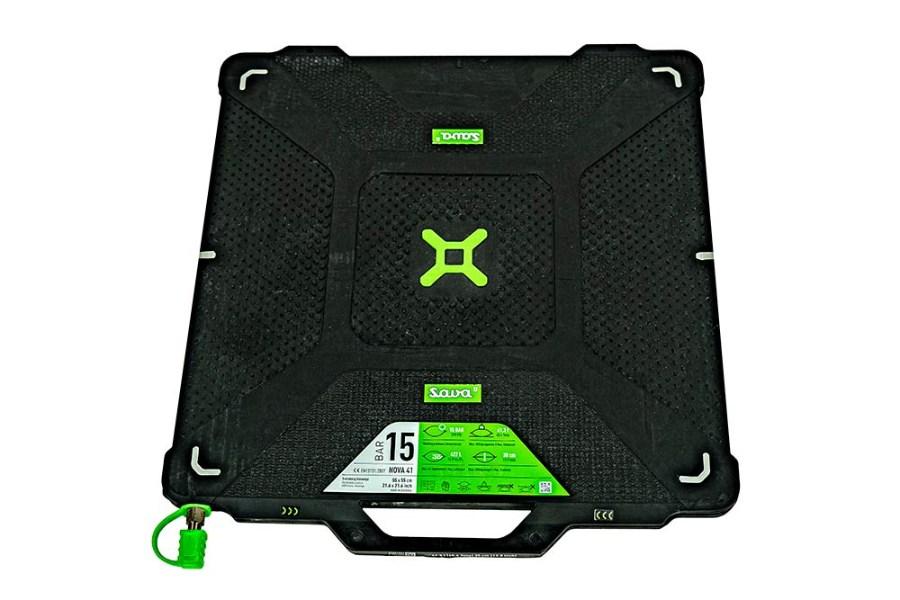

Sava Nova 218 PSI High Pressure Lift Bag

Ideal for heavy-duty rescue and recovery work, the new Nova 218 PSI/15 BAR high-pressure lifting bag from Sava is capable of lifting up to 110 tons of weight up to 17.9 high. The high-friction surface features a textured grip so the bag will not slip under the load. Reflective markings at each corner as well as a center marking help keep the bag centered on the object being raised.

Featuring an interlocking system, these rubber bags can be nested twice to achieve a higher lifting height. The bottom surface of each bag offers a negative impression of the top side for improved bag stacking. Holes located on the cone-shaped protection edges are also available to secure the stacks with ropes or cables. Please note additional bags do not increase the lifting capacity of the bags, just the achievable height.

Each bag is labeled with safety information and capacity ratings. A lift gauge on the edge helps determine the number of bags required to reach the desired height. An integrated rubber handle improves carrying and handling at the scene, and air valves are offset to keep hoses out of the way and to improve the connection and storage.

These Nova bags are built to last. The design and materials are laboratory tested for proven elasticity and abrasion resistance. The life expectancy of each bag is 15 years and duty cycle is 100,000 lifts, depending on storage, use, care and environment. Choose from 10 sizes, starting at 6 x 6 and increasing to 33 x 33 . Capacities range from 1.9 tons to 110 tons, and lift heights range from 3 to 17.9 .

• Textured, non-slip bag surface
• Reflective markings for proper placement
• Integrated carrying handle
• Interlocking stacking system
• Cone-shaped protection edge
• Holes for cable or rope
• Lift height gauge on side
• Laboratory-tested design and materials
• 15-year lifespan
• 100,000 duty cycles
• 10 sizes and capacities available
• 36 month manufacturer warranty from date of purchase

  Available in the following sizes



  Item #	Type	Length	Width	Height	Weight	Working Pressure psi	Air Requirement cu. ft.	Max Lift Capacity US Tons	Max Lift Height
  SAVA-608061	NOVA 2	6"	6"	0.9"	1.2 lbs.	218	0.18	1.9	3"
  SAVA-608062	NOVA 6	9.2"	9.2"	0.9"	3 lbs.	218	0.91	6.8	4.9"
  SAVA-608063	NOVA 13	12.6"	12.6"	1"	5.5 lbs.	218	2.59	13.5	6.9"
  SAVA-608064	NOVA 21	15.7"	15.7"	1"	8.8 lbs.	218	5.37	22.6	8.5"
  SAVA-608065	NOVA 31	18.9"	18.9"	1"	12.6 lbs.	218	9.66	34.3	10.4"
  SAVA-608066	NOVA 41	22"	22"	1"	16.5 lbs.	218	14.9	45.4	11.9"
  SAVA-608067	NOVA 51	24"	24"	1"	20.5 lbs.	218	20.66	56.5	13.2"
  SAVA-608068	NOVA 63	26.4"	26.4"	1"	24.7 lbs.	218	27.76	69.5	14.4"
  SAVA-608069	NOVA 81	30"	30"	1.1"	34.2 lbs.	218	41.21	89.7	16.3"
  SAVA-608070	NOVA 100	33"	33"	1.1"	41.9 lbs.	218	56.33	110.3	17.9"
