Note: Special Handling Fees Apply for Specific Items

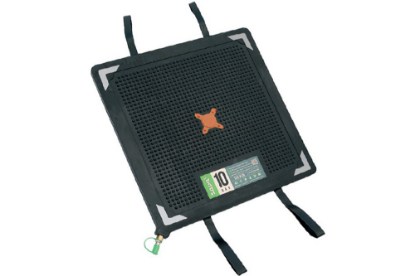

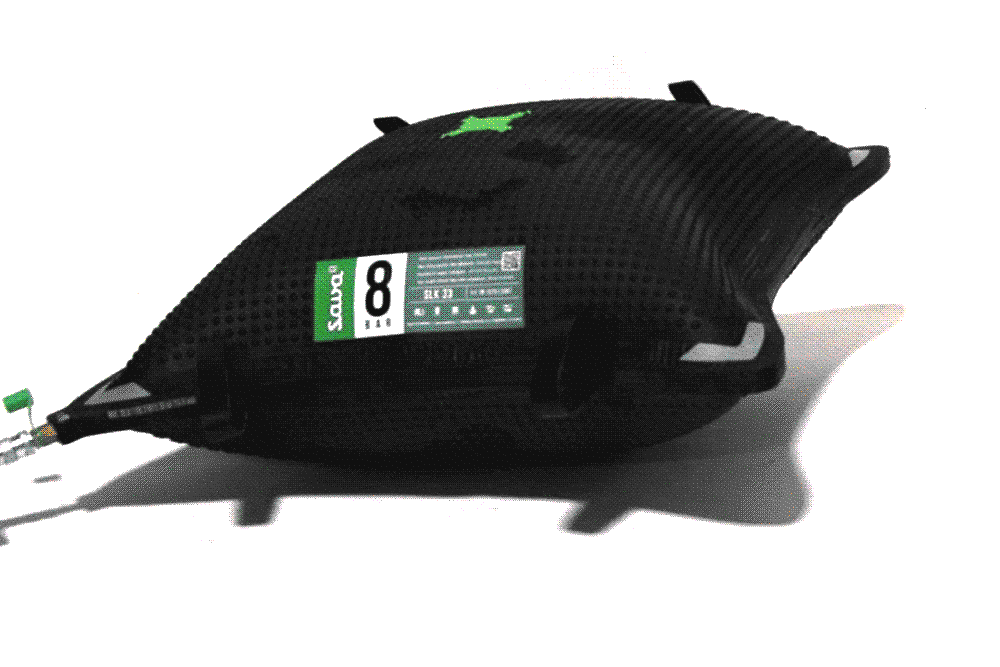

High Pressure Heavy Lifting Bags for lifting the heaviest loads; up to 74 US tons. Use when maximum lifting force is needed in low clearance situations. Exerts up to 116 pounds per square inch of contact surface. Solid brass and thick Kevlar-cord reinforced rubber pneumatic lifting system minimizes risk, sparks and damage caused by mechanical or hydraulic devices.

• Sizes: 6" - 37"
• Working Pressure: 8 BAR (116 PSI)
• Max Lifting Capacity: 1.2 - 77.4 US Ton (8 BAR)
• Max Lifting Height: 3.1" - 20.5"
• Stackable up to 2 Bags
• Thin Design
• Extreme Durability
• Stackable up to 2 Bags
• Unique Anti-Slip Surface
• Reflective Corner Markings
• Clear & Distinctive Labels
• Strong Manipulation Handles
• Cone Shaped Protective Edges
• 36 month manufacturer warranty from date of purchase
• Sold as Each

  Product Specifications



  Part Number	Type	Dimensions (LxWxH)	Weight	Working Pressure	Air Requirement	Max Lift Capacity	Max Lift Height
  77973	SLK1	6" x 6" x 1"	1.2 lbs	116 psi	0.2 cu. ft.	1.2 US Tons	3.1"
  77974	SLK3	9" x 9" x 1"	3 lbs	116 psi	0.5 cu. ft.	3 US Tons	5.1"
  77975	SLK6	12" x 12" x 1"	4 lbs	116 psi	1.5 cu. ft.	6.1 US Tons	6.3"
  76734	SLK10	15" x 15" x 1"	8 lbs	116 psi	3 cu. ft.	11.1 US Tons	8.3"
  76735	SLK14	18" x 18" x 1"	11 lbs	116 psi	5.4 cu. ft.	14.9 US Tons	9.8"
  76736	SLK21	22" x 22" x 1"	15 lbs	116 psi	10.5 cu. ft.	23.2 US Tons	11.8"
  76737	SLK25	24" x 24" x 1"	20 lbs	116 psi	14.7 cu. ft.	27.7 US Tons	13.4"
  76738	SLK33	27" x 27" x 1"	24 lbs	116 psi	21.9 cu. ft.	36.3 US Tons	15"
  76739	SLK45	31" x 31" x 1"	31 lbs	116 psi	32.5 cu. ft.	49.1 US Tons	16.5"
  SAVA-76794	SLK55	34" x 34" x 1"	40 lbs	116 psi	46.1 cu. ft.	60.5 US Tons	18.5"
  SAVA-573241	SLK70	37" x 37" x 1"	50 lbs	116 psi	53.2 cu. ft.	77.4 US Tons	20.5"

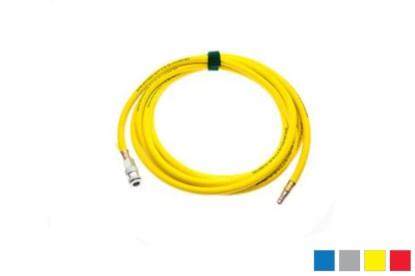

Sava inflation hoses can be used with the Sava lift bags. These hoses are available in 2 sizes and 4 different colors. This offers versatility for all jobs and the ability to identify the proper hose during operation.

This coupling adapter from Savatech allows you to attach a lifting bag airline to a standard air compressor coupler.

The Zips/Sava High Pressure Lift Bag Kit is used to lift the heaviest loads. This bag kit use maximum force in concentrated areas allowing for the user to work in tight spaces.

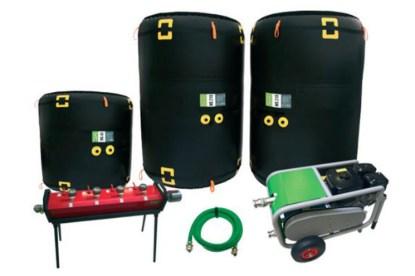

Sava Catch Bags are used to control the landing of a vehicle when up-righting it and to prevent a secondary tip-over. They are built to prevent dangerous and uncontrolled descent of any vehicle or object. Perfect in combination with SAVA low-pressure lifting bags. This kit includes catch bags, a blower, distributor and all necessary hardware and fittings.

This is a replacement Single Deadman Controller which is used in the ZIP-HPLB-KIT2 lift bag kit.

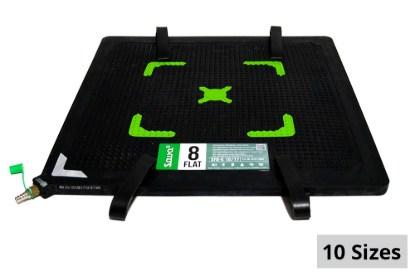

Sava Flat-Form lifting bags are designed for greater stability, greater lifting height per bag, and safer stacking. Sava Flat-Form design lifting bags eliminate the need for height/weight computation graphs and lifting height calculations. Simply stated, a 44 ton bag will lift 44 tons to the full height.

High-pressure lifting bags are used for lifting the heaviest loads. High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.

This is a replacement Sava handheld used with lift bags

Sava Landing Bags are used to catch and control the vehicle when uplifting it for a soft landing and to prevent secondary tip-over. They are built to prevent dangerous and uncontrolled descent of any vehicle or object. Perfect in combination with Sava low-pressure lifting bags.

Sava repair kit for low pressure lift bags

The Zips/Sava High Pressure Lift Bag Kit is used to lift the heaviest loads. This bag kit use maximum force in concentrated areas allowing for the user to work in tight spaces.

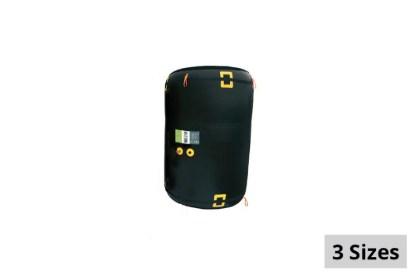

Low-pressure lifting bags are used for lifting very large objects. They have special Top Grip pads bonded to the top and bottom of the bag. Top Grip pad offers heavy duty protection from slipping, puncture, abrasion and premature wear. Used for uprighting trucks, rail cars, and other types of vehicles or structures.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

The Zips/Sava High Pressure Lift Bag Kit is used to lift the heaviest loads. This bag kit use maximum force in concentrated areas allowing for the user to work in tight spaces.

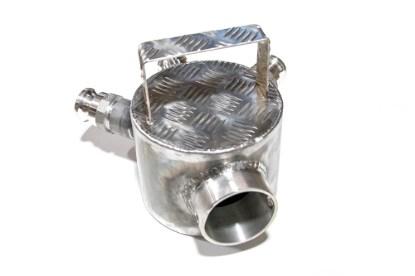

This is a 3-way distributor used to distribute air from a single blower to 3 seperate SAVA catch bags.

Sava inflation hoses used with the 0.5 BAR low-pressure lifting bags

This is a 33 foot inflation hose to be used with the SAVA Catch bag systems.

Available in the following sizes

Sava hose and shut off valve used with high pressure lift bags

Sava shut off valve with built in safety valve. This is used to control inflation hose for lift bags.

Compressed Air Mains, Male typ 26 / Male typ 23 (SAE) Replaces part number 519808USA

Sava triple deadman controller is used to control the inflation hoses while inflating lift bags.

Sava adapter for construction site compressor

Sava high pressure lift bag connector set is used to connect two-three lift bags to each other.

Sava single fitting control used with lifting bags

Sava FKT Controller used with low pressure lift bags

Sava protective storage case for deadman handheld controllers

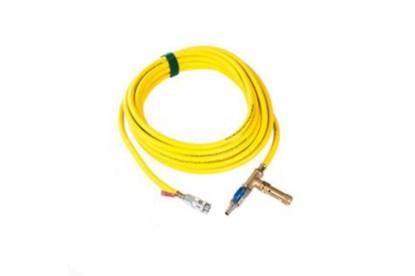

Sava inflation hose with shut-off and safety valves used with high pressure lift bags

This Vacuum/blower combo is used with the SAVA low-pressure lifting bags.

Sava yellow air supply hose used with the high pressure lift bag kits.

Low-pressure lifting bags from SAVA are used for lifting very large objects. They have special Top Grip pads bonded to the top and bottom of the bag. Top Grip pad offers heavy duty protection from slipping, puncture, abrasion and premature wear. Used for uprighting trucks, rail cars, and other types of vehicles or structures. Purchase this kit for long heavy vehicle recovery.

Low-pressure lifting bags from Sava are used for lifting very large objects. They have special Top Grip pads bonded to the top and bottom of the bag. Top Grip pad offers heavy duty protection from slipping, puncture, abrasion and premature wear. Used for uprighting trucks, rail cars, and other types of vehicles or structures. Purchase this kit for long heavy vehicle recovery.

Medium-pressure lifting bags provide high lifts. They have a soft footprint which makes them ideal for lifting softer structures since the lifting force is spread over a wider area.

Sava double fitting controller used with lift bags

Sava double fitting controller used with lift bags

Sava Load Plates

Sava Double Deadman Controller used with lift bags

Sava Double Deadman Controller used with lift bags

Sava Double Deadman Controller used with lift bags

Low-pressure lifting bags from SAVA are used for lifting very large objects. They have special Top Grip pads bonded to the top and bottom of the bag. Top Grip pad offers heavy duty protection from slipping, puncture, abrasion and premature wear. Used for uprighting trucks, rail cars, and other types of vehicles or structures. Purchase this kit for heavy vehicle recovery.

This is a SAVA blower to be used to inflate the SAVA catch bags.

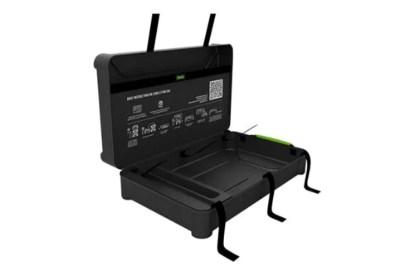

This black, hard-sided plastic carrying case is designed for the Dual or Double Deadman Controller for Vega 12 (174 PSI) and Nova 15 (218 PSI) high-pressure lifting bag systems from Sava. This protective case includes operating instructions imprinted on the inside cover, and the interior liner is formed so the controller does not need to be removed for operation. Snap clips keep the case and its contents sealed from the elements and protected during storage.

Rubber inflation hoses from Sava are color-coded for quicker identification and easier tracing at hectic lifting and recovery scenes. They are rated to 174 PSI (12 BAR) and are designed to work with Vega lifting bags. Unlike plastic, these robust rubber hoses are more durable and withstand extreme temperature swings, making them pliable and easier to handle in any condition. These reinforced hoses offer threaded ends for coupler changes in the field and are available in four colors and two lengths.

Rubber inflation hoses from Sava are color-coded for quicker identification and easier tracing at hectic lifting and recovery scenes. They are rated to 218 PSI (15 BAR) and are designed to work with Nova lifting bags. Unlike plastic, these robust rubber hoses are more durable and withstand extreme temperature swings, making them pliable and easier to handle in any condition. These reinforced hoses offer threaded ends for coupler changes in the field and are available in four colors in two lengths.

The Vega Shutt + Safety Valve from Sava allows the user to shut off supply air to Vega 12 high-pressure lifting bag systems. The blue quarter-turn valve increases safety at the rescue or recovery scene.

The Vega 12 Inflation Distributor allows crews to fill two Vega 174 PSI (12 BAR) high-pressure lifting bags at one time. Designed to increase operational efficiency at any rescue or recovery scene, the Y connection fitting is attached two rubber supply hoses. Each reinforced hose is 6.5' long and includes an air coupler at each end.

The Vega Single Fitting Controller from Sava works with Vega 12 174 PSI (12 BAR) high-pressure lifting bag systems. The contoller features a quarter-turn lever valve and one dial pressure gauges to help regulate the air pressure delivered to a downline aire hose.

The Vega Air Pressure Reducer from Sava allows crews to regulate the air pressure supplied to Vega 12 174 PSI (12 BAR) high-pressure lifting bags. The reducer features two dial gauges and a regulator to control the pressure required for the specific lifting application. Threaded ends allow for coupler changes in the field.

The Nova Air Pressure Reducer from Sava allows the user to regulate the air pressure supplied to Nova 15 218 PSI (15 BAR) high-pressure lifting bags. The reducer features two dial gauges and a regulator to control the pressure required for the specific lifting application. Threaded ends allow for coupler changes in the field.

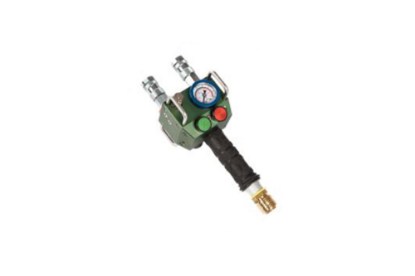

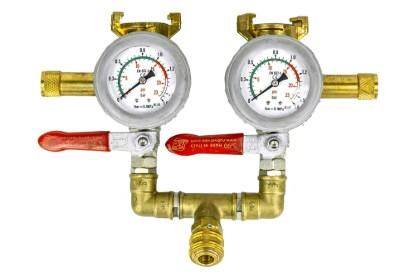

The Vega Double Fitting Controller from Sava works with Vega 12 174 PSI (12 BAR) high-pressure lifting bag systems. The contoller splits one inflation hose supply into two separate downline inflation hoses. Each line is controlled with a quarter-turn lever valve, and two dial pressure gauges help regulate the air pressure delivered to each additional air line.

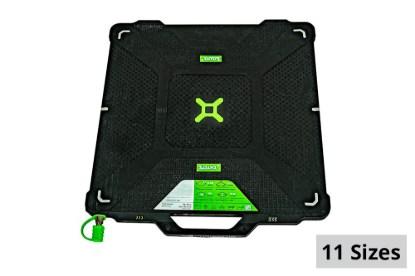

"Ideal for heavy-duty rescue and recovery work, the new Vega 174 PSI/12 BAR high-pressure lifting bag from Sava is capable of lifting up to 110 tons of weight up to 20.1 high. The high-friction surface features a textured grip so the bag will not slip under the load. Reflective markings at each corner as well as a center marking help keep the bag centered on the object being raised.

Ideal for heavy-duty rescue and recovery work, the new Nova 218 PSI/15 BAR high-pressure lifting bag from Sava is capable of lifting up to 110 tons of weight up to 17.9 high. The high-friction surface features a textured grip so the bag will not slip under the load. Reflective markings at each corner as well as a center marking help keep the bag centered on the object being raised.
