Air Compressors

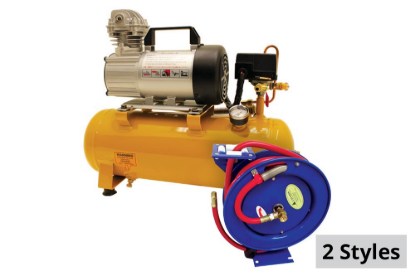

The AC12V3 portable air compressor from Phoenix USA features a 3 gallon tank and .75 HP motor and has a compact design.

Note: Special Handling Fees Apply for Specific Items

Phoenix's 12 volt portable air compressor kit includes a 25' hose reel and a 12 volt portable air compressor 3 gallon tank with an.75 HP motor. With additional features including a 25' retractable hose reel kit, the choice of the standard air hose reel or a premium air hose reel and 50 amp circuit breaker, this multi-functional piece of equipment will be the answer to all your needs. Total dimensions after being assembled are 22.75" x 19.5" x 17".

• Dimensions: 22.75" x 19.5" x 17"
• Retractable 25' hose reel
• Premium Air Hose Reel: 4625-OLP
• Standard Air Hose Reel: HR3825
• 50-amp circuit breaker
• 3-gal. tank
• .75 HP
• Weight:38 lbs
• Max. Pressure Air Compressor:120 psi
• (F)NPT Outlet:1/4 in
• Cylinder Material:Steel
• Motor RPM:1,750 RPM
• Motor Type:Universal

This 12 volt air compressor is a great way to prevent having to return home early from riding a dirt bike in your favorite remote location simply because you have a flat tire. Our 12 volt compressor can be a very useful tool for tire inflation, operating air tools, or many other camping, off-roading, or racing purposes. Can easily be stored in your toolbox, camper, or four-wheeler trailer.

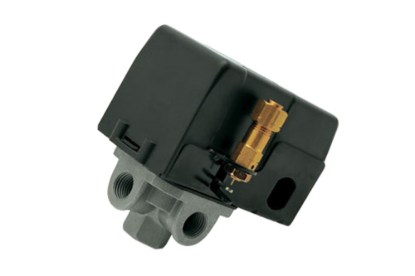

Phoenix Pressure Switch for a 12 Volt Air Compressor (part #AC12V3).

Note: Special Handling Fees Apply for Specific Items

All units include air filter, low-voltage cutoff circuit board, 4-ga. power cable, oil, mounting studs and nuts. Optional accessory kit includes pressure switch, tee fitting, street elbow, quick disconnect coupler, hex nipple and dust cap.

• Continuous-duty models feature a forced-air motor and compressor-cooling system for continued use
• Dimensions: 21"L x 7"W x 11"H


Available in the following sizes

<table style="undefined;table-layout: fixed; width: 385px;"/> <colgroup/> <col style="width: 80.75px;" //> <col style="width: 60.75px;" //> <col style="width: 86.75px;" //> </colgroup/> <thead/> <tr/> <th/>Item #</th/> <th/>Model</th/> <th/>Style</th/> </tr/> </thead/> <tbody/> <tr/> <td/>XD3000-12</td/> <td/>3000</td/> <td/>12 Volt</td/> </tr/> <tr/> <td/>XD3000-24</td/> <td/>3000</td/> <td/>24 Volt</td/> </tr/> <tr/> <td/>XD4000-12</td/> <td/>4000</td/> <td/>12 Volt</td/> </tr/> <tr/> <td/>XD4000-24</td/> <td/>4000</td/> <td/>24 Volt</td/> </tr/> </tbody/> </table/> <style/> th, td { padding-right: 20px; } .product-table-top { display: block; max-width: -moz-fit-content; max-width: fit-content; overflow-x: auto; white-space: nowrap; } </style/>

A complete on-board system that includes everything necessary for a professional installation. Heavy-duty compressor has an extended length stainless steel high-pressure hose, allowing the compressor to be separate from the tank for surface mounting. Mounting base has rubber vibration bushings. The 5-gal. tank is painted to prevent rust. It also features built-in pressure switch, manual water drain, pressure gauge and a pressure relief valve and brass fittings. The system comes complete with all mounting hardware, 10'L flexible high-pressure hose, 20'L coiled filler hose with brass fittings and installation instructions. Compressor mounted on top of tank measures 20-1/2"L x 8-1/2"W x 17-1/2"H.

This is a 12 volt permanent mount air compressor by Voltair. It is a heavy duty cast iron twin cylinder, oil lubed compressor that runs at 470 RPM. It also has a 1 HP motor that has a 90 amp draw at 100 PSI. This compress will fill a 10 gallon tank from 0 - 150 PSI in 2 minutes and 55 seconds. It will recover a 10 gallon tank from 130 - 150 PSI in 35 seconds. The motor has a 2000 hour life. The dimensions of this product are 19" H x 18.25" W x 8.25" D. This air compressor weighs 110 lbs.

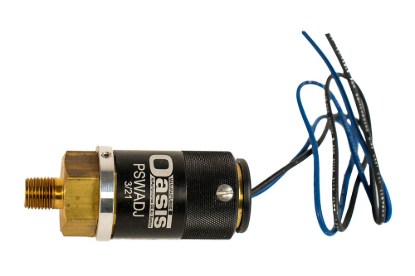

Oasis Manufacturing carries a variety of 1/4 of an inch NPT air fittings, all with dimensional compatibility with other NPT threaded fittings. Our fittings can be use to fit a threaded hole in an air cylinder, actuator, air tool handle, valve, and more. Our current selection includes adjustable pressure switches, open super chucks, male and female NPT couplers and plugs, tank and safety valves, tank gauges, and a 25-foot urethane hose.

Viair's Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

The Viair 400P Portable Compressor features a brand new I-Beam Sand Tray for improved stability and lighter weight. The 400P is a larger powerful portable tire inflator kit that can inflate up to a 35-inch tire from 0 to 30 PSI in less than 6 minutes. Used and approved of by off road enthusiasts worldwide, the 400P can save you when you re miles from home

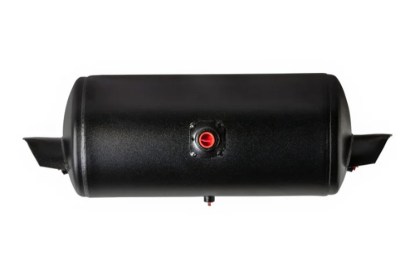

These air tanks can be mounted out of the way, such as under the vehicle of under a tool box, with only an air hose connecting the compressor. Available in 6 gallon (VA023) or 12 gallon (VA025) sizes.

This air compressor, Viair 350C, operates using low amp draw so they reversatile for many mobile pneumatic applications. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

One-piece system features two steel mounting brackets welded to the tank for easy installation. Pumps cylinder head has cooling fins to prevent overheating. Built-in pressure switch and gauge with brass fittings. Compressor is oil-less maintenance free. Comes with an in-line fuse holder with 20A fuse. Includes mounting hardware, 10'L flexible high-pressure hose and 20'L coiled fillet hose with brass fittings.

The Muncie Power Products PTO pressure switch is your best bet if you're looking for the highest quality replacement that offers optimal performance and ultimate reliability. This pressure switch is designed to meet OE standards to provide a perfect fit and functionality.

Replacement pressure switch for Voltair air compressor- 150 PSI

Note: Special Handling Fees Apply for Specific Items

Bring pneumatic power to the jobsite with Air Delivery Kits from AW Direct. These truck-mounted kits include everything you need to get more done with air tools. Equipped with all of the essentials, they are perfect for roadside assistance, construction sites and municipal work zones.

Weighing just 35 pounds, the 12V portable air compressor generates 1.70 CFM at 90 PSI and takes only 90 seconds to fill the three-gallon tank to 120 PSI. The maximum load is 45 amps. Available in three styles, the durable Reelcraft hose reel keeps your 1/4" airline stored neatly off the floor and within easy reach.

Packaged with all of the necessary accessories, each kit ships to your door ready to get to work. A three-foot long, 3/8" feeder hose with fittings supplies air from the compressor to the reel, and rubber stops help cushion the compressor as you head down the road. A two-terminal bus bar makes for a solid electrical connection.

Find the air delivery kit that works best for your operation.

Starter Kit:

• Reelcraft 4425-OLP- Low Pressure 1/4" x 25' Single Pedestal Air/ Water Hose Reel
• 12V Portable Air Compressor

Standard Kit:

• Reelcraft 5450 OLP- Low Pressure 1/4" x 50' Single Pedestal Air/ Water Hose Reel
• 12V Portable Air Compressor

Premium Kit:

• Reelcraft DP5450-OLP- Low Pressure 1/4" x 50' Dual Pedestal Air/ Water Hose Reel
• 12V Portable Air Compressor

This Premium Kit offers a ReelCraft hose reel with a dual pedestal design which is great for installing on a vehicle or truck. This rugged pedestal's two mounting arms can withstand the shaking, moving and vibrations that occur when driving down the highway or off-road applications.

Choose your preferred kit and mounting option from the drop down menu above right.

• 12V Portable Air Compressor
• 1.70 CFM at 90 PSI
• Three-gallon tank
• Reelcraft Hose Reel with 1/4" hose:
  • Starter- 25 foot air line
  • Standard- 50 foot air line with single pedestal mount
  • Premium- 50 foot air line with dual pedestal mount
• 3/8" feeder hose with fittings
• Rubber stops for air compressor
• Two-terminal bus bar

Model 860-C is a high pressure compressor that is designed for applications that require filling large volume air tanks, such as 5-gallons. The tank recovery time is shorter because of the high volume the pump produces, 3.5 CFM. The compressor is equipped with an extra long stainless steel feeder hose that allows for easier installation. The pump s cylinder and head have been designed with cooling fins that allows the compressor to have a 100 percent duty cycle. The heavy-duty 12-volt motor of the compressor is balanced to precision and there is heavy rubber bushing mounted into the base virtually eliminating all vibration. Model 860-C will provide a reliable, cost-effective solution when a heavy-duty compressor is needed.

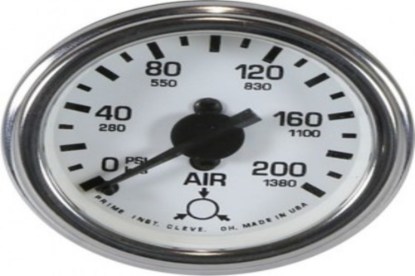

This system is ideal for powering air tools and suspension systems, and filling tires. The easy-to-install wiring harness and manifold make wiring and plumbing the system straightforward. System includes: (1) 60A fuse & fuse holder (1) 80A relay (2) 1/4"BSP adapters for air lockers (1) T-fitting 1/4" NPT Female x 1/4" NPT Female x 1/4" NPT Male (1) 1/8" to 1/4" NPT reducer (1) Wiring harness with Delphi connections (2) Delphi connector plug kits (1) Billet 1/4" NPT x 6-port manifold and mounting bracket (1) Air filter housing with installed element (2) Replacement air filter elements (1) Dash panel air pressure gauge (1) Air pressure regulator (0-200 psi) (1) 15' DOT air line.

Oasis's tank-mounted DC air compressors are designed for both commercial and industrial use. They offer two types of tank-mounted DC air compressors: The XDT10-3000 which comes equipped with the XD3000 air compressor model and the new XDT-4000 which comes equipped with the latest XD4000 air compressor model. Both DC air compressors are mounted on a 10 gallon ASME coded tank. These tank-mounted DC air compressor packages are designed for both work truck and tow truck applications.

Viair 88P is a newly-designed, powerful portable tire inflator, capable of inflating up to 33-inch tires. Attach the heavy duty battery clamps to your vehicle s battery, and start the engine. Connect to a tire valve stem and turn the unit on. Tire pressure can easily be checked using the gauge incorporated into the top of the unit.

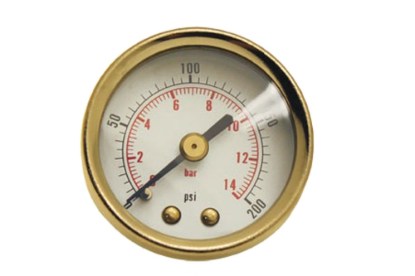

Phoenix Pressure Gauge for a 12 Volt Air Compressor (part #AC12V3).

Replacement belt for Voltair Air Compressor.

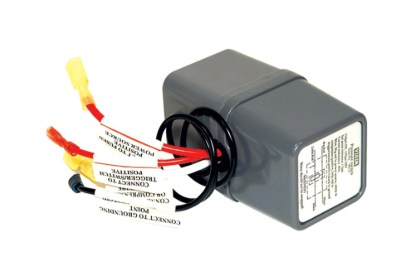

Pressure Switch,Relay,12V Only,1/8"NPT.

Portable compressors with automatic shutoff come into play when moving from tire to tire, and when checking tire pressure in the middle of a tire fill. A typical portable compressor must be turned off between tire fills, and anytime you want to check tire pressure. If you aren't near the compressor, this can turn into running laps back and forth to the portable compressor to turn the unit on and off. Automatic portables do not work in this fashion and will save you time & effort to get tires inflated quickly.

12 Volt replacement motor for Voltair Air Compressor- #VA12
