Viair Ultra Duty Onboard Air System

Leave a Review

Shop all Viair Corporation products

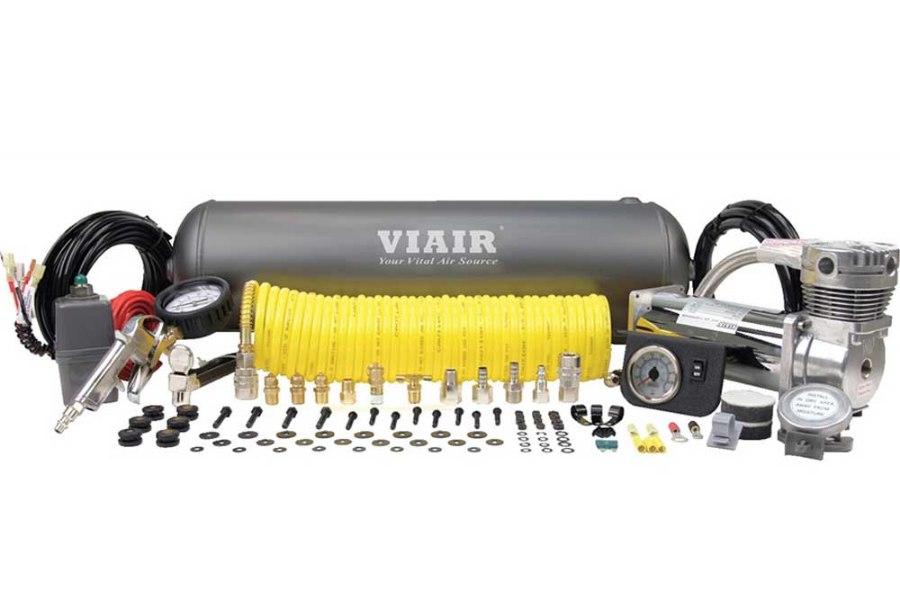

Picture of Viair Ultra Duty Onboard Air System

Video of Viair Ultra Duty Onboard Air System

SKU: VIA20001

Price: $720.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Viair's Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" IS 10-11 ft/lbs. Recommended torque for 1/4" and 3/8" is 16-18 ft/lbs.

2.5 Gallon 200 PSI VIAIR Air Tank
480C Chrome VIAIR Air Compressor w/Thermal Overload Protector
Tire Inflation Gun with 200 PSI Gauge
Dash Panel Gauge with ON/OFF Switch
30 ft Coil Hose with Quick Connects
Pressure Switch (165 PSI on, 200 PSI off)
Reducer: 1/8" (F) to 1/4" (M)
Reducer: 3/8" (F) to 1/4" (M)
1/4" Quick Connect Stud (F)
1/4" Quick Connect Coupler (F)
1/4" 25 0 PSI Safety Valve
1/4" Drain Cock
(3) 1/4" Compression Fittings
20 ft 12-Gauge Wire with Inline Fuse Holder
4" Strip of Continuous Grommet Material
Accessory Airline
Electrical Connections

Specifications:

12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 200 PSI
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Old Part Number: VAOS

Documents

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #
VIA20001	20001	818114002106
