Viair High-Speed Universal Air System

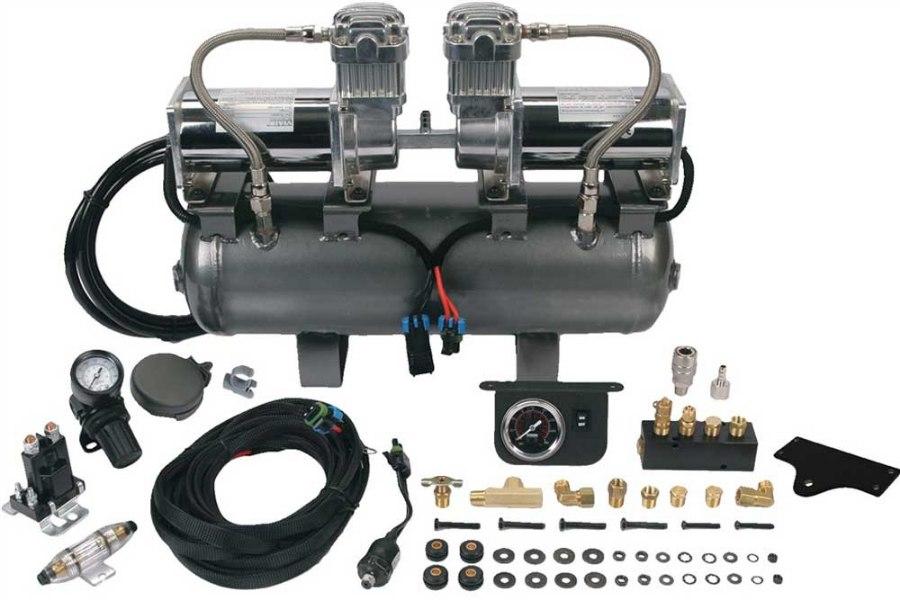

This system is ideal for powering air tools and suspension systems, and filling tires. The easy-to-install wiring harness and manifold make wiring and plumbing the system straightforward. System includes: (1) 60A fuse & fuse holder (1) 80A relay (2) 1/4"BSP adapters for air lockers (1) T-fitting 1/4" NPT Female x 1/4" NPT Female x 1/4" NPT Male (1) 1/8" to 1/4" NPT reducer (1) Wiring harness with Delphi connections (2) Delphi connector plug kits (1) Billet 1/4" NPT x 6-port manifold and mounting bracket (1) Air filter housing with installed element (2) Replacement air filter elements (1) Dash panel air pressure gauge (1) Air pressure regulator (0-200 psi) (1) 15' DOT air line.

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. 2ON2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.

Note: 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.

• Electrical Output: 12V DC
• Produces: 4.55 CFM @ 0 psi, 33% duty cycle at 100 psi
• Maximum Working Pressure: 150 psi
• Maximum Draw: 59A
• Dimensions: 18.5"L x 5.9"W x 13.5"H
• Net Weight: 30 lbs
• Old Part Number: VA22
