Cylinder and Pin Replacement

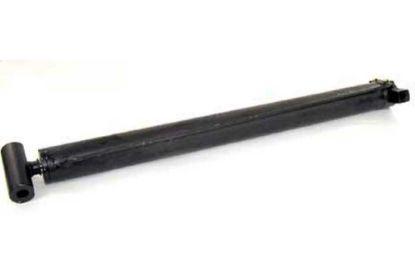

This is the Swing L-Arm Cylinder, also known as the Claw Cylinder, for autoload wreckers by Miller Industries. This cylinder will fit Century Express 300 Series, Midnight Express Series, Challenger 4300 Express Series, Holmes 440SL, Vulcan Modular 807, 810 Intruder and 810 Power Tilt Wreckers. To view part schematics click the Brochures tab.

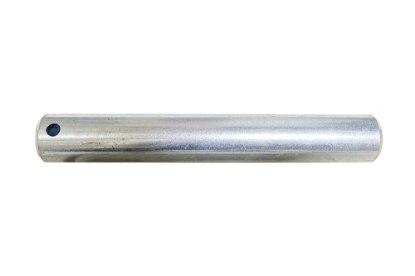

This is the rear extend cylinder pin for many light duty wreckers by Miller Industries. This pin will work with most Century, Challenger, Champion, Holmes and Vulcan light duty wreckers. This pin measure 6" long with a diamter of 7/8". To view specific wrecker models this pin fits see Features below.

This is the L-Arm side, Swing L-Arm Cylinder Pin. This pin fits cylinder part number 12-0303844. This pin fits Century, Challenger and Vulcan wrecker models. To view specific models see Features below. To view part schematics click on the Brochures tab.

This is the front extend cylinder pin for the wheel lift extend cylinder on Miller Industries Light Duty Wreckers. It replaced part number 12-0703345. To view what models this pin fits on please see Features below. To view part schematics click on the Brochures tab.

This 12-004086 Seal Kit fits 10 Series Century, Holmes, Champion Wheel-lift In/Out Cylinders using a 0302178 Cylinder 2.5" x 60" to 12/2002. This seal kit will also fit wheel lift extend cylinder, 12-0303020, on Century, Challenger, Champion, and Holmes Light Duty Wrecker Models. Please remember that seal kits may fit different cylinders of the same diameter. See the chart below for more information.

This is a replacement seal kit for the swing L-arm cylinder for autoload wreckers by Miller Industries. This seal kit if for cylinder part number: 12-0303844.

This is the Wheel Lift Extend Cylinder on Light Duty Wreckers by Miller Industries. This extend cylinder will fit on the following models. The Century 300 Express Series, The Century 300 Modular Express Series, The Challenger 4300 Express Series, The Holmes 440SL Series, The Vulcan Modular 807, The Vulcan 810 Intruder, The Vulcan 812 Intruder, and The Vulcan 810 Power Tilt. To view part schematics click the Brochure Tab.

This seal kit is designed to withstand the temperatures and pressures of hydraulic cylinders and can help operators get the maximum productivity out of their machine. Resealing cylinders is one way to help lower operating costs and improve the performance of your machines hydraulic system. This cylinder fits the wheel-lift lift cylinder used on both car carriers and light duty wreckers. See Features below to view specific models of each. To view part schematics click the Brochures tab. Please remember that seal kits may fit different cylinders of the same diameter. See the chart below for more information.

This is a Seal Kit for the Boom Lift Cylinder on Century and Holmes Light Duty Wreckers by Miller Industries. This seal kit will fit the lift cylinder on Century Formula I Duplex Tilt 411 & 412, and Holmes HP 552 / DFT 650. To view part schematics click on the Brochures tab.

This is the Seal Kit for the Boom Extend Cylinder on Miller Light Duty Wreckers. This seal kit is for cylinder part number 12-0301755. To view what models this will fit see Features below. To view part schematics click the Brochures tab.

This is the clevis pin for the Swing L-Arm cylinder on the Century Express 300 Series, Holmes 440SL and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This clevis pin measures 5/8" x 1.5". This pin is used to connect the swing L-arm cylinder to the swing L-arm. To see which specific models this pin fits please see Features below. To view part schematics click on the Brochure tab.

This is a Pin that is used in different locations on the Wheel Lift of Century Formula I Duplex Tilt 411 & 412, and Holmes 440 Series / DFT 400 light Duty wreckers by Miller Industries. This pin is used to hold the tilt cylinders on to the wheel lift frame weldment. This pin also is used to attach the upper arm weldments to the wheel lift frame weldment also. To view part schematics click on the Brochure tab.

This is a replacement auto grip claw cylinder for second generation auto grip autoloaders, 2003 and up. Right hand claw cylinder. This is the cylinder that moves your right wheel retainer on your wheel lift.

This is a 1" Snap Ring by Miller Industries. This snap ring is used on the wheel lift extend cylinder pin. This snap ring secures the pin in place. To view the part schematic click on the Brochure tab.

This is a replacement Seal Kit for Wheel Lift Fold Cylinder 12-0302919.

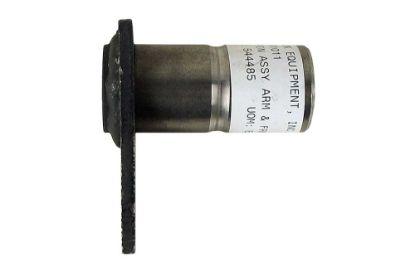

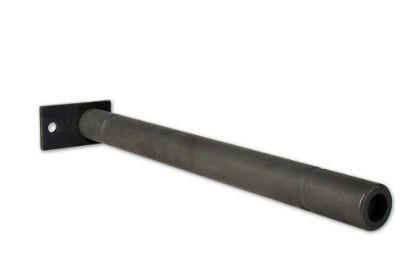

This is the weldment pin that connects the outer stinger to the parallel arms on a Formula I 411/412 by Miller Indstries. See brochure for reference chart.

Replacement Auto Grip Claw Cylinder for Chevron second generation 2003 and up. Left hand claw cylinder.

Note: Special Handling Fees Apply

This is the Lift Cylinder on the Wheel Lift of Century Wreckers with the Formula I and Formula 6500 Wheel Lifts. It is used on the Century Formula 6500 - 600 Series and the Modular 400 & 600 Series with these wheel lift options. To view part schematics click the Brochure tab.

• Uses holding valve part number <a href="http://zips.com/parts-detail/holding -valve-sterling-12-0304567" target="_blank"/>12-0304567</a/>

  Fits:
• Century Formula 6500, 600 Series REV A
• Century Modular 400 & 600 (01/2009 - Current)

This is the Wheel Lift Extend Cylinder Base End Pin for Century Modular Midnight Express and Modular 211's. This pin also will fit Holmes 440SL, Vulcan Modular 804, 806, and 807 wreckers. It will also work with the Vulcan 810 Power Tilt light duty wrecker by Miller Industries. To view specific models see Features below. To view part schematics click the Brochure tab.

This is a replacement wheel lift upper arm pin weldment on Light Duty Century and Holmes Wreckers by Miller Industries. This pin attaches the wheel lift upper arm weldment to the outer boom weldment of the wheel lift. This pin fits the Century Formula 6500, 600 Series and Modular 400 & 600 Series. It will also fit the Holmes HP 552/DFT 650 wrecker. To view the part schematics please click the Brochures tab.

This is the base lift cylinder pin on the wheel lift of Century, Challenger and Holmes wreckers by Miller Industries. This pin replaces part number 12-0801012. This cylinder pin will fit the following wreckers: Century Formula I - Duplex Tilt 411 & 412, Formula I - Duplex Tilt Super Six & 500, Formula 6000 - 600 Series, Formula 6500 - 600 Series, Metro I - Duplex Tilt, Challenger 4700 Series, and the Holmes 440 Series. To view year ranges see Features below. To view part schematics click on the Brochures tab.

This is a 2.5" Wheel Lift Fold Cylinder on Century Modular Midnight Express, Holmes 440SL and Vulcan 810 Intruder light duty wreckers. To view specific wrecker models please see Features below. To view part schematics click on the Brochure tab. This part can be used to replace Part Number, 810700000.

This is a replacement wheel lift upper arm pin weldment on Light Duty Century and Holmes Wreckers by Miller Industries. This pin attaches the wheel lift upper arm weldment to the frame weldment. This pin fits the Century Formula 6500, 600 Series and Modular 400 & 600 Series. It will also fit the Holmes HP 552/DFT 650 wrecker. To view the part schematics please click the Brochures tab.

This is the Wheel Lift Extend Cylinder Pin for the wheel lift of many light duty wreckers by Miller Industries. This extend cylinder pin fits the following wreckers: Century Modular 300 Express Series, Century Modular Midnight Express, Century Modular 211, Holmes 440SL, Vulcan Modular 804, 806, and 807, and the Vulcan 810 Power Tilt. This pin measures 5.88" long with a diameter of 7/8". To view specific models and year range for each model see Features below.

This is the seal kit for the wheel lift tilt cylinder on the Century Formula 6500 - 600 Series light duty wrecker by Miller Industries. To view part schematic click on the Brochure tab.
