Sava Vega 174 PSI Hight Pressure Lift Bag

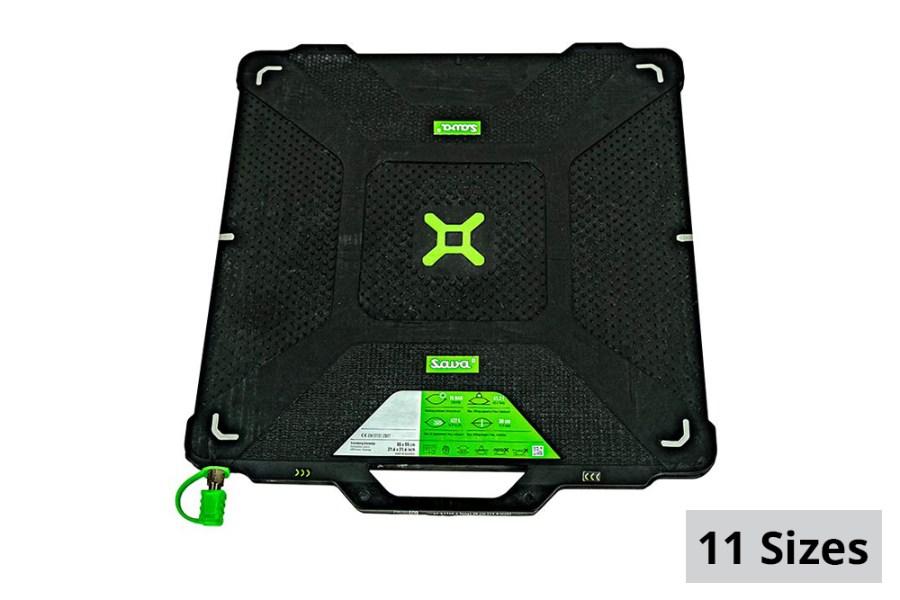

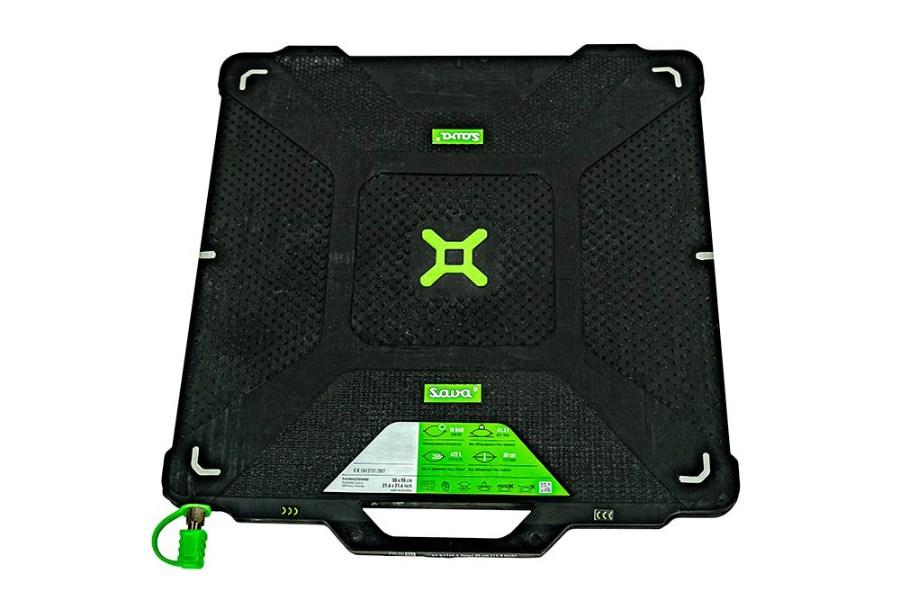

"Ideal for heavy-duty rescue and recovery work, the new Vega 174 PSI/12 BAR high-pressure lifting bag from Sava is capable of lifting up to 110 tons of weight up to 20.1 high. The high-friction surface features a textured grip so the bag will not slip under the load. Reflective markings at each corner as well as a center marking help keep the bag centered on the object being raised.

Featuring an interlocking system, these rubber bags can be nested twice to achieve a greater lifting height. The bottom surface of each bag offers a negative impression of the top side for improved bag stacking. Holes located along the cone-shaped protection edges are also available to secure the stacks with ropes or cables. Please note additional bags do not increase the lifting capacity of the bags, just the achievable height.

Each bag is labeled with safety information and capacity ratings. A lift gauge on the edge helps determine the number of bags required to reach the desired height. An integrated rubber handle improves carrying and handling at the scene, and air valves are offset to keep hoses out of the way and to improve the connection and storage.

These Nova bags are built to last. The design and materials are laboratory tested for proven elasticity and abrasion resistance. The life expectancy of each bag is 15 years, and the duty cycle is 100,000 lifts, depending on storage, use, care and environment. Choose from 11 sizes, starting at 6 x 6 and increasing to 36.5 x 36.5 . Capacities range from 1.5 tons to 110 tons, and lift heights range from 3 to 20.1 . "

• Textured, non-slip bag surface
• Reflective markings for proper placement
• Integrated carrying handle
• Interlocking stacking system
• Cone-shaped protection edge
• Holes for cable or rope
• Lift height gauge on side
• Laboratory-tested design and materials
• 15-year lifespan
• 100,000 duty cycles
• 11 sizes and capacities available
• 36 month manufacturer warranty from date of purchase


Product Specifications



Item #	Type	Length	Width	Height	Weight	Working Pressure psi	Air Requirement cu. ft.	Max Lift Capacity US Tons	Max Lift Height
SAVA-608046	VEGA 2	6"	6"	0.9"	1.2 lbs.	174	0.16	1.5	3"
SAVA-608047	VEGA 5	9.2"	9.2"	0.9"	3 lbs.	174	0.79	5.4	4.9"
SAVA-608049	VEGA 10	12.6"	12.6"	1"	5.5 lbs.	174	2.24	11.1	6.9"
SAVA-608050	VEGA 17	15.7"	15.7"	1"	8.8 lbs.	174	4.65	18.4	8.5"
SAVA-608051	VEGA 25	18.9"	18.9"	1"	12.6 lbs.	174	8.33	27.6	10.4"
SAVA-608052	VEGA 33	22"	22"	1"	16.5 lbs.	174	12.89	36.5	11.9"
SAVA-608053	VEGA 41	24"	24"	1"	20.5 lbs.	174	24.05	45.3	13.2"
SAVA-608054	VEGA 50	26.4"	26.4"	1"	24.7 lbs.	174	31.68	55.2	14.4"
SAVA-608055	VEGA 65	30"	30"	1.1"	34.2 lbs.	174	35.67	71.7	16.3"
SAVA-608056	VEGA 80	33"	33"	1.1"	41.9 lbs.	174	48.77	88.2	17.9"
SAVA-608057	VEGA 100	36.5	36.5"	1.1"	51.4	174	66.92	110.2	20.1
