Zip’s AW Direct stocks a variety of high-quality winches you can count on to provide the pulling power you need for any rigging, lifting and recovery situation. Rely on such trusted manufacturers as Warn, Ramsey and Mile Marker to supply the right winches for your ATVs and off-road vehicles. Truck and trailer winches and industrial winches for cranes and wreckers are also available here. Gear options include hydraulic worm and planetary drives with manual clutch, air clutch and remote clutch. Choose from short drum, long drum and standard drum with A-Rotation, B-Rotation, Clockwise and Counterclockwise motion. Manual cable hoists, hand winches and come-along winches can also be found online at Zip's AW Direct.
Note: Special Handling Fees Apply for Specific Items
One of the most popular winches in the Towing & Recovery industry. These 8000
lb. Ramsey Winches are used on most Chevron and many other tow trucks and car
carriers. These winches are just the basic winch with no hydraulic motor. This
makes it more economical to replace your old winch rather than to repair it.
Model: HD-234R
Line Pull: 8,000 lbs
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
See Brochures for Product Drawings
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA
Applications
Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer
Winch Mount Configuration
Model Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 28'/min / 8.5m/min
Gear Ratio: 34:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
(Includes auxiliary brake)
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 2,375 PSI (164 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 3.6 Cu. In. (59 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric
HD-234R Specifications:
Ramsey Part Number: 121807
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Ram-Lok
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA
HD-200R Specifications:
Ramsey Part Number: 121818
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Lever
Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA

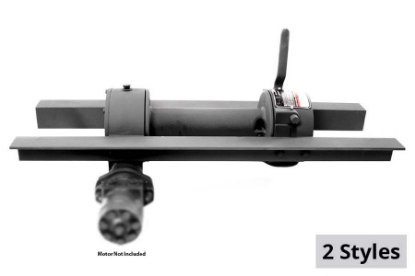

For an alternative winch see part number H-246
Replaces part number 12-0300250
HD-234RA Specifications:
Ramsey Part Number: 121797
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Air Shift
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
One of the most popular winches in the industry. These 8000 lb. Ramsey
Winches are used on most Century, Vulcan and many other tow trucks. These
winches are just the basic winch with no hydraulic motor and no mounting
angles. This makes it more economical to replace your old winch rather than
repair it.
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount.
Previously listed under part number: HP4D.
Note: Special Handling Fees Apply for Specific Items
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount,
this versatile winch is also available with an optional remote control air
shifter with clutch engagement indicator light.
These cable pullers are made with the highest quality components, including one-piece, precision-cast, aluminum alloy ratchet wheels; drop-forged steel slip hooks; and galvanized, aircraft-quality cable. It features "notch-at-a-time" let down for complete control of the load, plus a non-slip plastic hand grip. It features a heavy-duty reinforced ratchet guard with a 360 swivel, and it uses cable swaging to secure the cable to terminal end.Options:1-Ton Pow'r Come-along features galvanized 3/8" dia. cable.2-Ton Pow'r Come-along features galvanized 3/16" dia. cable.3-Ton Pow'r Come-along features galvanized 5/16" dia. cable.
This Warn Industries Series 12 hydraulic Winch is vehicle mounted and has a
pull capacity of 12,000 pound. It comes without wire. Note: This Winch will
require winch mount for proper installation.
This Industrial-Grade Winch features a planetary gear for the fastest line
speeds available getting you out of hazardous traffic quicker. Winch has a
disc brake for sure-load holding and a free spooling clutch on the driver's
side. Use with 9-3/4" drum width and 7/16" x 125' rope capacity.
The Zips Sierra Winch Worm Gear Replacement Kit updates the Ramsey Sierra winch to a Ramsey 4 ton second generation worm gear winch. This kit includes the worm style winch, fluid tubes, clutch control, and 45 degree fittings.
Rugged worm gearing results in faster line speeds that get you to your next job faster. These High-Speed Hydraulic Industrial-Grade
Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in y
our truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Passenger side mount.Op
tions:Series HD350 features 2,200 psi retracted height.Series HD200 features 2,500 psi retracted height.
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount.
Previously listed under part number: HP4D.
Note: Special Handling Fees Apply for Specific Items
There's something especially frustrating about a winch breaking down on the job, and needing to head somewhere else to fix it. Well, with the Ramsey Omega 8000 lb Hydraulic Winch, that's a problem of the past. Able to be fixed in the field, you can save money and not have to worry about not meeting your deadlines.
Of course, that's not even the best part. This hydraulic winch comes in two varieties, a manual shift and an air shift. This means you can get what fits you best. However, both are built to perform under extreme conditions. Whether you need the winch for towing or factory work or something else, this winch can perform for you1

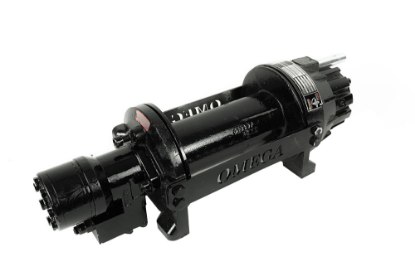

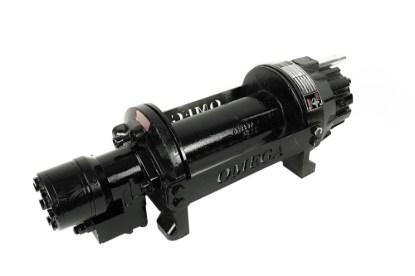

Finally, the Ramsey Omega 8000 lb Hydraulic Winch was built to last. Its automatic load-holding brake ensures reliability as you use it. Plus the Ramsey tensioner allows the winch cable to spool evenly. As a result, the winch cable lasts longer because it avoids wear and tear.
The Mile Marker SEC12 premium Jeep/Truck/SUV winch with an impressive 12,000
pound pull strength stands up to the most aggressive off-road environments.
Powerful series-wound motors and rugged planetary gear sets are the backbone of
this winch. With robust controls, fully sealed 400-amp solenoids and body, and
an integrated kill switch, the SEC12 is an industry proven winch at an
unmatched value.
When you're in the shop and have access to a power source, just plug-in
PullzAll and let it help you tackle those labor intensive chores. Move heavy
machinery. Hoist an engine block. Lift a load precisely into place, then nail
it, weld it, whatever it. You think up the task, and PullzAll flat out
revolutionizes the amount of work one man can do:
This Industrial-Grade Winch features a planetary gear for the fastest line speeds available?getting you out of hazardous traffic qui
cker. Winch has a disc brake for sure-load holding and a freespooling clutch on the driver's side. Use with 9-3/4" drum width and 7/
16" x 115' rope capacity.
Winch line sold separately.
Work Faster: Winch features a planetary gear that delivers the fastest line speeds available
Hardened Aircraft-Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing, Utility and Trailer Applications.
Recovery Operations. These Products Comply with World-Wide Quality and Safety
Standards. This specific model has a 10.4 cu. in hydraulic motor with a manual
clutch. Also has a spring applied disk braking system.
Hardended Steel, Two-Stage Planetary Gear Trains Deliver Efficient and Reliable
Operation Plus Fast Line Speeds. The Product Line has Expanded to Include a New
Family of 9,000 lbs. Worm Gear Winches. All are Designed for Heavy-Duty Towing
and Recovery Operations. These Products Comply with World-Wide quality and
Safety Standards.
Rugged worm gearing results in faster line speeds that get you to your next
job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches
allow you to operate from driver side of truck and feature Ram-Lok? clutch,
which provides easy freespooling. Low mount in your truck bed with L-shaped
mounting channels. Spool direction is counterclockwise (over the drum)
rotation. Retracted height is 1,800 psi. Options: Series H234 features 3/8" x
140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x
75' wire rope capacity and passenger side mount. Series H246 features 3/8" x
140' wire rope capacity and passenger side or driver side mount.
The all new line-up of Series G2 DC Electric winches are ideal for first
responders, utility vehicles, and other applications where an electric winch is
preferred. New levels of performance, durability, and efficiency help to get
the job done quickly and reliably time after time. The Warn Series G2
represents the latest in the Warn Industrial planetary gear winch lineup.
All-new modular configurations, improved levels of performance, and best-ever
durability are features that allow you to work smarter.

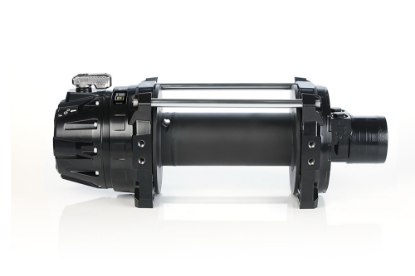

This Warn Series 9 hydraulic winch has 9,000 lb. of pulling power. Hardened steel and two-stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Warn winches are designed for Heavy-Duty Towing and Recovery Operations. They comply with world-wide quality and safety standards. This specific model comes with the 4.9 cu. in clockwise motor and has a pulling force rating of 9,000 lbs., due to the hydraulic motor sizing.
Clockwise, 4.9 cu in motor
Rated pulling force: 9000 lbs. (4082 kg)
Drum barrel diameter: 4.00 in (102 mm)
Drum flange diameter: 8.24 in (209 mm)
Distance between flanges: 9.95 in (253 mm)
Recommended maximum wire rope diameter: 1/2 in (12.7 mm)
Recommended minimum wire rope breaking strength: 15,100 lbs. (6849 kg)
Approximate shipping weight: 98.0 lbs. (44.5 kg)
Perfect for towing, utility and trailer applications
Heavy Duty automatic disc brake provides dependable operation
Meets SAE J706 CE standards
Wire rope, roller fairlead, and tensioner sold separately
Gear reduction: 27:1
Hardened steel, two-stage planetary geartrain provides faster line speeds
4.9gpm, Clockwise drum rotation
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components
Specifications
Type: Hydraulic
Mount Type: Vehicle Mounted
Recommended Use: Industrial
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Electrical Control Type: Not Applicable
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 27:1
Free Spooling: Yes
Brake Type: Disc Brake
Line Diameter (in): No Rope
Line Length (ft): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms To J706 Standards: Yes
Mounting Hole Quantity: 8
Operation Type: Automatic
Mounting Pattern Length (in): 12 Inch
Mounting Pattern Width (in): 4-1/2 Inch
Includes Mounting Hardware: No
Color: Black
Max Line Pull/Line Speed: 9000 Pound/28.5 Feet Per Minute
Patriot 15,000 - Proven three-stage planetary gear system design for fast line speed. Easy to use and verify engagement spring
loaded pull and rotate clutch design for free spooling-Patriot 15,000. Weather
resistant solenoid assembly.
Warn Industries Series 20XL-LP winch. This winch has a 20,000 lb. pulling
capacity and is designed for use on trailers, rollback trailers, and heavy-duty
applications. LP stands for "Low Pressure" and means this winch uses a larger
displacement motor to pull full rated load at only 2200 psi. This makes the
Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.
Rugged worm gearing results in faster line speeds that get you to your next job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in your truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Retracted height is 1,800 psi.Options:Series H234 features 3/8" x 140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x 75' wire rope capacity and passenger side mount.Series H246 features 3/8" x 140' wire rope capacity and passenger side or driver side mount.
For electrically powered applications, Warn industrial offers a comprehensive line of products to meet or exceed your expectations.
All Electric Winches feature heavy duty 12 or 24 Volt Series wound industrial motors and hardened steel three stage planetary gear
trains that provide efficient and reliable operation. Every Warn industrial planetary Winch complies with the world's most
stringent standards, including SAE J706 and NFPA
Patriot Profile 12,000 R 12V W/Wireless Remote-Efficient 5.5 HP 12 V DC series
wound electric reversible motor for increased pulling power. Proven three-stage
planetary gear system design for fast line speed. Cam action clutch disengages
planetary gear system for free spooling-Patriot 12,000.
The RHINO PULL 1000™ will give you the power to pull items anywhere you need it, including the garage, workshop, or the farm. This portable winch can even go with you if you are hunting. This ergonomically designed tool features 39’ of synthetic rope, a variable speed hand controller, a wireless control that can work up to 50’, and a corded remote if the wireless remote battery is not maintained.
The Mile Marker SEC15 premium Jeep/Truck/SUV winch is heavy on power, but light
in weight, the SEC15 sets the industry standard for performance. Featuring a
compact design, the SEC15 weighs 85 pounds with an impressive pull strength of
15,000 pounds. Boasting 25% less weight than other winches in its class, the
SEC15 mounts easily and is an excellent choice for full size trucks looking for
big winch power without adding big winch weight to the vehicle s front end.
Fully sealed, submersible, water, mud, and snow proof, the all metal, 3 stage
planetary gear train provides the durability and reliability you can depend on
in the most extreme situations and elements.
One of the most popular winches in the industry. These 8000 lb. Ramsey Ram-Lok
Winches are used on most Chevron and many other tow trucks and car carriers.
These winches are just the basic winch with no hydraulic motor. This makes it
more economical to replace your old winch rather than to repair it.
Ramsey REP 8000 with 12' Wire Pendant-Proven three-stage planetary gear
system design for fast line speed. Cam action clutch disengages planetary gear
system for free spooling.
RE Series of worm gear winches has set the standard for rugged reliability for
the consumer self-recovery and light industrial applications. The Ramsey RE
series of winches share many of the same components from our industrial rated
line of worm gear winches making the RE the best choice for those who need a
rugged and dependable winch for tough off-road applications, Self-recovery and
light industrial use.
Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply
with World-Wide quality and Safety Standards. This specific model has a 7.9 cu.
in hydraulic motor with a manual clutch. Has a gear reduction of 28.5:1 with a
spring applied disk for a braking system.
QM 8000 12V w/12' Wire Pendant- Used with a class-three rear receiver hitch
with 5,000 lbs. minimum weight carrying (WC) rating (Receiver must not be
recessed more than 1 1/4" from bumper face). Proven three-stage planetary gear
system design for fast line speed. Cam action clutch disengages planetary gear
system for free spooling.
QM 9000 12V with 12' Wire Pendant-Used with a class-three rear receiver hitch
with 5,000 lbs. minimum weight carrying (WC) rating (Receiver must not be
recessed more than 1 1/4" from bumper face). Proven three-stage planetary gear
system design for fast line speed. Cam action clutch disengages planetary gear
system for free spooling.
Patriot Profile 12,000 R with efficient 5.5 HP 12V/24V series wound electric reversible motor for increased pulling power.
Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for
free spooling-Patriot 12,000. Available in 12' pendant wired or wireless controller.
Patriot 9500 UT - Semi-Automatic Clutch revolutionary design reduces winching
time. Wireless Remote can operate winch from up to 50' away. Sleek new
solenoid housing increases structural integrity of the winch. Sealed high
torque 5.5 HP 12 V DC series wound electric reversible motor for increased
pulling power. Sealed drum & gear housing assembly to keep the elements out of
the winch.
RE Series of worm gear winches has set the standard for rugged reliability for
the consumer self-recovery and light industrial applications. The Ramsey RE
series of winches share many of the same components from our industrial rated
line of worm gear winches making the RE the best choice for those who need a
rugged and dependable winch for tough off-road applications, Self-recovery and
light industrial use.
Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply
with World-Wide quality and Safety Standards.
