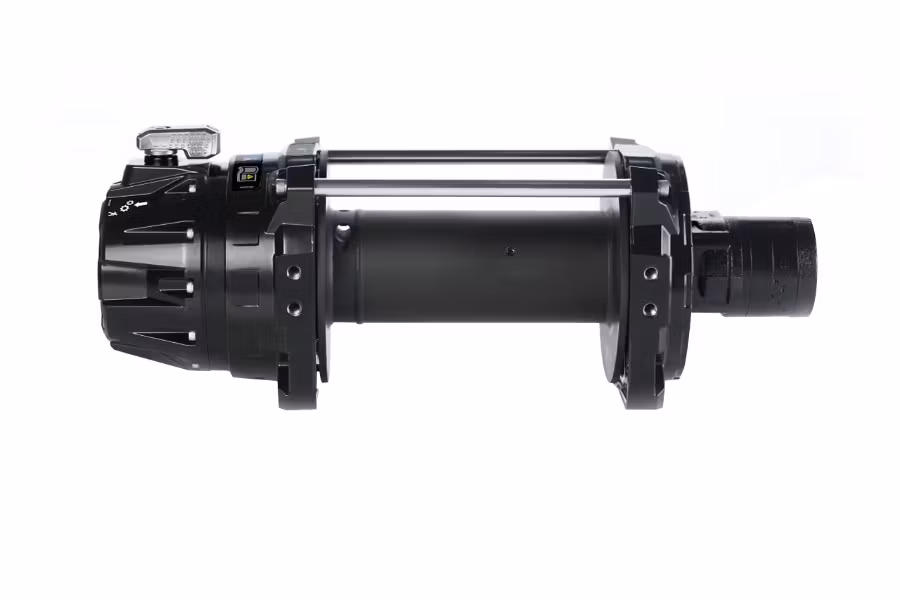

Warn 15 Series Counter Clockwise "B" Rotation Hydraulic Planetary Winch

Leave a Review

Shop all Warn Industries products

Picture of Warn 15 Series Counter Clockwise "B" Rotation Hydraulic Planetary Winch

SKU: WARN-105550

Price: $2,899.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Hardended Steel, Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. The Product Line has Expanded to Include a New Family of 9,000 lbs. Worm Gear Winches. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards.

Hardened Steel, Two Stage Planetary Gear Train With A 36:1 Reduction
Heavy-Duty Automatic Disc Brake
For tow, utility and trailer applications
6.0 cubic-inch motor provides pulling capacity up to 15,000 lbs.
Positive Locking Clutch Prevents Winch From Jumping Out Of Gear
Meets SAE J706 And CE Specifications
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components
Counter Clockwise "B" Rotation

Specifications
Type: Hydraulic
Mount Type: Vehicle Mounted
Recommended Use: Industrial
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Electrical Control Type: Not Applicable
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 36:1
Free Spooling: Yes (manual clutch)
Brake Type: Disc Brake
Line Diameter (IN): No Rope
Line Length (FT): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms to J706 Standards: Yes
Remote Type: No Remote
Mounting Hole Quantity: 8
Operation Type: Automatic
Mounting Pattern Length (IN): 12 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: No
Color: Black

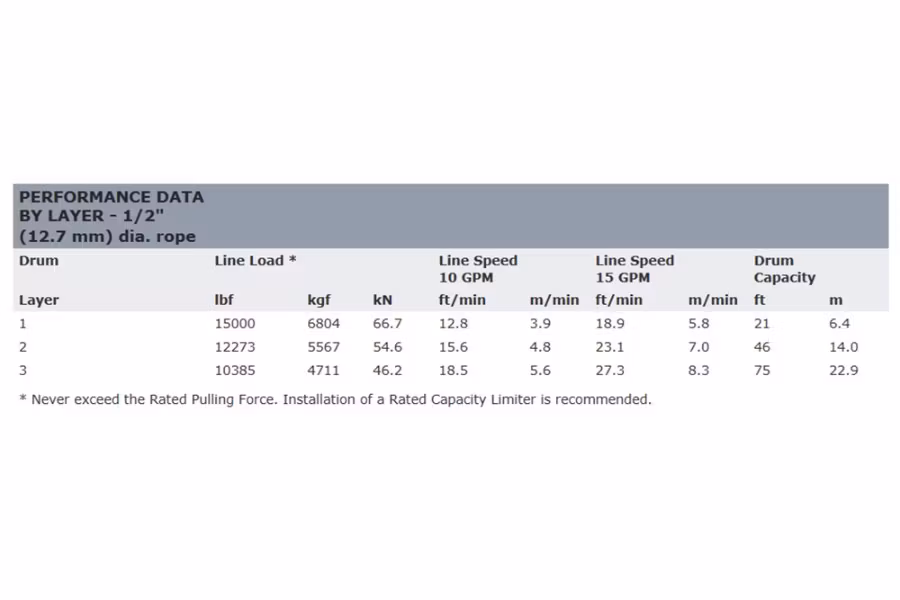

Max Line Pull/Line Speed: 15000 Pound/ 27.3 Feet Per Minute
