Warn Industries

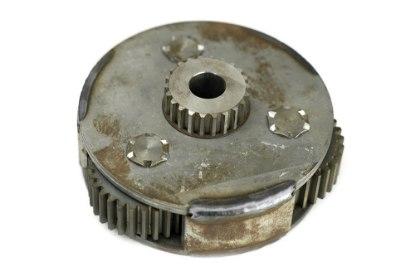

This is a replacement stage 3 carrier assembly in the winch. This replacement carrier fits a 9 Series Warn Winch.

This is a warn winch 8" tension plate from Miller Industries.

This Warn Industries cable tensioner plate fits 8" drum.

This is a replacment warn roller 8".

Replacement Ring Gear for a Series 9 Winch by Warn Industries.

This is a replacement Series 9 gear housing.

This Warn Industries Series 12 hydraulic Winch is vehicle mounted and has a pull capacity of 12,000 pound. It comes without wire. Note: This Winch will require winch mount for proper installation.

This is a stainless steel plate tensioner rod from Miller Industries.

Warn Industries provides a replacement 10" Fairlead roller. Horizontal roller Warn-30867 Vertical Roller Warn-30864

This is the clutch housing for the 12 Series Planetary Winch by Warn Industries. This clutch housing holds all of the ring gears, thrust plates, and carrier assemblies needed to make the winch function. This housing bolts up to the drum support assembly.

When you're in the shop and have access to a power source, just plug-in PullzAll and let it help you tackle those labor intensive chores. Move heavy machinery. Hoist an engine block. Lift a load precisely into place, then nail it, weld it, whatever it. You think up the task, and PullzAll flat out revolutionizes the amount of work one man can do:

Hardened Aircraft-Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing, Utility and Trailer Applications. Recovery Operations. These Products Comply with World-Wide Quality and Safety Standards. This specific model has a 10.4 cu. in hydraulic motor with a manual clutch. Also has a spring applied disk braking system.

This is a replacement clutch lever and shaft assembly for a Warn Series 9 Industrial Winch.

Hardended Steel, Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. The Product Line has Expanded to Include a New Family of 9,000 lbs. Worm Gear Winches. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards.

The all new line-up of Series G2 DC Electric winches are ideal for first responders, utility vehicles, and other applications where an electric winch is preferred. New levels of performance, durability, and efficiency help to get the job done quickly and reliably time after time. The Warn Series G2 represents the latest in the Warn Industrial planetary gear winch lineup. All-new modular configurations, improved levels of performance, and best-ever durability are features that allow you to work smarter.

Note: Special Handling Fees Apply

This Warn Series 9 hydraulic winch has 9,000 lb. of pulling power. Hardened steel and two-stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Warn winches are designed for Heavy-Duty Towing and Recovery Operations. They comply with world-wide quality and safety standards. This specific model comes with the 4.9 cu. in clockwise motor and has a pulling force rating of 9,000 lbs., due to the hydraulic motor sizing.

• Clockwise, 4.9 cu in motor
• Rated pulling force: 9000 lbs. (4082 kg)
• Drum barrel diameter: 4.00 in (102 mm)
• Drum flange diameter: 8.24 in (209 mm)
• Distance between flanges: 9.95 in (253 mm)
• Recommended maximum wire rope diameter: 1/2 in (12.7 mm)
• Recommended minimum wire rope breaking strength: 15,100 lbs. (6849 kg)
• Approximate shipping weight: 98.0 lbs. (44.5 kg)
• Perfect for towing, utility and trailer applications
• Heavy Duty automatic disc brake provides dependable operation
• Meets SAE J706 CE standards
• Wire rope, roller fairlead, and tensioner sold separately
• Gear reduction: 27:1
• Hardened steel, two-stage planetary geartrain provides faster line speeds
• 4.9gpm, Clockwise drum rotation
• Limited Lifetime Warranty for Mechanical Components
• Limited Five (5) Year Warranty for Electrical Components



  Specifications

• Type: Hydraulic
• Mount Type: Vehicle Mounted
• Recommended Use: Industrial
• Voltage: Not Applicable
• Motor Horsepower: Not Applicable
• Electrical Control Type: Not Applicable
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 27:1
• Free Spooling: Yes
• Brake Type: Disc Brake
• Line Diameter (in): No Rope
• Line Length (ft): No Rope
• Line Material: No Rope
• Fairlead Type: No Fairlead
• Conforms To J706 Standards: Yes
• Mounting Hole Quantity: 8
• Operation Type: Automatic
• Mounting Pattern Length (in): 12 Inch
• Mounting Pattern Width (in): 4-1/2 Inch
• Includes Mounting Hardware: No
• Color: Black
• Max Line Pull/Line Speed: 9000 Pound/28.5 Feet Per Minute


  Applications

• Towing & Recovery
• Utility
• Trailer

Warn Industries Series 20XL-LP winch. This winch has a 20,000 lb. pulling capacity and is designed for use on trailers, rollback trailers, and heavy-duty applications. LP stands for "Low Pressure" and means this winch uses a larger displacement motor to pull full rated load at only 2200 psi. This makes the Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.

Warn nylatron large frame thrust washer.

Warn replacement roller fairlead for XL Series long drum winches

Warn Industries replacement hydraulic disc brake.

For electrically powered applications, Warn industrial offers a comprehensive line of products to meet or exceed your expectations. All Electric Winches feature heavy duty 12 or 24 Volt Series wound industrial motors and hardened steel three stage planetary gear trains that provide efficient and reliable operation. Every Warn industrial planetary Winch complies with the world's most stringent standards, including SAE J706 and NFPA

This is a replacement 10" drum for a Warn 15 Series Winch.

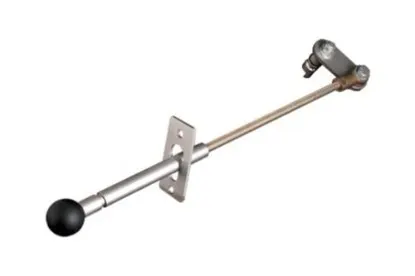

The WARN 38316 Remote Clutch Assembly allows access to winches in hard to reach areas. It provides easy engagement and disengagement of the clutch. This product is designed for WARN industrial series winches. Compatible with Gen-1: 9,12, and 15 series industrial winches.

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards. This specific model has a 7.9 cu. in hydraulic motor with a manual clutch. Has a gear reduction of 28.5:1 with a spring applied disk for a braking system.

Roller Fairlead for industrial winches with 8" drums. Replaces 30860.

Warn winch rear MTG frame assembly includes rollers.

The new WARN remotes feature a new ergonomic design that is easy to grip in all conditions. These durable rubber remotes incorporate a "D" plug design that is easy to align with the new contactor control packs and is suitable for all winch control packs with 3 or 5 wire round plugs.

This Warn Industries PullzAll (TM) 24 volt electric Winch is portable and has a pull capacity of 1,000 pounds. It has a 15 feet wire rope.

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards.

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

Zacklift 20,000# Warn Planetary Winch Kit. Manual Free Spool, Cable Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook, Factory Mounted Zacklift Cable Guide Located on the Zacklift, and Valve Section

For Electrically Powered Applications, Warn Offers a Comprehensive Line of Industrial Winches. All Electric Winches Feature Heavy-Duty 12V or 24V Series Wound Industrial Motors and Hardened Steel Three-Stage Planetary Geartrains That Provide Efficient and Reliable Operation. Every warn Industrial Planetary Winch Copmlies with the World's Most Stringent Standards, Including SAE J706 and NFPA.

*High Strength 45 Millimeter Diameter Rollers *Permanently Lubed Bronze Bushings Provide Long Roller Life And Smooth Cable Retrieval *Heavy Duty Welded Frame *Available In Chrome Or Painted *Available For All Industrial Winches *Limited 1 Year Warranty

Warn Industries Series 20XL winch. Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards. This specific model has an 8.0 cu. in hydraulic motor with an air clutch. It is a long drum model with a spring applied disk for a braking system.

This is a Hand Controller for ES Winches from Mile Marker.

Zacklift 30,000# Warn Planetary Winch Kit. Manual Free Spool, Cable Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook, Factory Mounted Zacklift Cable Guide Located on the Zacklift, and Valve Section

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards. This specific model has an 8.0 cu. in hydraulic motor. It has a long drum and a manual clutch. Has a spring applied disk for a braking system.

Zacklift 20,000# Warn Planetary Winch Kit. Manual Free Spool, Cable Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook, Factory Mounted Zacklift Cable Guide Located on the Zacklift, and Valve Section

Zacklift 30,000# Warn Planetary Winch Kit. Manual Free Spool, Cable Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook, Factory Mounted Zacklift Cable Guide Located on the Zacklift, and Valve Section
