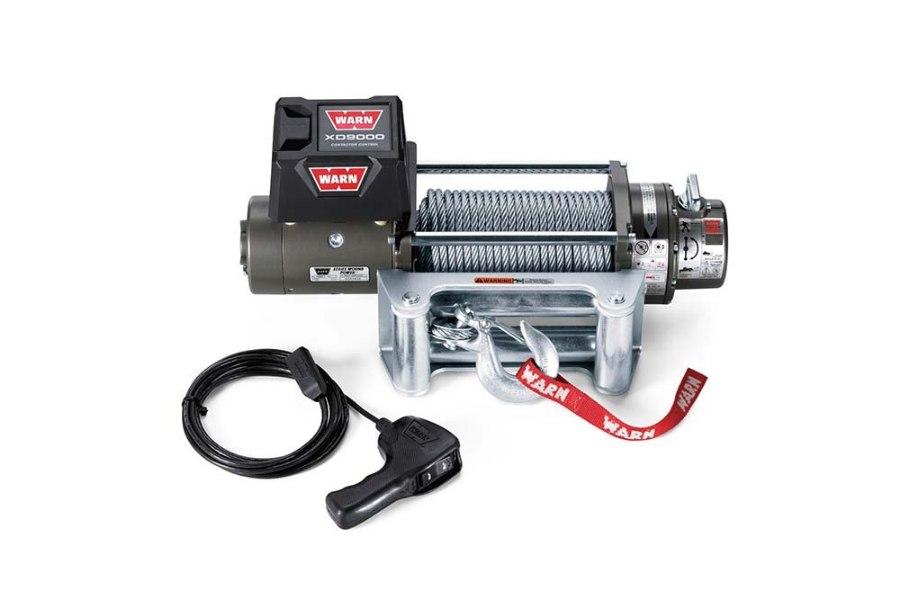

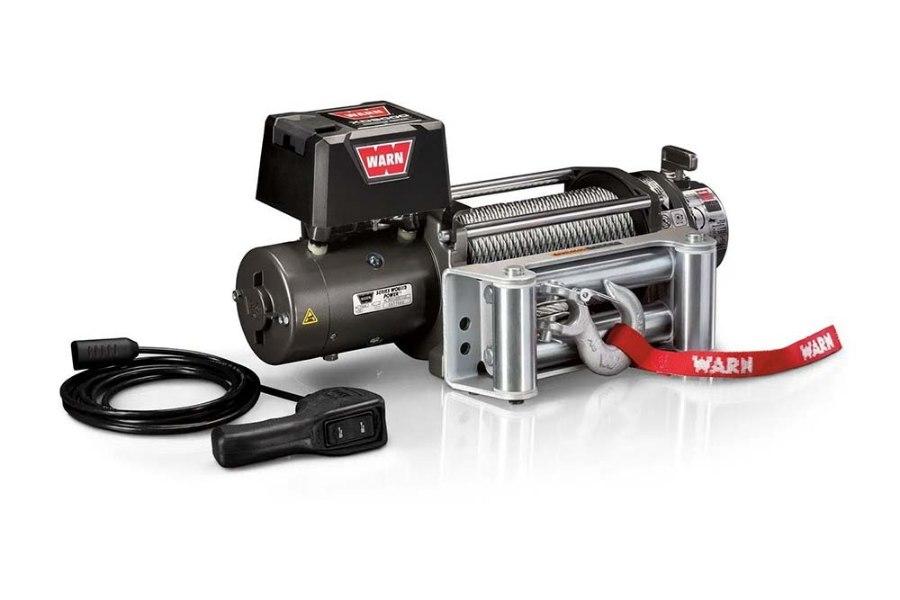

Warn XD9 Winch

A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.

• Low-profile design and separate control box allows for a wide range of mounting options
• Exclusive brake design provides superior control while winching
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Chip-resistant, powder-coated finish
• Remote control with 12' (3.7m) lead.
• Durable 5/16" (8mm) diameter galvanized steel wire rope.
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications

• Type: Electric
• Mount Type: Vehicle Mounted
• Recommended Use: Vehicle Recovery
• Voltage: 12 Volt
• Motor Horsepower: 4.6 Horsepower
• Motor Type: Series Wound
• Thermal Shutoff: No
• Gear Type: Planetary
• Gear Reduction Ratio: 156:1
• Free Spooling: Yes
• Brake Type: Mechanical Cone
• Line Diameter: 5/16"
• Line Length: 100'
• Line Material: Steel
• Fairlead Type: Roller
• Remote Type: Handheld Remote Switch
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 10"
• Mounting Pattern Width: 4-1/2"
• Mounting Hardware Included: No
• Max Line Pull / Speed: 9,000 lbs / 3.9 Feet Per Minute
• Max Amp Draw / Line Pull: 478 Amp Draw / 9,000 lbs
