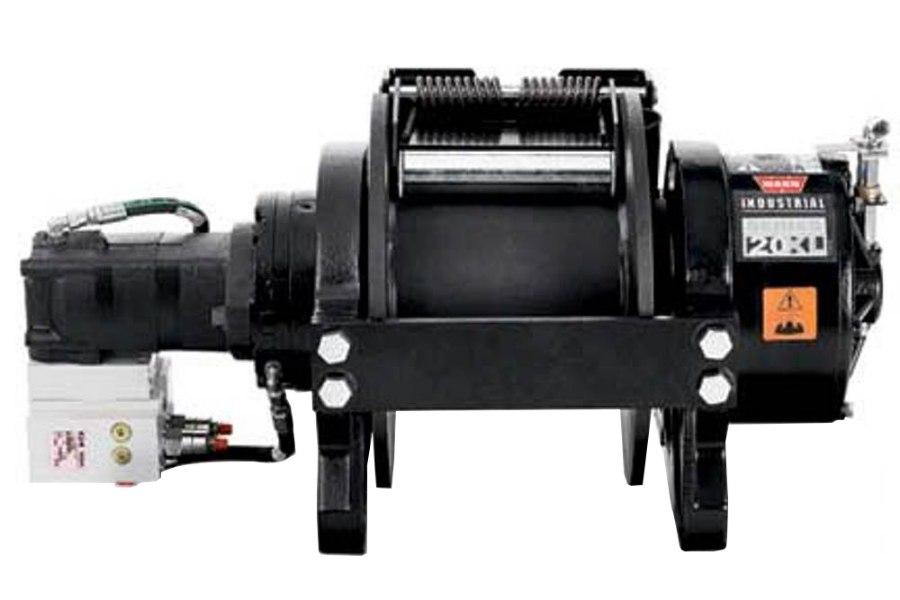

Warn 20XL Series 20,000 lb. Hydraulic Planetary Winch w/ Air Clutch

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards.

• 8.0 Cubic Inch High Performance Motor With 20,000 Pounds Capacity, Great For Wreckers, Trailers, Or Severe Duty Applications
• Spring Applied Disc Brake Designed To Hold The Full Rated Load
• Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
• Available In Short And Long Drum Versions
• Meets SAE J706 And CE Specifications
• Limited Lifetime Warranty for Mechanical Components
• Limited Five (5) Year Warranty for Electrical Components
• Standard Drum, Air Clutch



  Specifications

• TYPE: Hydraulic
• MOUNT TYPE: Vehicle Mounted
• RECOMMENDED USE: Industrial
• VOLTAGE: Not Applicable
• MOTOR HORSEPOWER: Not Applicable
• ELECTRICAL CONTROL TYPE: Not Applicable
• THERMAL SHUTOFF: No
• DRIVE GEAR TYPE: Planetary
• GEAR REDUCTION RATIO: 28.5:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Spring Applied Disc
• LINE DIAMETER (IN): No Rope
• LINE LENGTH (FT): No Rope
• LINE MATERIAL: No Rope
• FAIRLEAD TYPE: No Fairlead
• CONFORMS TO J706 STANDARDS: Yes
• REMOTE TYPE: No Remote
• MOUNTING HOLE QUANTITY: 8
• OPERATION TYPE: Automatic
• MOUNTING PATTERN LENGTH (IN): 18 Inch
• MOUNTING PATTERN WIDTH (IN): 7-1/2 Inch
• INCLUDES MOUNTING HARDWARE: No
• COLOR: Black
• MAX LINE PULL/ LINE SPEED: 20000 Pound/ 28.5 Feet Per Minute
