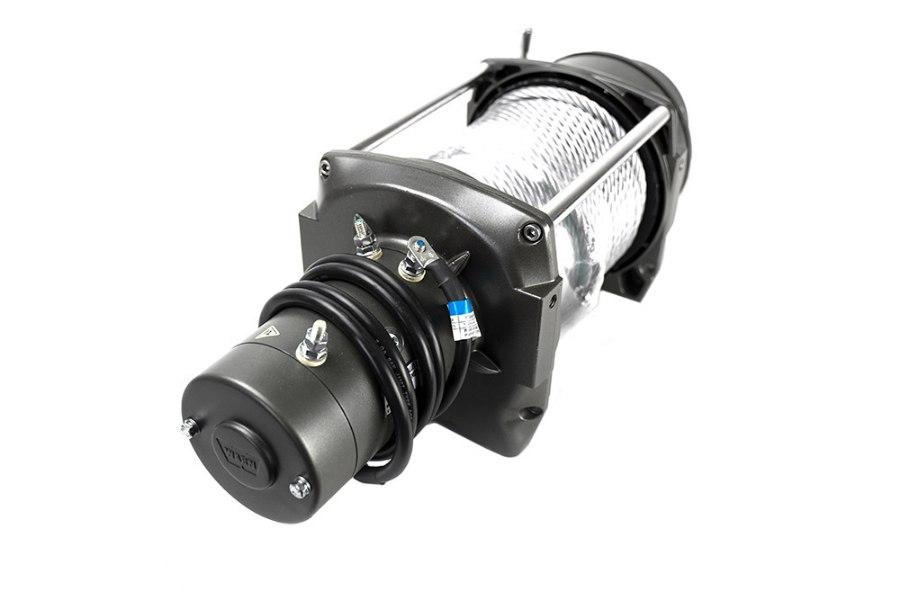

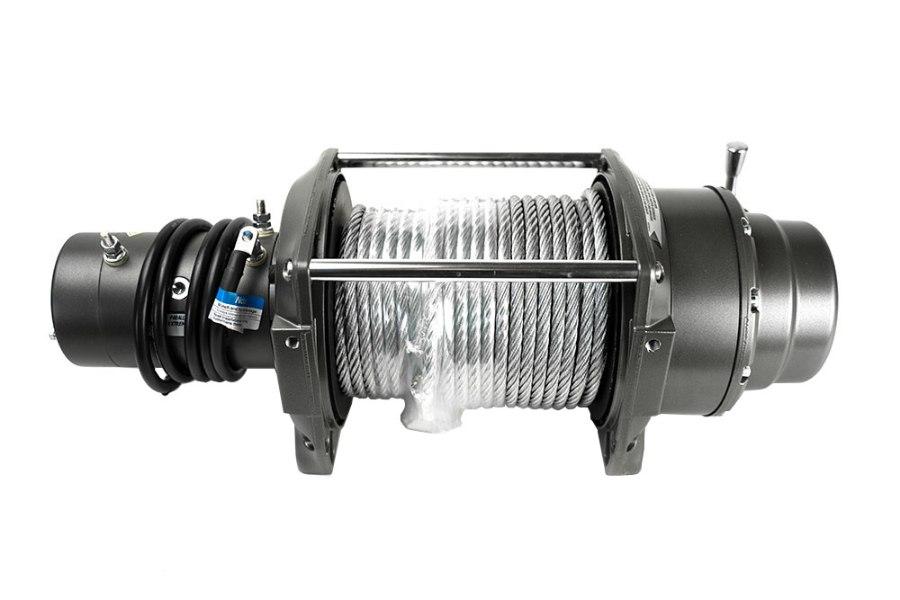

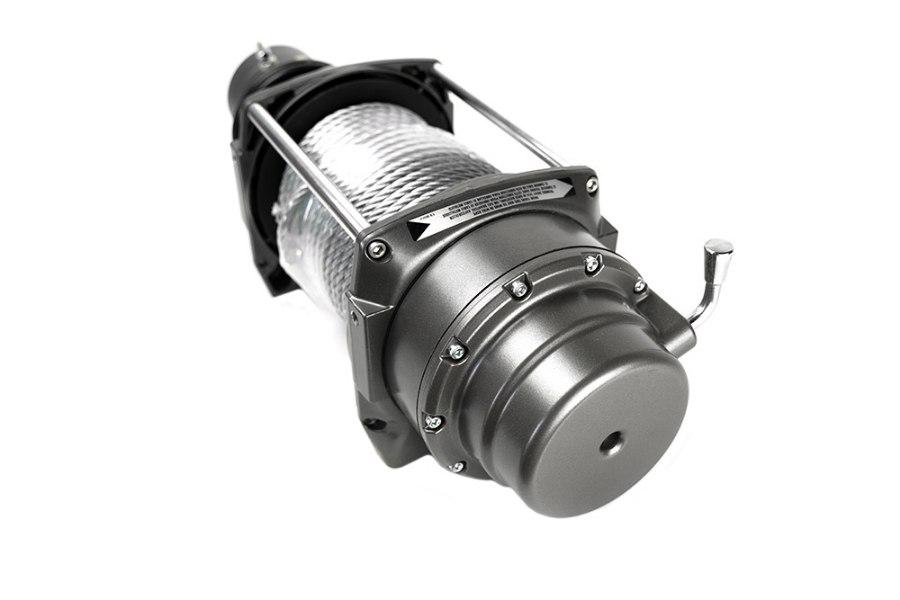

Warn M12 12V Heavyweight Electric Winch

Leave a Review

Shop all Warn Industries products

Picture of Warn M12 12V Heavyweight Electric Winch

SKU: WARN-17801

Price: $2,834.99

Qty:

Go Straight to Checkout

Truck Freight Required

Description

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

12,000 lb. (5,440 kg) pulling capacity (single line)
Large frame winch design is designed to handle heavier winch loads
Series-wound, high-speed motor provides fast line speed and strong pulls
Brake provides superior control while winching

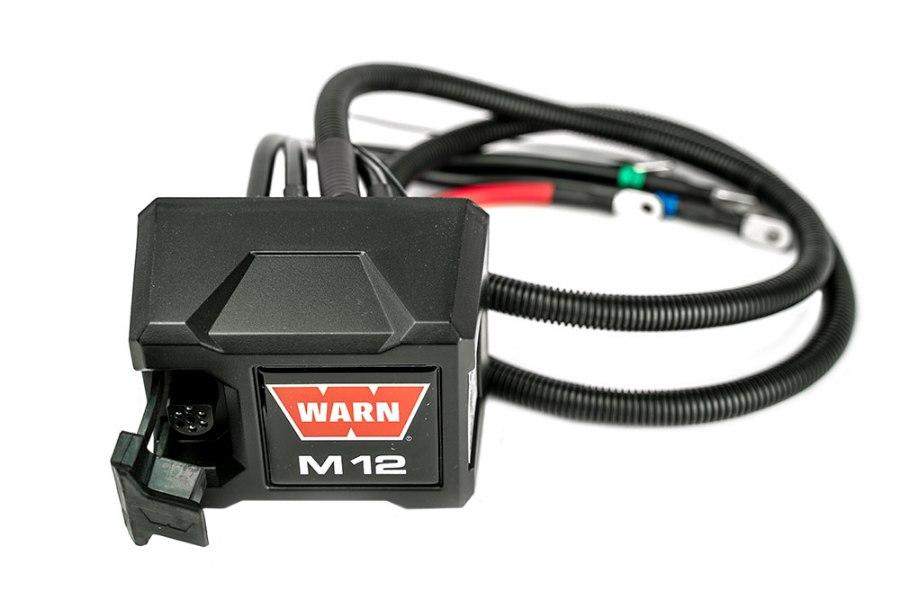

Remote-mount control box allows for various mounting options
Durable 3-stage planetary geartrain for smooth, reliable, operation

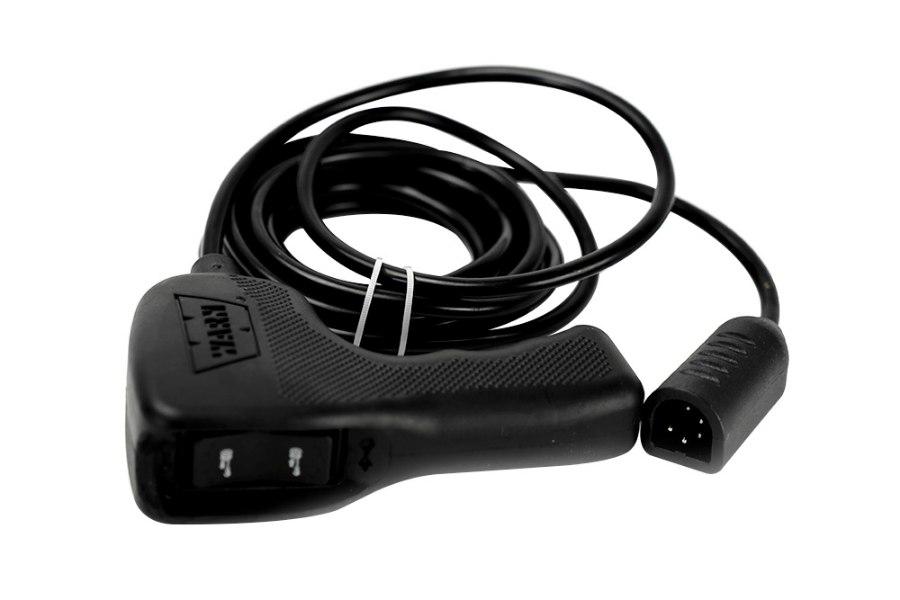

Remote control with 12' (3.7m) lead
Chip-resistant powder-coated finish
125' of 3/8" (38m of 9.5mm) diameter wire rope
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications:
Type: Electric
Mount Type: Vehicle Mounted
Recommended Use: Vehicle Recovery
Voltage: 12 Volt
Motor Horsepower: 4.6 Horsepower
Electrical Control Type: Contractors
Motor Type: Series Wound
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 261:1
Free Spooling: Yes
Brake Type: Mechanical Cone
Line Diameter: 3/8"
Line Length: 125'
Line Material: Steel

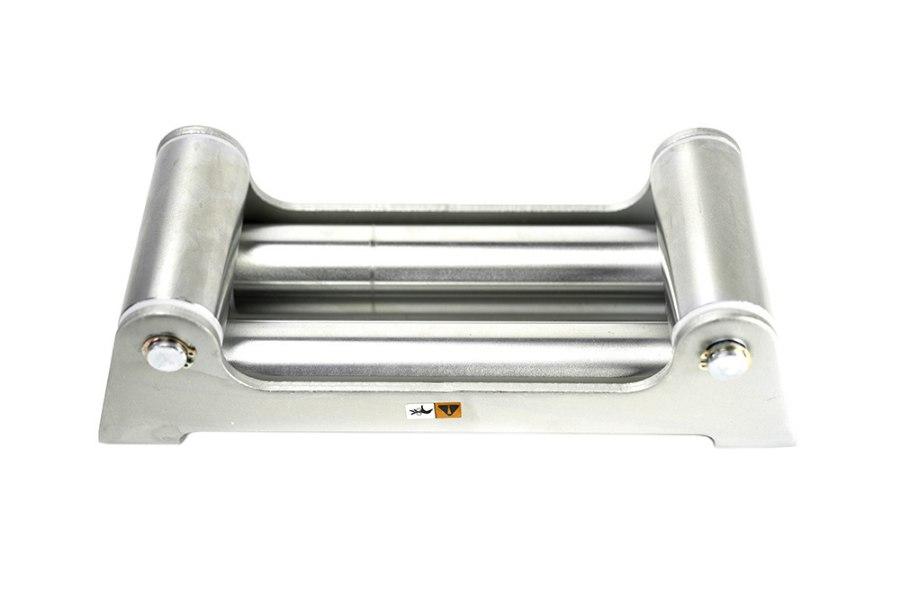

Fairlead Type: Roller
Conforms to J706 Standards: No
Remote Type: Handheld Remote Switch
Mounting Hole Quantity: 4
Operation Type: Automatic
Mounting Pattern Length: 10"
Mounting Pattern Width: 4-1/2"
Includes Mounting Hardware: No
Color: Gray
Max Line Pull/Line Speed: 12,000 lbs/3.86 feet per minute
Max Amp Draw/Line Pull: 440 Amp Draw/12,000 lbs
