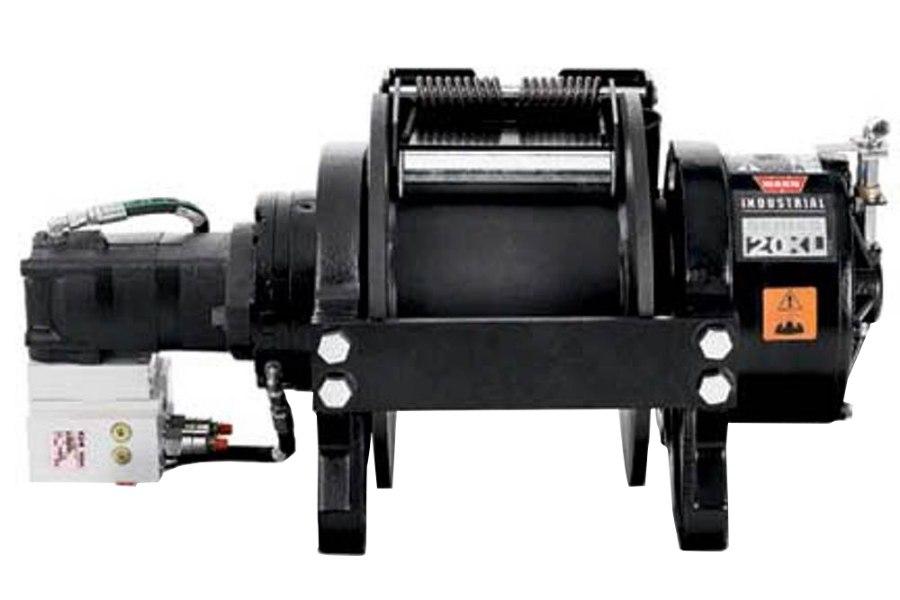

Warn 20XL Series 20,000 lb. Hydraulic Planetary Winch w/ Manual Clutch

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards. This specific model has a 7.9 cu. in hydraulic motor with a manual clutch. Has a gear reduction of 28.5:1 with a spring applied disk for a braking system.

• 8.0 Cubic-Inch high-Performance Motor with 20,000 lbf. Capacity
• Sping-Applied Disc Brake Designed to Hold the Full-Rated Load
• Hardened Aircraft-Grade Nickel Chromoly Two-Stage Planetary Geartrain for Speed and Reliability
• Meets SAE J706 and CE Standards
• Standard Drum, Manual Clutch



  Specifications

• Type: Hydraulic
• Mount Type: Vehicle Mounted
• Recommended Use: Industrial
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 28.5:1
• Free Spooling: Yes
• Brake Type: Spring Applied Disc
• Conforms to J706 Standards: Yes
• Remote Type: No Remote
• Mounting Hole Quantity: 8
• Operation Type: Automatic
• Mounting Pattern Length(in): 18 in
• Mounting Pattern Width(in): 7 1/2 in
• Includes Mounting Hardware: No
• Color: Black
• Max Line Pull / Line Speed: 20,000 lbs/ 28.5 Ft Per Minute
