Steel Core Cables

Note: Special Handling Fees Apply for Specific Items

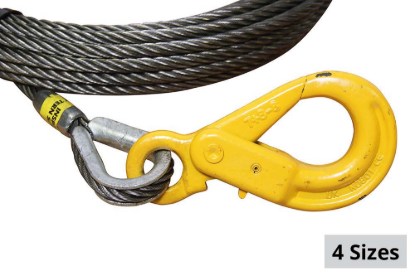

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables from B/A Products are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

• Sizes: 3/8" - 3/4"
• Lengths: 35' - 250'
• WLLs: 4,250 lbs. - 16,560 lbs.
• Minimum Breaking Strengths: 15,100 lbs. - 41,200 lbs.
• Turnback Style Eye

  Specifications:

  Size	Min. Break Strength	WLL
  3/8"	15,100 lbs.	4,250 lbs.
  7/16"	20,400 lbs.	5,740 lbs.
  1/2"	26,600 lbs.	7,490 lbs.
  9/16"	33,800 lbs.	9,520 lbs.
  5/8"	41.200 lbs.	11.600 lbs.
  3/4"	58,800 lbs.	16,560 lbs.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. The Elite Series winch cables from AW Direct provide strength and flexibility.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Swivel Hook that has a safety latch, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Additionally, the steel core only adds to that resistance. Not to mention, the load can’t be dropped unless it’s intentional, thanks to the fact it has a self-locking hook.

• Wire Rope Size: 3/8" - 3/4"
• Hook Size: 2.25 Ton - 9 Ton
• Self-Locking hook
• Flemished Eye
• 6X19
• Steel core

Available in the following sizes

Item #	Size	Length
WS38050LS-SC	3/8" - 15,100 MBS	50'
WS38075LS-SC	3/8" - 15,100 MBS	75'
WS38100LS-SC	3/8" - 15,100 MBS	100'
WS38125LS-SC	3/8" - 15,100 MBS	125'
WS38150LS-SC	3/8" - 15,100 MBS	150'
WS716150LS-SC	7/16" - 20,400 MBS	50'
WS716075LS-SC	7/16" - 20,400 MBS	75'
WS716100LS-SC	7/16" - 20,400 MBS	100'
WS716150LS-SC	7/16" - 20,400 MBS	150'
WS12050LS-SC	1/2" - 26,600 MBS	50'
WS12100LS-SC	1/2" - 26,600 MBS	100'
WS12150LS-SC	1/2" - 26,600 MBS	150'
WS12200LS-SC	1/2" - 26,600 MBS	200'
WS916100LS-SC	9/16" - 33,600 MBS	100'
WS916150LS-SC	9/16" - 33,600 MBS	150'
WS916200LS-SC	9/16" - 33,600 MBS	200'
WS916250LS-SC	9/16" - 33,600 MBS	250'
WS58100LS-SC	3/4" - 58,800 MBS	100'
WS58150LS-SC	5/8" - 41,200 MBS	150'
WS58200LS-SC	5/8" - 41,200 MBS	200'
WS58250LS-SC	5/8" - 41,200 MBS	250'
WS34200LS-SC	3/4" - 58,800 MBS	200'
WS34250LS-SC	3/4" - 58,800 MBS	250'
WS34300LS-SC	3/4" - 58,800 MBS	300'

Note: Special Handling Fees Apply for Specific Items

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cables with Standard Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Not to mention, the load can’t be dropped unless it’s intentional thanks to the fact it has a self-locking hook.

• 6×19 Class of wire rope
• Steel Core winch lines
• Drop Forged Eye Hook
• Flemished Eye

Available in the following sizes

Item #	Size	Length	Min. Break Strength
WS516050-SC	5/16"	50'	9,800 lbs.
WS38050-SC	3/8"	50'	15,100 lbs.
WS38075-SC	3/8"	75'	15,100 lbs.
WS38100-SC	3/8"	100'	15,100 lbs.
WS38150-SC	3/8"	150'	15,100 lbs.
WS716050-SC	7/16"	50'	20,400 lbs.
WS716100-SC	7/16"	100'	20,400 lbs.
WS716150-SC	7/16"	150'	20,400 lbs.
WS716200-SC	7/16"	200'	20,400 lbs.
WS12050-SC	1/2"	50'	26,600 lbs.
WS12100-SC	1/2"	100'	26,600 lbs.
WS12150-SC	1/2"	150'	26,600 lbs.
WS12200-SC	1/2"	200'	26,600 lbs.
WS916100-SC	9/16"	100'	33,600 lbs.
WS916150-SC	9/16"	150'	33,600 lbs.
WS916200-SC	9/16"	200'	33,600 lbs.
WS916250-SC	9/16"	250'	33,600 lbs.
WS58100-SC	5/8"	100'	41,200 lbs.
WS58150-SC	5/8"	150'	41,200 lbs.
WS58200-SC	5/8"	200'	41,200 lbs.
WS58250-SC	5/8"	250'	41,200 lbs.
WS34200-SC	3/4"	200'	58,800 lbs.
WS34250-SC	3/4"	250'	58,800 lbs.
WS34300-SC	3/4"	300'	58,800 lbs.

The All-Grip Steel Core Winch Cables with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds. you can rely on this to get the job done. Check the chart below for more information.

This Steel Core Cable is made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. This cable also comes with an Alloy Standard Hook that has a safety latch, which provides a secure, safe connection.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 3/8" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. It also has an independent wire rope core that reduces internal wear and increases bending fatigue life. To add to that durability, there is a thimble eye on one end to reduce damage to the line.

Sometimes you need a little extra line for your winch line, the All-Grip Wire Rope Extension Cable 1/2" x 50' offers an additional 50 feet. This gives you more usability. Plus, it has a steel core that makes it more resistant to crushing and abrasion. Finally, it has an independent wire rope core that reduces internal wear and increases bending fatigue life.
