Battery Testers & Tools

This battery carrier features an economical design to easily transport most battery types.

This battery carrier features an economical design to easily transport most battery types.

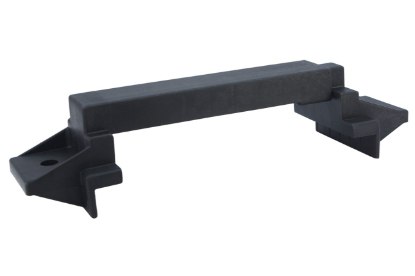

Non-conductive to eliminate hold-down as source of shorts. Adjustable and lockable. Fits existing hardware or select from hold-down bolts and Group 24 or 27 vinyl coated trays. Ideal for all applications.

These Pliers from Quick Cable have a off-set nose designed for close quarter work. The narrow jaw securely grips corroded hardware.

ATEC? Hand-Held Battery Load Tester, Alternator and Starter Tester. 125 Amp Fix Load. Recessed meter helps protect this handheld tester from damage and ensures more accurate and reliable outputs. Features easy to use clamps with 300 Amp jaws. Lightweight and easy to use. Perform these diagnostic tests, State of charge, Battery load test, Starter test, Charging System test.

Carbon Pile Load Tester handles all 6/12 Volt batteries. Two large 4.5" meters display amperes and volts. DC test leads are 2.5' 4 AWG Cable. Unit comes with manual adjust knob. Buzzer sounds after load is engaged for 15 seconds.

6024 Associated Battery Tester provides a full 125 amp load test on 12 volt and 24 volt batteries, alternators and starters on all types of vehicles. It is lightweight and easy to use. This hand-held tester has a recessed meter to protect from damage. Features heavy-duty insulated safety clamps with 300 amp jaws and side terminal adapters. Durable and built for safety.

The model 12-2415 analyzer performs 12V battery and electrical systems testing including the ripple diode test and earth ground as well as 24V starter and alternator systems. The tester has an integrated thermal printer with customizable header for shop use as well as the ability to key-in particulars for the battery model, vehicle license plate and customer name and is reverse-polarity protected.

6044 Associated Equipment Model 6044 Automated Battery / Electrical System Tester with 6038C Cart - This is an automated battery testing unit that uses no dirty, maintenance-prone carbon piles. Just enter the discharge current, press the ?start? button and the 6044 will perform the BCI battery test automatically, giving the most accurate means of testing a battery. Testing for the alternator and starter has also been automated, simplifying the use of this very versatile electrical tester. The 6044 also comes with external voltage leads which can be used to record the maximum and minimum voltage readings allowing for easy testing of electrical systems (including testing differential voltages). The unit also comes with a detachable inductive pickup (6043) which can be used to read current throughout the electrical system and a heavy-duty tilt-back cart (6038). The tester will also record the minimum and maximum current values turning many two person operations into a single, individual job.

Full 125 AMP load tests 6 and 12 volt batteries, along with alternators and starters on all types of vehicles. Durable and built with a recessed meter to help protect this hand-held tester from damage. Features heavy duty insulated safety clamps with 300 AMP jaws and side terminal adapters. Capable to test the state of charge, battery load test, starter test and charging system test. The tester draws current from the battery while measuring its voltage level; the voltage level of a good battery will remain relatively steady under load, while a defective battery will show a rapid loss in voltage.

The 6033 Associated Digital 125 Amp 12 Volt Load Tester takes the power of our 6030 and adds features for performance. A Digital 125 Amp load tester that computes the CCA of the battery. The heavy 125 Amp load enables the 6033 to detect bad batteries that are some times missed by the electronic testers. Performance Features: Kelvin connected digital meter displays current battery voltage, maxim um voltage reading, minimum voltage reading, CCA of the battery under test, load test time (varies with the battery for shorter test ing time). Lightweight and easy to use. Also features a recessed meter and insulated clamps. Patent Pending.

12-1015 Associated digital battery electrical system analyzer starter, alternator, ground and battery test with built-in thermo printer and USB port. The unit is a light weight hand-held digital battery tester storing the last 250 test series with or without power. Tests all types of flooded acid batteries, AGM flat plate and spiral, gel cells and enhanced flooded batteries. Easy to read in all light conditions featuring a back lit display. Battery test displaying estimated remaining life of battery in percent, battery quality (good or replace), internal resistance of battery, open circuit voltage of battery at test, battery CCA rating after test, and imputed CCA of test being performed. Starter test displays the lowest voltage of the battery during start and voltage drop ( normal or high). The alternator test displays good/low/high, average/max./min. during test for loaded and no load test, and checks diode ripple.

The Associated 6039 provides complete testing for 6 and 12 volt systems in a small package. Simple tests include a state of charge test, battery load test,starter test and charging system test. Easy to read digital voltmeter and ammeter combine with the versatility of a carbon pile load to give quick and precise determination of battery and charging system problems. Spring loaded load knob shuts off automatically. This 0-600 Amp 0-19 volts DC tester has unique curved discs to prevent hot spots. Heavy duty clamps with "Flexi-Spring" cable guards provide added value. The load tester is an easy-to-read, digital voltmeter and ammeter combine with the versatility of a carbon pile load to give a quick and precise determination of battery and charging system problems.

Non-conductive to eliminate hold-down as source of shorts. Adjustable and lockable. Fits existing hardware or select from hold-down bolts and Group 24 or 27 vinyl coated trays. Ideal for all applications.<BR<BR

6028DL Associated Combo Battery Tester offers 6/12v with 60/125 AMP dual load. Features a hand-held analog with mid-sized clamps 24" 14/2ga wire offering greater flexibility when attaching to hard to reach applications. A 60 AMP load is used for smaller batteries and a 125 AMP load is used to fully test larger batteries for both CCA and AMP hours.

The BA327 offers a complete testing solution for 6 and 12 Volt batteries and 12 and 24 Volt charging systems. With an operating range down to 1.5V, it can even accurately test discharged batteries and features a testing capacity to 2000 CCA. Compatible with a wide variety of battery types, the BA327 is designed to test flooded, AGM flat plate, spiral wound, gel cell, start-stop AGM and enhanced flooded batteries. It features 10 cable leads, replaceable cable ends, temperature compensation and a convenient storage case.

Vehicle battery systems fitted to modern cars require a complex system to control and maintain the best charge and discharge rates which not only ensures the longest service life but also systems such as Stop/Start operate correctly. The 12-0200 gives the operator access to all the functions complicated and time-consuming manufacturer scan tools have to perform the same function but in a fraction of the time. On average the total time required by the technician to reset a system will be 30 seconds.

Ideal for battery distributors, high volume testing, and fleet use. High resolution carbon pile assembly, featuring unique curved carbon discs, ensures maximum contact, reduces hot spots, prevents edge burning and provides smoother operation and longer life. High RPM fan cools for continuous battery testing. Voltmeter leads are inside cables for protection. Model 6038 cart available for easy mobility.

The 6044 Associated Battery & Electrical System Tester is an automated battery testing unit that uses no dirty, maintenance-prone carbon piles. Just enter the discharge current, press the ?start? button and the 6044 will perform the BCI battery test automatically, giving the most accurate means of testing a battery. Testing for the alternator and starter has also been automated, simplifying the use of this very versatile electrical tester. The 6044 also comes with external voltage leads which can be used to record the maximum and minimum voltage readings allowing for easy testing of electrical systems (including testing differential voltages). The unit also comes with a detachable inductive pickup (6043) which can be used to read current throughout the electrical system. The tester will also record the minimum and maximum current values turning many two person operations into a single, individual job.

Designed with highest quality and versatility in mind. Interprets data from the charging/starting system on easy-to-read LED display voltmeter and ammeter. Also shows +/- amps for easy diagnosis of current leakage problems. The 500 amp, carbon pile variable load c apability, provides accurate load testing for up to 1,000 CCA batteries. A great time-saver for testing electrical systems on 12, 12 /24 and 24 volt vehicles. Features include Large, easy to read, LED digital AMPS and VOLTS meters. The Volt meter displays voltages to ?99.9 volts DC on the EXT position and up to 35.0 volts DC on the INT position. The AMP meter displays DC currents up to 999 amps and reads both + and - amps for easy diagnosis of leakage current problems. The input impedance of the meters is 10 Meg ohms for ac curate testing of solid state circuits. The carbon pile is rated 500 amps on 12 volt batteries for load testing batteries up to 1000 CCA capacity. Curved carbon discs allow better low end resolution of current and longer life. Amps Zero Adjust allows for maximum a ccuracy in AMPS reading. "Load On" light indicates the carbon pile is actuated and serves as a reminder to turn the load off. Defect ive Diode indicator light lets you know when alternator output diodes or GM diode trios have failed. The electronic circuits are pro tected by a fuse against excessive voltage inputs and reverse voltages caused by connecting leads incorrectly that may damage the un it. The electronic circuit board has a protective coating to prevent damage and meter inaccuracy due to moisture and dirt. 6038C Two Wheeled Cart & 6043 AC/DC Current Sensing Inductive pickup are included with the 6042
