Hydraulic winches from Ramsey and Warn deliver fast, powerful winching pull after pull. With working capacities from 7,500 lbs. to 30,000 lbs., the winches available from Zip’s AW Direct are designed for the demands of towing and recovery as well as the rigors in the utility, mining and construction industries. Fast line speeds limit time in the danger zone as well as increase efficiency and productivity on the job. Cables can be under-wound to minimize strain on the winch or overwound to reduce the risk of damage to the load
Note: Special Handling Fees Apply for Specific Items
One of the most popular winches in the Towing & Recovery industry. These 8000
lb. Ramsey Winches are used on most Chevron and many other tow trucks and car
carriers. These winches are just the basic winch with no hydraulic motor. This
makes it more economical to replace your old winch rather than to repair it.
Model: HD-234R
Line Pull: 8,000 lbs
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
See Brochures for Product Drawings
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA
Applications
Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer
Winch Mount Configuration
Model Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 28'/min / 8.5m/min
Gear Ratio: 34:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
(Includes auxiliary brake)
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 2,375 PSI (164 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 3.6 Cu. In. (59 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric
HD-234R Specifications:
Ramsey Part Number: 121807
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Ram-Lok
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA
HD-200R Specifications:
Ramsey Part Number: 121818
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Lever
Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA
For an alternative winch see part number H-246
Replaces part number 12-0300250
HD-234RA Specifications:
Ramsey Part Number: 121797
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Air Shift
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
One of the most popular winches in the industry. These 8000 lb. Ramsey
Winches are used on most Century, Vulcan and many other tow trucks. These
winches are just the basic winch with no hydraulic motor and no mounting
angles. This makes it more economical to replace your old winch rather than
repair it.
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount.
Previously listed under part number: HP4D.
Note: Special Handling Fees Apply for Specific Items
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount,
this versatile winch is also available with an optional remote control air
shifter with clutch engagement indicator light.
This Warn Industries Series 12 hydraulic Winch is vehicle mounted and has a
pull capacity of 12,000 pound. It comes without wire. Note: This Winch will
require winch mount for proper installation.
This Industrial-Grade Winch features a planetary gear for the fastest line
speeds available getting you out of hazardous traffic quicker. Winch has a
disc brake for sure-load holding and a free spooling clutch on the driver's
side. Use with 9-3/4" drum width and 7/16" x 125' rope capacity.

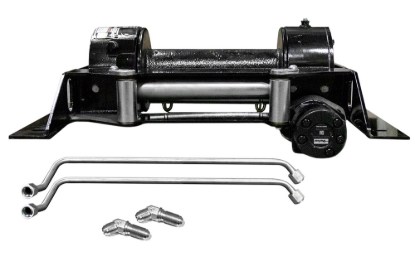

The Zips Sierra Winch Worm Gear Replacement Kit updates the Ramsey Sierra winch to a Ramsey 4 ton second generation worm gear winch. This kit includes the worm style winch, fluid tubes, clutch control, and 45 degree fittings.
Rugged worm gearing results in faster line speeds that get you to your next job faster. These High-Speed Hydraulic Industrial-Grade
Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in y
our truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Passenger side mount.Op
tions:Series HD350 features 2,200 psi retracted height.Series HD200 features 2,500 psi retracted height.
Fast, powerful and reliable, perfectly suited for towing and recovery as well
as many other industrial applications. This powerful winch offers the latest
in single-stage planetary gear design for quiet reliable operation in just an
85 lb. package. Designed for either foot mount, angle mount, or side mount.
Previously listed under part number: HP4D.
Note: Special Handling Fees Apply for Specific Items
There's something especially frustrating about a winch breaking down on the job, and needing to head somewhere else to fix it. Well, with the Ramsey Omega 8000 lb Hydraulic Winch, that's a problem of the past. Able to be fixed in the field, you can save money and not have to worry about not meeting your deadlines.
Of course, that's not even the best part. This hydraulic winch comes in two varieties, a manual shift and an air shift. This means you can get what fits you best. However, both are built to perform under extreme conditions. Whether you need the winch for towing or factory work or something else, this winch can perform for you1
Finally, the Ramsey Omega 8000 lb Hydraulic Winch was built to last. Its automatic load-holding brake ensures reliability as you use it. Plus the Ramsey tensioner allows the winch cable to spool evenly. As a result, the winch cable lasts longer because it avoids wear and tear.
This Industrial-Grade Winch features a planetary gear for the fastest line speeds available?getting you out of hazardous traffic qui
cker. Winch has a disc brake for sure-load holding and a freespooling clutch on the driver's side. Use with 9-3/4" drum width and 7/
16" x 115' rope capacity.
Winch line sold separately.
Work Faster: Winch features a planetary gear that delivers the fastest line speeds available
Hardened Aircraft-Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing, Utility and Trailer Applications.
Recovery Operations. These Products Comply with World-Wide Quality and Safety
Standards. This specific model has a 10.4 cu. in hydraulic motor with a manual
clutch. Also has a spring applied disk braking system.
Hardended Steel, Two-Stage Planetary Gear Trains Deliver Efficient and Reliable
Operation Plus Fast Line Speeds. The Product Line has Expanded to Include a New
Family of 9,000 lbs. Worm Gear Winches. All are Designed for Heavy-Duty Towing
and Recovery Operations. These Products Comply with World-Wide quality and
Safety Standards.
Rugged worm gearing results in faster line speeds that get you to your next
job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches
allow you to operate from driver side of truck and feature Ram-Lok? clutch,
which provides easy freespooling. Low mount in your truck bed with L-shaped
mounting channels. Spool direction is counterclockwise (over the drum)
rotation. Retracted height is 1,800 psi. Options: Series H234 features 3/8" x
140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x
75' wire rope capacity and passenger side mount. Series H246 features 3/8" x
140' wire rope capacity and passenger side or driver side mount.
This Warn Series 9 hydraulic winch has 9,000 lb. of pulling power. Hardened steel and two-stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Warn winches are designed for Heavy-Duty Towing and Recovery Operations. They comply with world-wide quality and safety standards. This specific model comes with the 4.9 cu. in clockwise motor and has a pulling force rating of 9,000 lbs., due to the hydraulic motor sizing.
Clockwise, 4.9 cu in motor
Rated pulling force: 9000 lbs. (4082 kg)
Drum barrel diameter: 4.00 in (102 mm)
Drum flange diameter: 8.24 in (209 mm)
Distance between flanges: 9.95 in (253 mm)
Recommended maximum wire rope diameter: 1/2 in (12.7 mm)
Recommended minimum wire rope breaking strength: 15,100 lbs. (6849 kg)
Approximate shipping weight: 98.0 lbs. (44.5 kg)
Perfect for towing, utility and trailer applications
Heavy Duty automatic disc brake provides dependable operation
Meets SAE J706 CE standards
Wire rope, roller fairlead, and tensioner sold separately
Gear reduction: 27:1
Hardened steel, two-stage planetary geartrain provides faster line speeds
4.9gpm, Clockwise drum rotation
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components
Specifications
Type: Hydraulic
Mount Type: Vehicle Mounted
Recommended Use: Industrial
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Electrical Control Type: Not Applicable
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 27:1
Free Spooling: Yes
Brake Type: Disc Brake
Line Diameter (in): No Rope
Line Length (ft): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms To J706 Standards: Yes
Mounting Hole Quantity: 8
Operation Type: Automatic
Mounting Pattern Length (in): 12 Inch
Mounting Pattern Width (in): 4-1/2 Inch
Includes Mounting Hardware: No
Color: Black
Max Line Pull/Line Speed: 9000 Pound/28.5 Feet Per Minute

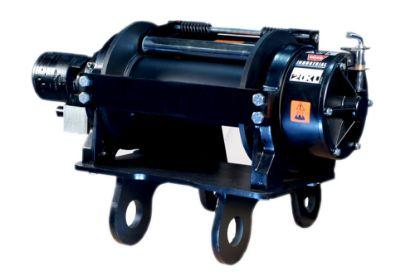

Warn Industries Series 20XL-LP winch. This winch has a 20,000 lb. pulling
capacity and is designed for use on trailers, rollback trailers, and heavy-duty
applications. LP stands for "Low Pressure" and means this winch uses a larger
displacement motor to pull full rated load at only 2200 psi. This makes the
Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.
Rugged worm gearing results in faster line speeds that get you to your next job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in your truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Retracted height is 1,800 psi.Options:Series H234 features 3/8" x 140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x 75' wire rope capacity and passenger side mount.Series H246 features 3/8" x 140' wire rope capacity and passenger side or driver side mount.
One of the most popular winches in the industry. These 8000 lb. Ramsey Ram-Lok
Winches are used on most Chevron and many other tow trucks and car carriers.
These winches are just the basic winch with no hydraulic motor. This makes it
more economical to replace your old winch rather than to repair it.
Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply
with World-Wide quality and Safety Standards. This specific model has a 7.9 cu.
in hydraulic motor with a manual clutch. Has a gear reduction of 28.5:1 with a
spring applied disk for a braking system.
Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply
with World-Wide quality and Safety Standards.
Zacklift 20,000# Warn Planetary Winch Kit. Manual Free Spool, Cable
Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook,
Factory Mounted Zacklift Cable Guide Located on the Zacklift,
and Valve Section

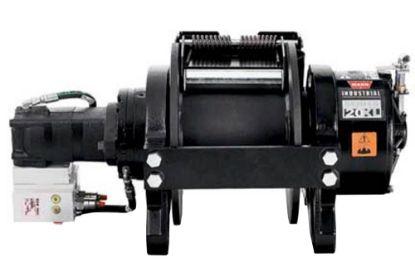

Warn Industries Series 20XL winch. Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply
with World-Wide quality and Safety Standards. This specific model has an 8.0
cu. in hydraulic motor with an air clutch. It is a long drum model with a spring
applied disk for a braking system.
This Ramsey 8,000 lbs winch is used on many Century, Vulcan, Champion,
and Challenger Car Carriers. For common replacement winches please see the
HD-200R and H-246 listed on zips.com.
Zacklift 30,000# Warn Planetary Winch Kit. Manual Free Spool, Cable
Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook,
Factory Mounted Zacklift Cable Guide Located on the Zacklift,
and Valve Section
Carrier Style Take Off Ramsey 4 ton second generation worm gear winch. This kit includes the worm style winch, fluid tubes, clutch control, and 45 degree fittings. Removed from a new bed.
Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a corded remote with 11.5' (3.5m) lead. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches.

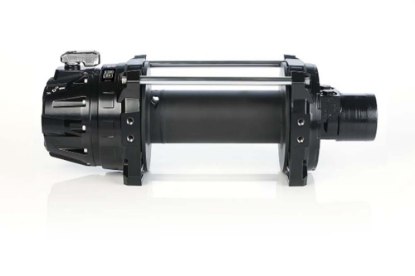

The WARN Series G2 represents the latest in the WARN Industrial planetary gear
winch lineup. All-new modular configurations, improved levels of performance,
and best-ever durability are features that allow you to work smarter. No
matter how they re spec d, these winches might be the hardest worker you ll
ever employ.
Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains
Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are
Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply

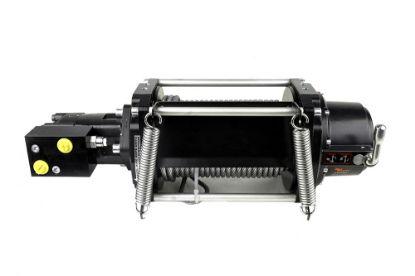

with World-Wide quality and Safety Standards. This specific model has an 8.0
cu. in hydraulic motor. It has a long drum and a manual clutch. Has a spring
applied disk for a braking system.
Zacklift 20,000# Warn Planetary Winch Kit. Manual Free Spool, Cable
Tensioner, Large Drum, 1/2" x 200' Wire Rope with 3 ton Swivel Hook,
Factory Mounted Zacklift Cable Guide Located on the Zacklift,
and Valve Section
