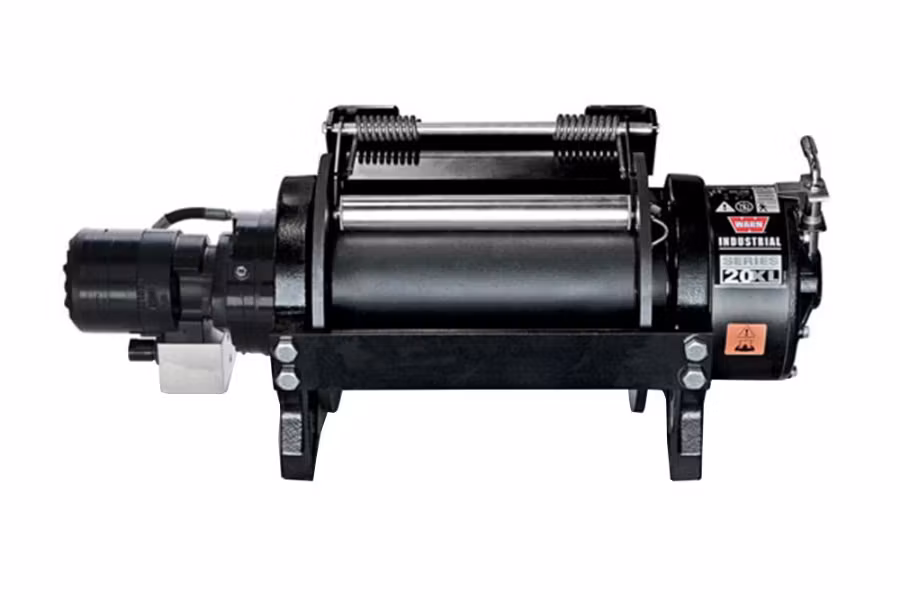

Warn 20XL-LP Series 20,000 lb. Long Drum Hydraulic Planetary Winch w/ Air Clutch

Warn Industries Series 20XL-LP winch. This winch has a 20,000 lb. pulling capacity and is designed for use on trailers, rollback trailers, and heavy-duty applications. LP stands for "Low Pressure" and means this winch uses a larger displacement motor to pull full rated load at only 2200 psi. This makes the Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.

• 11.9 Cubic-Inch High-Performance Motor With 20,000 Pounds. Capacity-Great For Wreckers, Trailers, Or Severe Duty Applications
• Spring-Applied Disc Brake Designed To Hold The Full-Rated Load
• Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
• Standard Air Clutch With Manual Clutch Option
• Available In Short- And Long-Drum Versions
• Meets SAE J706 And CE Specifications
• Limited Lifetime Warranty for Mechanical Components
• Limited Five (5) Year Warranty for Electrical Components
• Long Drum, Air Clutch



  Specifications

• Type: Hydraulic
• Mount Type: Vehicle Mounted
• Recommended Use: Industrial
• Voltage: Not Applicable
• Motor Horsepower: Not Applicable
• Electrical Control Type: Not Applicable
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 28.5:1
• Brake Type: Spring Applied Disc
• Line Material: No Rope
• Fairlead Type: No Fairlead
• Conforms to J706 Standard: Yes
• Mounting Hole Quantity: 8
• Mounting Pattern Length: 18"
• Mounting Pattern Width: 7-1/2"
• Color: Black
• Max Line Pull / Line Speed: 20000 Pound/ 21.6 Feet Per Minute
