Warn G2 Series 9 Counter Clockwise "B" Rotation Hydraulic Planetary Winch

Leave a Review

Shop all Warn Industries products

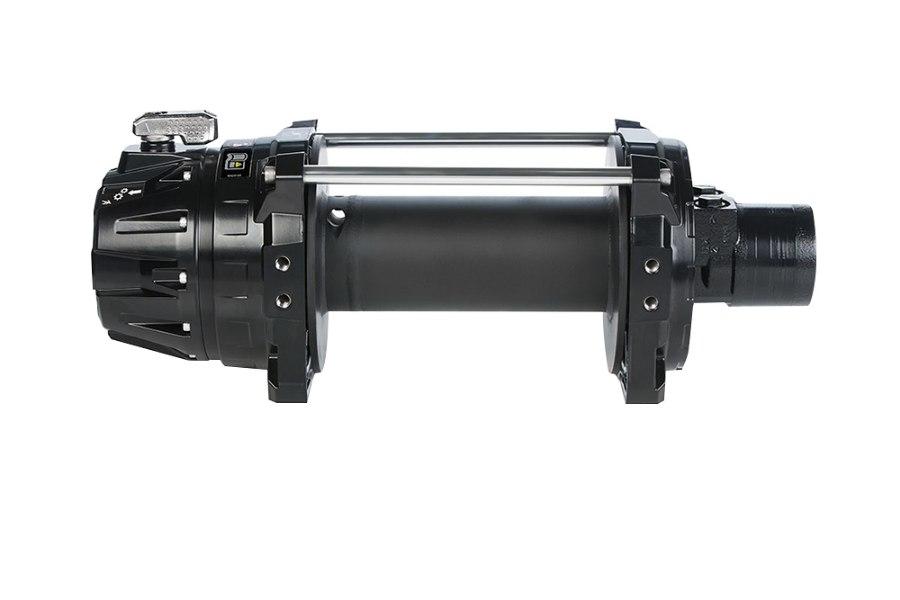

Picture of Warn G2 Series 9 Counter Clockwise "B" Rotation Hydraulic Planetary Winch

SKU: WARN-105330

Price: $2,499.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

The WARN Series G2 represents the latest in the WARN Industrial planetary gear winch lineup. All-new modular configurations, improved levels of performance, and best-ever durability are features that allow you to work smarter. No matter how they re spec d, these winches might be the hardest worker you ll ever employ.

More configurable than ever before so you get the right winch for the job
Product enhancements lead to a longer product life saving you money in the long run
Improved efficiency and performance lets you get more done in less time
Designed to meet SAEJ706 and EN-14492-1
Backed by WARN s industry leading warranty

Rated Pulling Force: 9,000 lbf / 4,082 kgf
Drum Barrel Diameter: 4" / 101.6 mm
Drum Flange Diameter: 8.24" / 209.3 mm
Drum Width: 9.95" / 252.7 mm
Evaluated Rope Diameter: 3/8" / 9.5 mm
Max Wire Rope Diameter: 1/2" / 12.7 mm
Max Wire Break Strength: 15,100 lbf / 6,849 kgf
Max Layers of Wire Rope: 4 with 3/8" rope
Gear Train: Planetary
Gear Reduction: 36:1
Mounting Bolt Size: M12 x 1.75 Class 8.8
Mounting Bolt Torque: 46-51 lbf-ft / 63-69 Nm
Duty Cycle (per SAE J706 Section 6.2): 694 ft / 211.5 m
Approximate Shipping Weight: 85.3 lb / 38.7 kg
Brake Type: Automatic Disc Brake per SAE J706 Section 4.2

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #
WARN-105330	105330	0012748085430
