Winch Lines & Hardware

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables from B/A Products are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

• Sizes: 3/8" - 3/4"
• Lengths: 35' - 250'
• WLLs: 4,250 lbs. - 16,560 lbs.
• Minimum Breaking Strengths: 15,100 lbs. - 41,200 lbs.
• Turnback Style Eye

  Specifications:

  Size	Min. Break Strength	WLL
  3/8"	15,100 lbs.	4,250 lbs.
  7/16"	20,400 lbs.	5,740 lbs.
  1/2"	26,600 lbs.	7,490 lbs.
  9/16"	33,800 lbs.	9,520 lbs.
  5/8"	41.200 lbs.	11.600 lbs.
  3/4"	58,800 lbs.	16,560 lbs.

The All-Grip Fiber Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Fiber Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, providing a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

The All-Grip Fiber Core Winch Cable with Swivel Hook is very strong. With a working load limit of up to 10,309 pounds and a minimum break strength as high as 36,600 pounds, you can rely on this to get the job done. Check the chart below for more information.

Note: Special Handling Fees Apply for Specific Items

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with a self-locking hook that provides greater safety because the hook will not come un-locked when under load. :
This cable starts out as the next size bigger cable and through the swaging process it compresses the cable down to the next size smaller. This makes the strength of the cable equal to the next size bigger but it does make the cable less flexible. Example:
A 3/8" swaged cable starts out as a 7/16" steel core cable, then through the swaging process gets compressed down to a 3/8" swaged cable. The 3/8" swaged cable has the working load limit of a 7/16" standard steel core cable. Please Note: Product Discontinued- ALL SALES ARE FINAL!

• STRONGER - Compact design allows for up to 26% greater strength than standard winch lines of the same diameter
• MORE DURABLE - Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing & kinking
• RESISTANT TO DRUM CRUSHING - Because the winch line is already compacted during the swaging process there is less space within the rope to compact if exposed to crushing
• CONSTRUCTION - (6 x 26 IWRC) Available in 3/8
• Self-Locking Hook
• Sizes available: 3/8" - 5/8"
• Lengths available: 50' - 250'
• WLL: 5,700 - 9,800
• Turnback Style Eye


  Available in the following sizes



  Item #	Size	Length
  3856LH-SG	3/8" - 20,400 MBS	56'
  3875LH-SG	3/8" - 20,400 MBS	75'
  38100LH-SG	3/8" - 20,400 MBS	100'
  38125LH-SG	3/8" - 20,400 MBS	125'
  38150LH-SG	3/8" - 20,400 MBS	150'
  71650LH-SG	7/16" - 27,200 MBS	50'
  71675LH-SG	7/16" - 27,200 MBS	75'
  716100LH-SG	7/16" - 27,200 MBS	100'

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. The Elite Series winch cables from AW Direct provide strength and flexibility.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Steel Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. Steel core winch cables offer greater crush resistance and a higher nominal strength compared to fiber core, but they are not as flexible as fiber core. These winch cables also come with an Alloy Swivel Hook that has a safety latch, which provides a secure, safe connection. The swivel hook lets the cable rotate as it is reeled into the drum so that it will wrap and lay better.

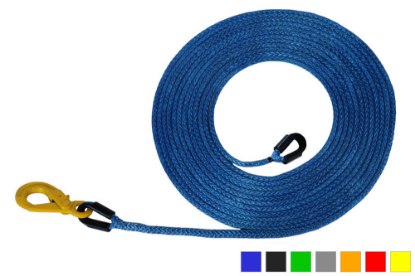

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cable with Self-Locking Swivel Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information.

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Additionally, the steel core only adds to that resistance. Not to mention, the load can’t be dropped unless it’s intentional, thanks to the fact it has a self-locking hook.

• Wire Rope Size: 3/8" - 3/4"
• Hook Size: 2.25 Ton - 9 Ton
• Self-Locking hook
• Flemished Eye
• 6X19
• Steel core

Available in the following sizes

Item #	Size	Length
WS38050LS-SC	3/8" - 15,100 MBS	50'
WS38075LS-SC	3/8" - 15,100 MBS	75'
WS38100LS-SC	3/8" - 15,100 MBS	100'
WS38125LS-SC	3/8" - 15,100 MBS	125'
WS38150LS-SC	3/8" - 15,100 MBS	150'
WS716150LS-SC	7/16" - 20,400 MBS	50'
WS716075LS-SC	7/16" - 20,400 MBS	75'
WS716100LS-SC	7/16" - 20,400 MBS	100'
WS716150LS-SC	7/16" - 20,400 MBS	150'
WS12050LS-SC	1/2" - 26,600 MBS	50'
WS12100LS-SC	1/2" - 26,600 MBS	100'
WS12150LS-SC	1/2" - 26,600 MBS	150'
WS12200LS-SC	1/2" - 26,600 MBS	200'
WS916100LS-SC	9/16" - 33,600 MBS	100'
WS916150LS-SC	9/16" - 33,600 MBS	150'
WS916200LS-SC	9/16" - 33,600 MBS	200'
WS916250LS-SC	9/16" - 33,600 MBS	250'
WS58100LS-SC	3/4" - 58,800 MBS	100'
WS58150LS-SC	5/8" - 41,200 MBS	150'
WS58200LS-SC	5/8" - 41,200 MBS	200'
WS58250LS-SC	5/8" - 41,200 MBS	250'
WS34200LS-SC	3/4" - 58,800 MBS	200'
WS34250LS-SC	3/4" - 58,800 MBS	250'
WS34300LS-SC	3/4" - 58,800 MBS	300'

AW Direct Elite Series Winch Cables can also be known as: winch line, wire rope carrier cables, and rollback cables. The Fiber Core Winch Cables provide superior flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Self-Locking Swivel Hook that will not open when under load, providing a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

These Latch Kits by B/A are for use with different size alloy hooks.

This is a replacement latch for All-Grip hooks. Be sure to check below for which one fits your hook.

Note: Special Handling Fees Apply for Specific Items

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Self-Locking Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Fiber Core Winch Cables are made with Extra Improved Plow Steel, which provides superior strength and flexibility. When pressure is exerted on the working winch cable, the lubricant reservoir gives off lubricant to minimize the wear of wire on wire, assuring longer service life. These winch cables also come with an Alloy Swivel Hook that has a safety latch for a secure, safe connection. This swivel hook will rotate as it is reeled into the drum so that it will wrap and lay better.

Winch Cables can also be known as: winch line, wire rope, wrecker cables, car carrier cables, and rollback cables. These Super Swaged Winch Cables from B/A Products have a compact design that allows for up to 26% greater strength than standard winch lines of the same diameter. Due to the swaging process the outer wires have a larger surface area than that of standard winch lines providing better resistance to abrasion, pig tailing, and kinking. Due to the fact that the winch cable is already compacted during the swaging process, there is less space within the winch rope to compact if it is exposed to crushing. These winch cables come with an alloy swivel hoist hook.

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Line Extensions are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

The All-Grip Fiber Core Winch Cable with Standard Hook is very strong. With a working load limit of up to 10,309 pounds and a minimum break strength as high as 36,600 pounds, you can rely on this to get the job done. Check the chart below for more information,

Chafe-Pro's standard abrasion protective nylon sleeve is made from a tubular textile abrasion resistant nylon. They are the most economical option for managing, containing and protecting your synthetic rope. This material is sold by the foot.

Whether you're forming a wire rope eye or connecting two wires together, you can rely on this drop-forged and galvanized wire rope clip from All-Grip. Not only is it extremely durable, due to how it's made, it also resists corrosion and rust. To top that durability off, the product identification code is stamped at the base. With it, you can trace the wire rope all the way back to when it was made.

Maintaining wire rope is important for its sustainability and VitaLife Wire Rope Lubricant helps with that. By reducing the friction between the strands of the wire rope, you prolong its life. Plus it allows for easy visual inspection of the ropes. Finally, this non-tacky lubricant forms an outer film by sticking to the surface of the strands.

Note: Special Handling Fees Apply for Specific Items

The All-Grip Steel Core Winch Cables with Standard Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

Plus, it’s very durable. With increased longevity, this 6x19 class of wire rope can last a long time as it withstands crushing and abrasion a lot better. Not to mention, the load can’t be dropped unless it’s intentional thanks to the fact it has a self-locking hook.

• 6×19 Class of wire rope
• Steel Core winch lines
• Drop Forged Eye Hook
• Flemished Eye

Available in the following sizes

Item #	Size	Length	Min. Break Strength
WS516050-SC	5/16"	50'	9,800 lbs.
WS38050-SC	3/8"	50'	15,100 lbs.
WS38075-SC	3/8"	75'	15,100 lbs.
WS38100-SC	3/8"	100'	15,100 lbs.
WS38150-SC	3/8"	150'	15,100 lbs.
WS716050-SC	7/16"	50'	20,400 lbs.
WS716100-SC	7/16"	100'	20,400 lbs.
WS716150-SC	7/16"	150'	20,400 lbs.
WS716200-SC	7/16"	200'	20,400 lbs.
WS12050-SC	1/2"	50'	26,600 lbs.
WS12100-SC	1/2"	100'	26,600 lbs.
WS12150-SC	1/2"	150'	26,600 lbs.
WS12200-SC	1/2"	200'	26,600 lbs.
WS916100-SC	9/16"	100'	33,600 lbs.
WS916150-SC	9/16"	150'	33,600 lbs.
WS916200-SC	9/16"	200'	33,600 lbs.
WS916250-SC	9/16"	250'	33,600 lbs.
WS58100-SC	5/8"	100'	41,200 lbs.
WS58150-SC	5/8"	150'	41,200 lbs.
WS58200-SC	5/8"	200'	41,200 lbs.
WS58250-SC	5/8"	250'	41,200 lbs.
WS34200-SC	3/4"	200'	58,800 lbs.
WS34250-SC	3/4"	250'	58,800 lbs.
WS34300-SC	3/4"	300'	58,800 lbs.

The All-Grip Self-locking Swivel Hook G80 is great for holding up under harsh conditions. Made of steel alloy, this durable hook is meant to last. Being Grade 80, it’s approved for overhead lifting, and it can handle up to 28,300 tons. Check the drop-down menu for more information. Finally, using bronze bushings for easy rotation, you can ensure your load won’t get tangled up.

The All-Grip Fiber Core Winch Cable with Self-Locking Hook is very strong. With a working load limit of up to 16,563 pounds and a minimum break strength as high as 58,800 pounds, you can rely on this to get the job done. Check the chart below for more information,

Note: Special Handling Fees Apply for Specific Items

Durability is important when it comes to your winch lines. That’s why the All-Grip Super Swaged Winch Cable with a Swivel Hook is so great. The winch cable itself offers better resistance to better resistance to crushing and it has a higher break strength. It will last longer than other winch cables.

• 17 options
• Wire rope size: 3/8"-1/2"
• Swivel hook size: 3 Ton - 5 Ton
• IWRC
• 6 x 26 swaged construction
• Flemished Eye
• Made in the USA

Available in the following sizes

Item #	Size	Length
WS38050S-SG	3/8" - 3 Ton Hook	50'
WS38075S-SG	3/8" - 3 Ton Hook	75'
WS38100S-SG	3/8" - 3 Ton Hook	100'
WS38125S-SG	3/8" - 3 Ton Hook	125'
WS38150S-SG	3/8" - 3 Ton Hook	150'
WS716050SZ-SG	7/16" - 4.5 Ton Hook	50'
WS716100SZ-SG	7/16" - 4.5 Ton Hook	100'
WS716150SZ-SG	7/16" - 4.5 Ton Hook	150'
WS716050S-SG	7/16" - 3 Ton Hook	50'
WS716075S-SG	7/16" - 3 Ton Hook	75'
WS716100S-SG	7/16" - 3 Ton Hook	100'
WS716150S-SG	7/16" - 3 Ton Hook	150'
WS12040S-SG	1/2" - 4.5 Ton Hook	40'
WS12050S-SG	1/2" - 4.5 Ton Hook	50'
WS12075S-SG	1/2" - 4.5 Ton Hook	75'
WS12100S-SG	1/2" - 4.5 Ton Hook	100'
WS12150S-SG	1/2" - 4.5 Ton Hook	150'
