Pivot Pin Kits

This is a Pivot Pin Kit for a Century Formula I, Holmes DFT-400, Challenger I-400 (1996 and older), and Century/Champion 10 Series car carrier wheel lifts ('01 and older). This kit includes one

This Pivot Pin Kit is for use with Vulcan 804, 831, 860, 870 and 880 Wrecker Wheel Lifts. This kit also fits all Vulcan Car Carrier Wheel Lifts and Century/Champion 10 Series Car Carrier Wheel Lifts built in 2002 or newer with a Vulcan style crossbar. This Kit has a 1-1/4" diameter pivot pin that is held in place with an allen head bolt and washer on the top.

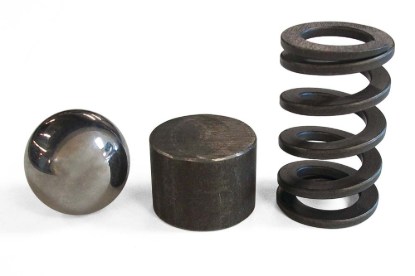

This Detent Kit from Zip's will help to keep the crossbar straight. It fits Vulcan style crossbars, Vulcan Car Carrier Wheel Lifts, and Century Car Carrier Wheel Lifts with Vulcan crossbars. The kit includes a ball, spring, washers, and a threaded plug.

Pivot Pin Kit for Century 5030, 5130, 5230, 7035, 9055 and SDU underlifts with the 5" x 5" crossbar.

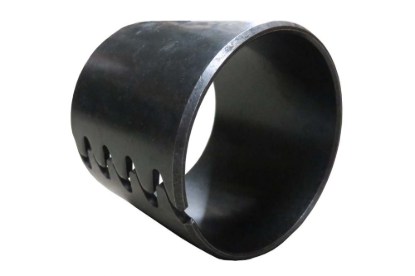

This is a Jerr-Dan Wheel Lift Pivot Pin Bushing. It is used on both wreckers and car carriers. This bushing is for greaseable wheel lifts. The dimensions of this bushing are 3" diameter x 2.75".

This is a Bed Pivot Pin from Miller Industries that is used on the bed of car carriers. It measures 38" long and has a diameter of 1-1/4". This Pivot Pin is used in the tilt frame assembly of many Century, Challenger, Champion, Holmes, and Vulcan Car Carriers. Please see the brochure tab for a list of breakdowns.

Pivot Pin Kit for new style Century 300 series Express wheel lift with recessed pivot pin top plate.

This is a Pivot Pin for the Swing L-Arm on a Wheel Lift Assembly. It is from Miller Industries.

Pivot Pin Kit, Century Formula 6500 and Holmes DFT-650 wheel lifts. Includes (1) 12-0802903 Pivot Pin, (1) 12-0306748 Pivot Pin Bushing, (2) 12-0710092 Thrust Washers, (2) 80013 Pivot Pin Retaining Bolts, (1) 83230 Grease Zerk.

This Pivot Pin Kit so for a Century Express 300 Series Wheel Lift. The kit includes one 12-0803916 Pivot Pin, one 12-0306748 Pivot Pin Bushing, two 12-0710092 Thrust Washers, two 12-0400637 Pivot Pin Retaining Bolts, two 12-0400428 Lock Nuts and one 80013 Grease Zerk.

Pivot Pin Kit for Vulcan 850 and 890 wheel lifts.

This is an aluminum bronze bushing for a wheel lift pivot pin on a Vulcan 807 by Miller Industries.

Pivot Pin Kit, Century Formula I, Holmes DFT-400, and Challenger I-400 wheel lift. Design built after March 1996 up to August 2000. Includes (1) 12-0801073 Pivot Pin, (1) 12-0303403 Pivot Pin Bushing, (2) 12-0303402 Thrust Washers, and (2) 12-0701956 Pivot Pin Retaining Bolts.

This Detent Kit from Zip's will help hold the crossbar straight when it is not loaded. It fits Century and Champion Wheel Lifts. The kit includes a ball, spring and spacer.

Pivot Pin Kit, Century Formula I, Holmes DFT-400, and Challenger I-400 wheel lift. Latest design built after August 2000. Includes (1) 12-0801073 Pivot Pin, (1) 12-0306879 Pivot Pin Bushing, (2) 12-0303402 Thrust Washers, and (2) 12-0701956 Pivot Pin Retaining Bolts.

Please Note: Product Discontinued - ALL SALES FINAL!

Discontinued items are not eligible for return. View Returns Policy

• Product Dimensions: 5.15"L x 5"W x 3.25"H
• Outside Diameter: 3"
• Other Dimensions: distance between two outside holes is 3.32"

Pivot Pin Kit for Century 3224 and 4024 underlifts with the 4" x 4" crossbar.

This Crossbeam Pivot Pin from Miller Industries is used in the Wheel Lift and Slide-In Tire Restraint Assembly of multiple car carriers. These carriers include: Champion Aluminum and Steel Carriers, Century 10 Series Aluminum and Steel Carriers, and Century 15 Series 2 and 3 Car Carriers.

Eagle claw standard pivot pin. * 1in Diameter 4-3/16in length

This Bottom Half Pivot Pin from Miller Industries is used in the assembly of many Miller Wreckers. These include Century, Challenger, and Holmes Wreckers. The bottom half pivot pin is attached on the bottom side of the crossbeam weldment. Please see the brochure tab for a list of breakdowns.

This Bushing from Miller Industries is used on the Wheel Lift and Under Lift Assembly of several Miller Wreckers. These include Century, Challenger and Holmes Wreckers. The Bushing measures 3.75" tall with an outside diameter of 4" and an inside diameter of 3.5", giving it an overall thickness of .25". Please see the features below for a list of wreckers and see the brochure tab for breakdowns.

This is a Pivot Pin Kit for Vulcan 804, 831, 860, 870, 880, wrecker wheel lifts and all Vulcan car carrier wheel lifts 2005 or newer (3.5" crossbar). Also fits Century/Champion 10 series car carrier wheel lifts built in 2005 or later with Vulcan style crossbar. This kit includes one

This detent kit for Century 5030 wreckers and up helps hold the crossbar straight when the underlift is not loaded. Fits Century 5030, 5130, 5230, 7035, 9055 and SDU models.

This Top Half Pivot Pin from Miller Industries is used in the SDU, underlift, and tower assembly of many Miller Wreckers. These Wreckers include Century, Challenger and Holmes Wreckers. The Pivot Pin is secured onto the crossbeam weldment with a screw, washer, and thrust washer. Please see the brochure tab for a list of breakdowns.

Pivot Pin Kit for new style Century 300 series Express wheel lift with recessed pivot pin and 4-hole top plate.

This Pivot Pin Weldment from Miller Industries is used in the wheel lift assembly of Century and Vulcan Wreckers. It is also used in the boom assembly of some Century and Challenger Wreckers. Please see the brochure tab for a list of breakdowns.

This is a pivot pin kit for a Century Formula 6000, 600 Series Wrecker and Century 20 Series (2006 or older) car carrier wheel lift. This kit includes one

Note: Special Handling Fees Apply

This is a crossbar pivot pin for a 3.5" Vulcan Crossbar

This Crossbeam Pivot Pin Kit from Miller Industries is used in the Wheel Lift and Slide-In Tire Restraint Assembly of multiple car carriers. These carriers include: Champion Aluminum and Steel Carriers, Century 10 Series Aluminum and Steel Carriers, and Century 15 Series 2 and 3 Car Carriers.

3" Wheel Lift Pivot Pin for Century F6500 and Holmes DFT 650 Models.

This Pivot Pin from Miller Industries fits a V60 heavy duty Wheel Lift. The pivot pin is 3.5" in diameter and 6.31" long.

This Bed Pivot Pin from Miller Industries is for the bed of car carriers. It is used in the Subframe assembly of Century and Vulcan LCG 12, 16, and Generation II 16 Series Car Carriers. Please see the brochure tab for a list of breakdowns.

This is a Miller replacement pivot pin, W/L boom hinge 1.23. Carrier 38 x 1-1/4.

This is a replacement pivot pin for Century and Holmes Autoload wreckers by Miller Industries. This pivot pin will fit the Century Modular Midnight Express, Holmes 220 Snatcher, and 440SL light duty wreckers. To view part schematics please click on the Brochures tab.

This Pivot Pin Kit is for a Century Formula I early style wheel lift. The kit includes one 12-0301486 snap ring, one 12-0306748 bronze bushing, one 12-0702141 pivot pin, and two 12-0703640 thrust washers.

This Pivot Pin Weldment from Miller Industries is used on the Wheel Lift and Underlift Assembly of Century Wreckers. These include 614 Formula IIT and Modular 400/600 Wreckers. See the brochure tab for breakdowns.

This is a Pivot Pin on the wheel lift assembly for 10 Series, 14 Series, 16 Series, and 20 Series Chevron Car Carriers. It is from Miller Industries.

Wheel Lift Rebuild Kit, Century Formula 6500 and Holmes DFT-650 wheel lifts. Kit includes WL-6500K1, WL-6500CPK1, WL-6500PK1, and WL-6500DK1 kits.

This Cross Tube Pivot Pin from Miller Industries is used in the wheel lift assembly of Century 20 Series Car Carriers. The pivot pin goes on top of the inner cross bar weldment during assembly. Please see the brochure tab for breakdowns.

Pivot Pin Kit for Holmes DFT-200 wheel lift. Kit includes (1) GR-63 Pivot Pin, (1) GR-232 Pivot Pin Bushing, (1) GR-50 Pivot Pin Retainer Plate, and (2) DE-524 Button Head Screws.

Pivot Pin Kit, Challenger I-600 wheel lift. Includes (1) 12-0802352 Pivot Pin, (1) 12-0302248 Pivot Pin Bushing, (2) Thrust Washers, and (1) 12-0400278 Pivot Pin Retaining Bolt.

Pivot Pin Kit, Challenger I-500 wheel lift with 2" x 3" crossbar. Includes (1)

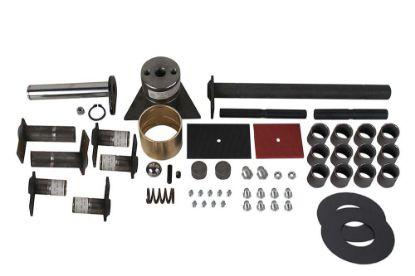

Wheel Lift Rebuild Kit, Century Formula I, Holmes DFT-400, and Challenger I-400 wheel lifts built after March 1996. Kit includes WL-300K2, WL-300CPK1, WL-300PK2, and WL-300DK1 kits.

Cylinder pin Kit, Century Formula 6500 and Holmes DFT-650 wheel lifts. This kit includes all of the pins that hold the tilt cylinders, the lift cylinder, and the upper arms, the hardware to hold the hold pins, new bushings for the tilt cylinders pins, new bushings for the upper arm pins, and grease fittings.

This Lift Bar Pivot Pin from Miller Industries has a diameter of 3.5" and a length of 6".

Pivot Pin Kit, Challenger I-500 wheel lift with 3" x 3" crossbar. Includes (1)

Crossbar pivot pin bushing for Jerr Dan low profile carriers. Does not fit standard carriers.

This is a replacement Retaining Pin from Miller Industries.

This is the boom pivot pin wedment for a Vulcan 880/890 Wrecker by Miller Industries.

This Bed Pivot Pin from Miller Industries us used on the bed of car carriers. It measures 38" long and has a diameter of 1-1/2". This Pin is use in the tilt frame assembly of Century and Vulcan 15 Series Car Carriers. Please see the brochure tab for a list of breakdowns.

This detent kit from Zip's will help hold the crossbar straight when it is not loaded. The kit is for Century Formula 6000 and Century 20 Series Car Carrier Wheel Lifts that were made in 2006 or older. The kit includes a ball, pin, and spacer.

This is a Miller pad - detent ball.

This is a Pivot Pin Kit for a Century Midnight Express 300 Series by Miller Industries. This kit will provide you with everything you need to replace your old worn out pivot pin on your wrecker's wheel lift.

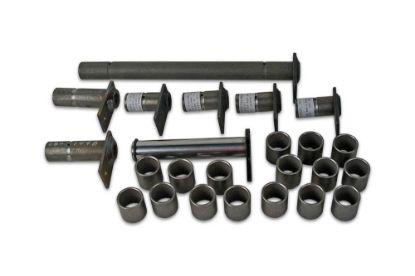

Cylinder Pin Kit, Century Formula I, Holmes DFT-400, and Challenger I-400 wheel lifts. This kit includes all of the pins that hold the tilt cylinders, the lift cylinders, and the upper arms, the hardware to hold the hold pins, new bushings for the tilt cylinders pins, new bushings for the upper arm pins, and grease fittings.

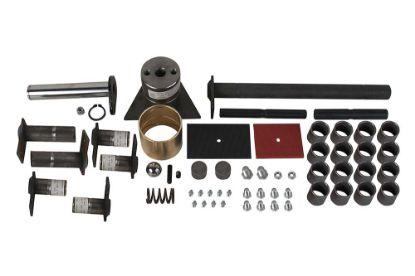

Wheel Lift Rebuild Kit, Century Formula I, Holmes DFT-400, and Challenger I-400 wheel lifts built before March 1996. Kit includes WL-300K2, WL-300CPK1, WL-300PK2, and WL-300DK1 kits.

This is a replacement Roller Bearing for the roller bearing assembly on the underlift of a Century 1040 SDU heavy duty wrecker by Miller Industries. This is the bearing used in the roller bearing assembly, each assembly takes 2 bearings. In total there are 8 roller bearings on these super duty underlifts. To view the specific models this bearing fits, see Features below. To view the part schematics, see the Brochure tab.

Pivot Pin Kit for Holmes DFT-100 wheel lift. Kit includes (1) GR-63 Pivot Pin, (1) GR-232 Pivot Pin Bushing, (1) GR-50 Pivot Pin Retainer Plate, and (2) DE-524 Button Head Screws.

This is a replacment pivot pin bottom from Miller Industries.
